Oki MC562w Maintenance Manual

44952001TH Rev.2
4-43
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS
③
-1 44529501PA ADF-Assy
③

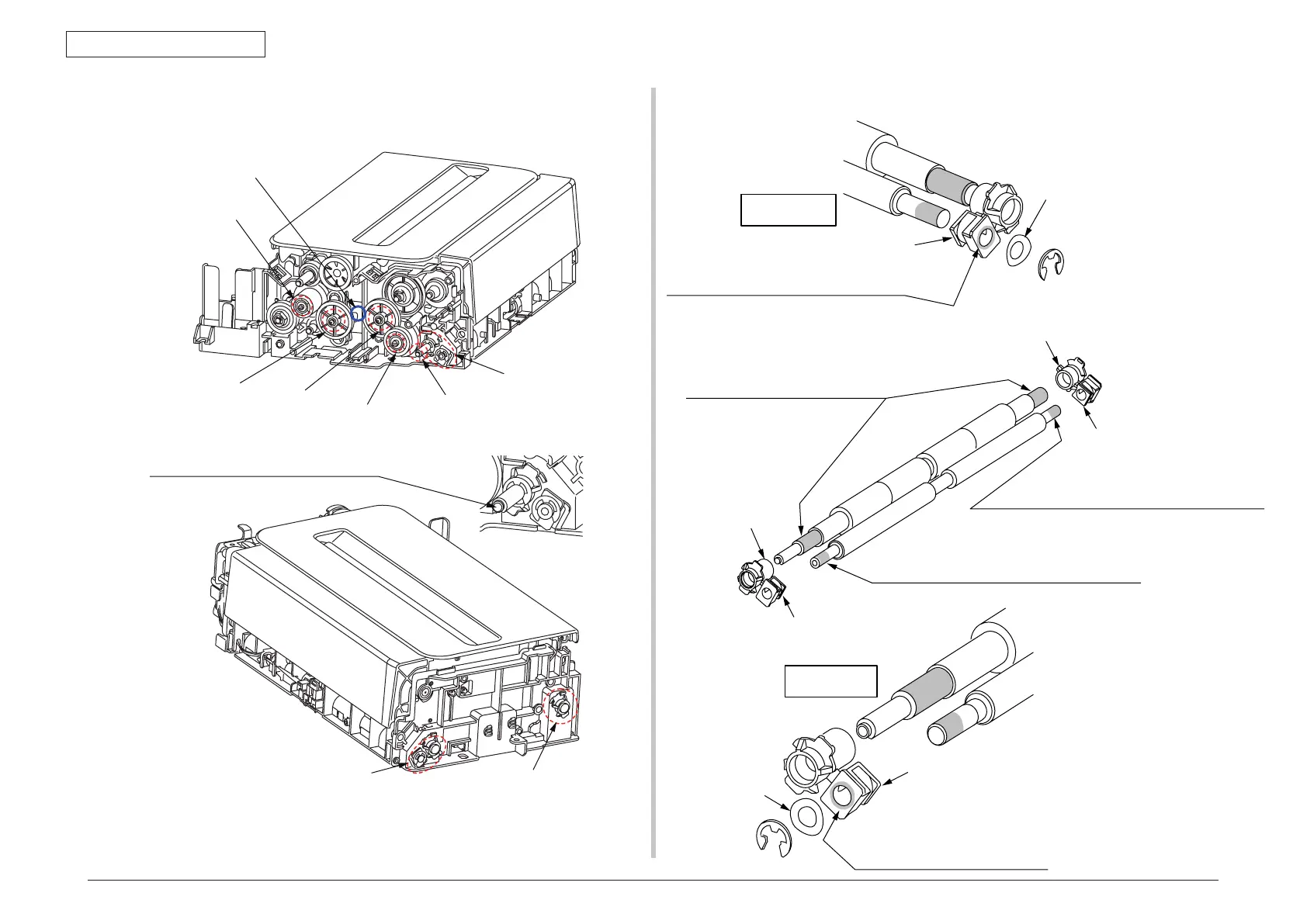

-2 Portion A and F
EM-30LP Class C
Apply a normal amount of MOLYKOTE
(EM-30LP) to the hatched area.
EM-D110 Class C
Apply a normal amount of MOLYKOTE
(EM-D110) to the hatched area.
(all circumference of shaft)
EM-30LP Class C
Apply a normal amount of MOLYKOTE
(EM-30LP) to the hatched area.
(all circumference of shaft)
GE-334C Class C
Apply a normal amount of
FLOIL (GE-334C) to the hatched area.
(all circumference of shaft)
GE-334C Class C
Apply a normal amount of FLOIL
(GE-334C) to the hatched area.
Bearing-Regist
Bearing-Shaft
Bearing-Shaft
Bearing-Regist
Bearing-Regist
Wave-Washer
Bearing-Regist
Wave-Washer
Detail Portion F
Detail Portion F
Portion F
Portion I
Portion D
Portion C
Portion B
Detail Portion H
Portion H
Portion A
Portion E
Motor-Z20
GE-334 Class B
Apply a normal amount of FLOIL
(GE-334C) to the shaft point of contact.
(FG sliding surface).
