4.REPLACEMENT OF PARTS
④

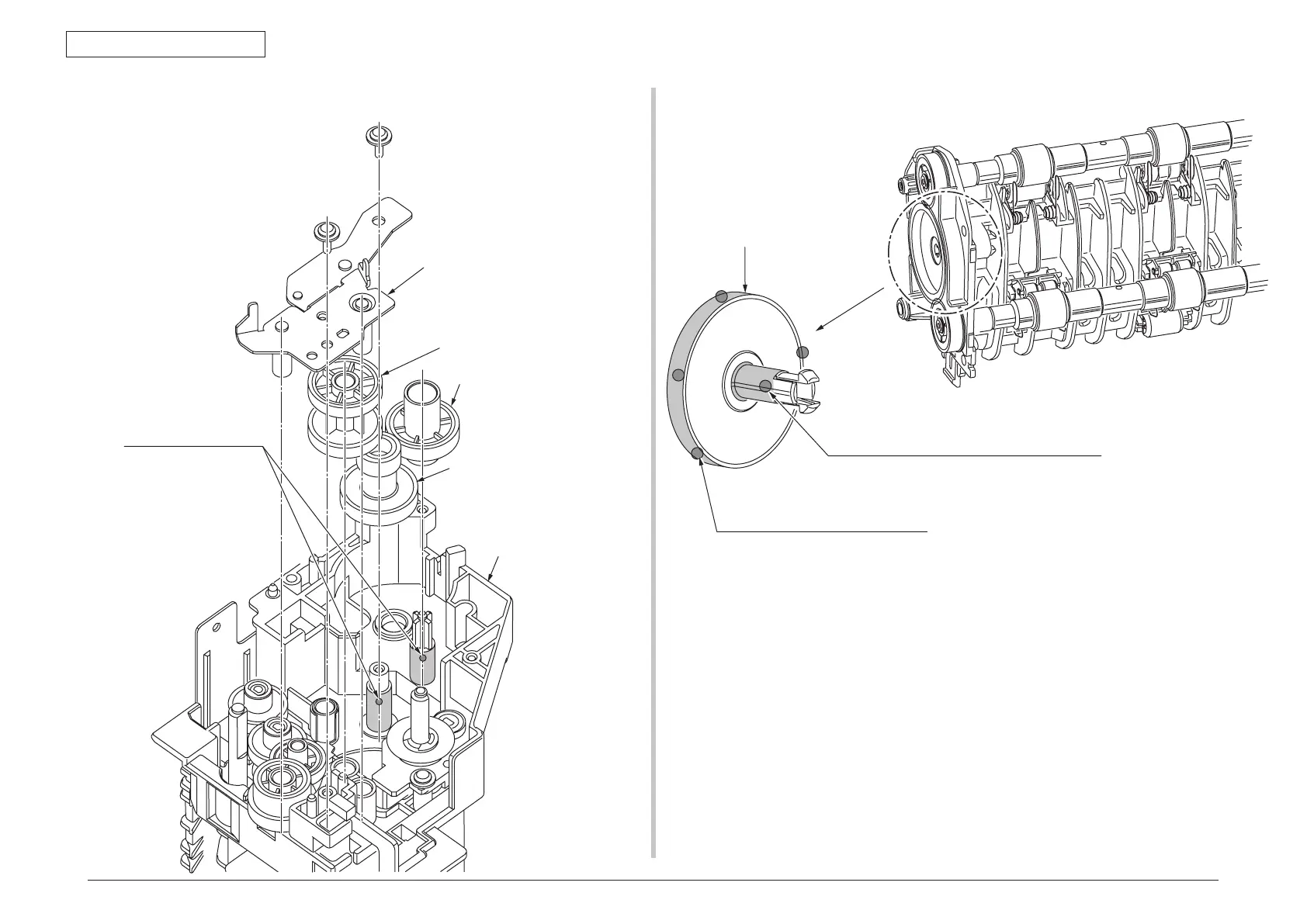

-5 44452701PA Front Assy.-Reg/Hop
Plate-Feed-BCaulking
Gear-Idle-Z35
Gear-Idle-MPT-Z35
Gear-Reduction-MPT-Z37-20
FrameAssy.-Regist
EM-30LP Class C
Apply a normal amount of
MOLYKOTE (EM-30LP) to
the hatched areas
(Post end surface side).
⑤
44364101PAEjectAssy
Gear-IdleExit(Z38)
EM-30LP Class C
Apply a normal amount of MOLYKOTE (EM-
30LP) to surface of the post (bearing portion), the
flange portions.
EM-30LP Class B x4
Apply a normal amount of
MOLYKOTE (EM-30LP) to
the whole circle of gear teeth.
Of 4pcs
