Oki MC562w Maintenance Manual

44952001TH Rev.2
4-58
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS
⑩

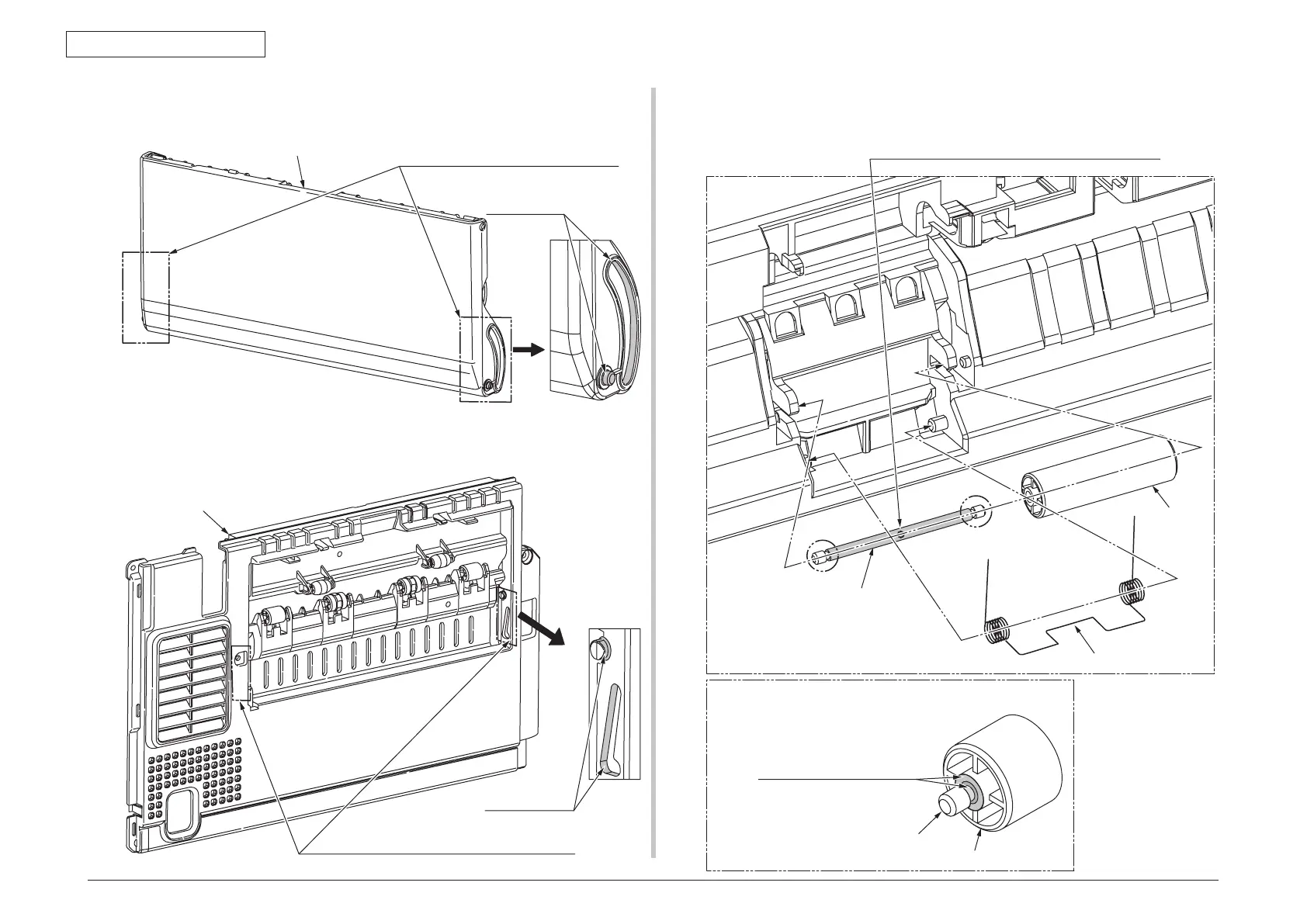

-1 44453701PA Cover-Assy.-Rear
⑩
-2 44453701PA Cover-Assy.-Rear
Stacker-FUBase
SF-133 Class B
Apply a normal amount of HANAL (SF-133)
to the hatched areas.
Leave it for about 3 minutes (drying time) after painting HANAL SF-133, and then
assemble the Cover-Assy.-Stacker.
Hatched areas
Cover-Rear
SF-133 Class B
Apply a normal amount of HANAL (SF-133)
to the hatched areas.
Hatched areas
⑪
44359201PA Frame-Assy.-MPT
Note:1
Note:1
Note:1
Roller-Pitch
Shaft-IdleDup
Roller-Pitch
Shaft-Idle-Dup
Spring-Torsion-Pitch
EM-30LP Class A
Apply a normal amount of
MOLYKOTE (EM-30LP) to the
hatched areas.
(Side of roller and ditch of shaft)
(The other side is also the same. :
Two places in total)
EM-30LP Class B
Apply a normal amount of MOLYKOTE (EM-30LP) to
the hatched areas. (Center of shaft)
