(6) Duplex printing system (paper flipping and returning to the paper feed route)
1. In a certain period of time after the fuser motor starts running
counterclockwiseand therearend ofpaperbeing fedpassestheeject
sensor, the fuser motor starts running clockwise. (It changes from the state
shown in Figure 2-7 to the state shown in Figure 2-8.)
2.Asaresultofthat,theejectrollersstartrotatinginthereversedirection,and
the paper is flipped and carried to the duplex unit.
3. When the duplex unit clutch becomes on, the paper is transferred by the
duplex unit transport rollers.
4. Inacertainperiodoftimeaftertherearendofthepaperpassestheeject
rollers, the fuser motor starts running counterclockwise, and as a result of
this,theejectrollerscancarrythenextpapertotheexit.(Itchangesfrom
the state shown in Figure 2-8 to the state shown in Figure 2-7.) (The duplex
unit transport rollers rotate in the same direction regardless of the running
direction of the motor.)
5. The paper that is carried by the duplex unit transport rollers comes back to
the route for paper feeding from a tray. After that, the paper is handled in
the same way as paper fed from a tray for simplex printing.
Fuser unit
Heat roller (drive)
Fuser motor (clockwise)
Eject sensor
Duplex unit transport roller
Heat roller (drive)
Eject sensor
Duplex unit clutch
Eject roller (drive)
Eject roller (drive)
Fuser unit
Fuser motor (counterclockwise)
Duplex unit transport roller
Duplex unit clutch

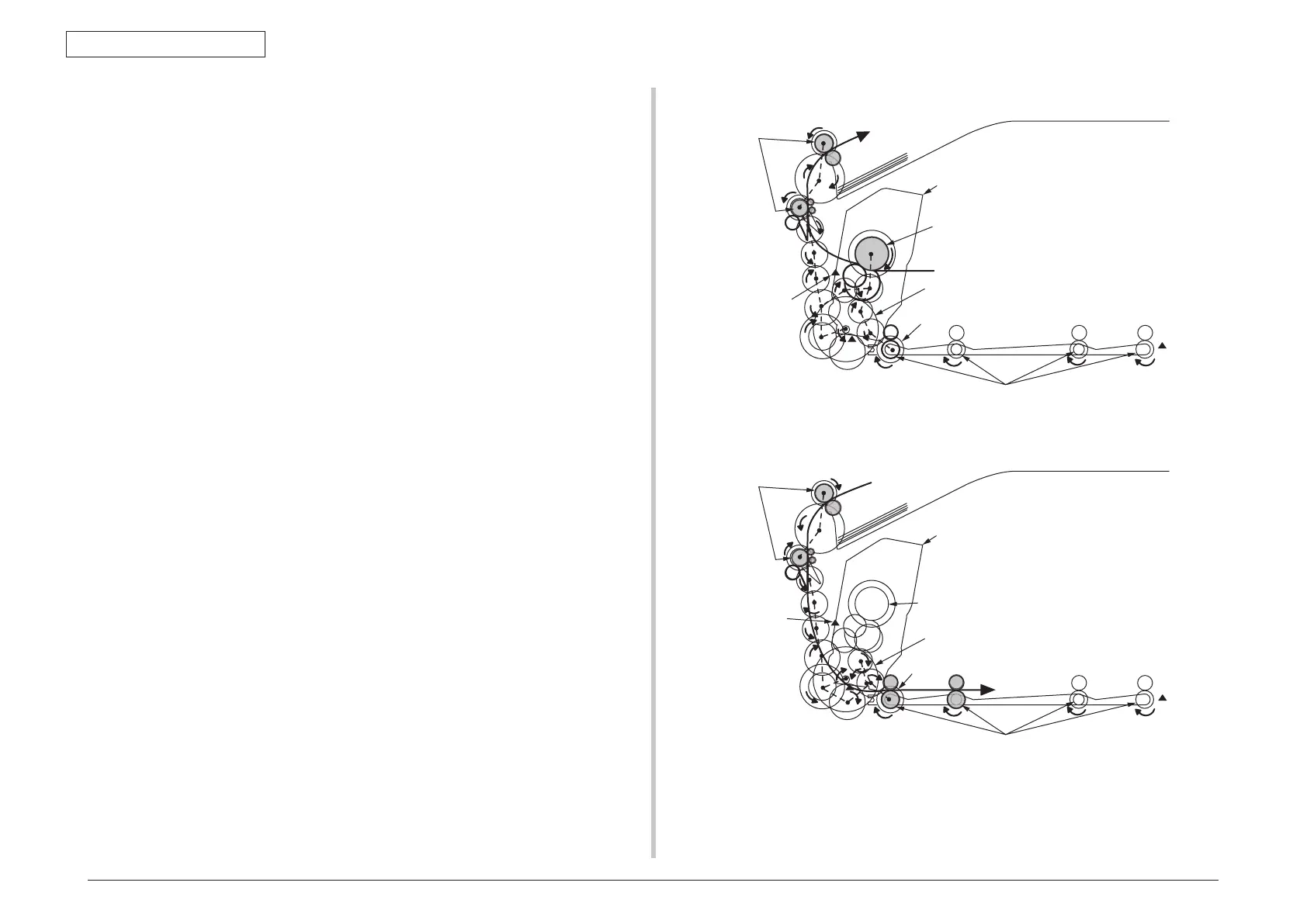

Figure 2-7
Figure 2-8
