2. DESCRIPTION OF OPERATION
Outline of density correction
Density is corrected by reading correction patterns, which are printed on the belt, by use of
the density sensor located inside the sensor shutter under the belt unit.
Automatic start timing of density correction:
• Whentheenvironmentatpower-onisdrasticallydifferentfromtheenvironmentofthe
previous correction
• WhenoneormoreoffourIDcountvaluesatpower-onindicatesthatthecorresponding
IDs are almost new
• WhenanIDcountafterthepreviouscorrectionexceeds500
• WhenoneormoreIDisreplacedwithanewone
• Whenthebeltisreplacedwithanewone
• Whenatonerlowortoneremptyerrorisclearedbyareplacementofatoner
cartridge in a toner low or toner empty state
A correction error may be issued due to an inadequate toner amount of a pattern generated,
a sensor stained with toner, deficient opening/closing of the shutter, or for other reasons.
However, even if such a density correction error is issued, it is not indicated on the operator
panel. Therefore, it is necessary to perform forcible color registration correction in the self-
diagnostic mode (Section 5.3.2.7) to check the error indication.

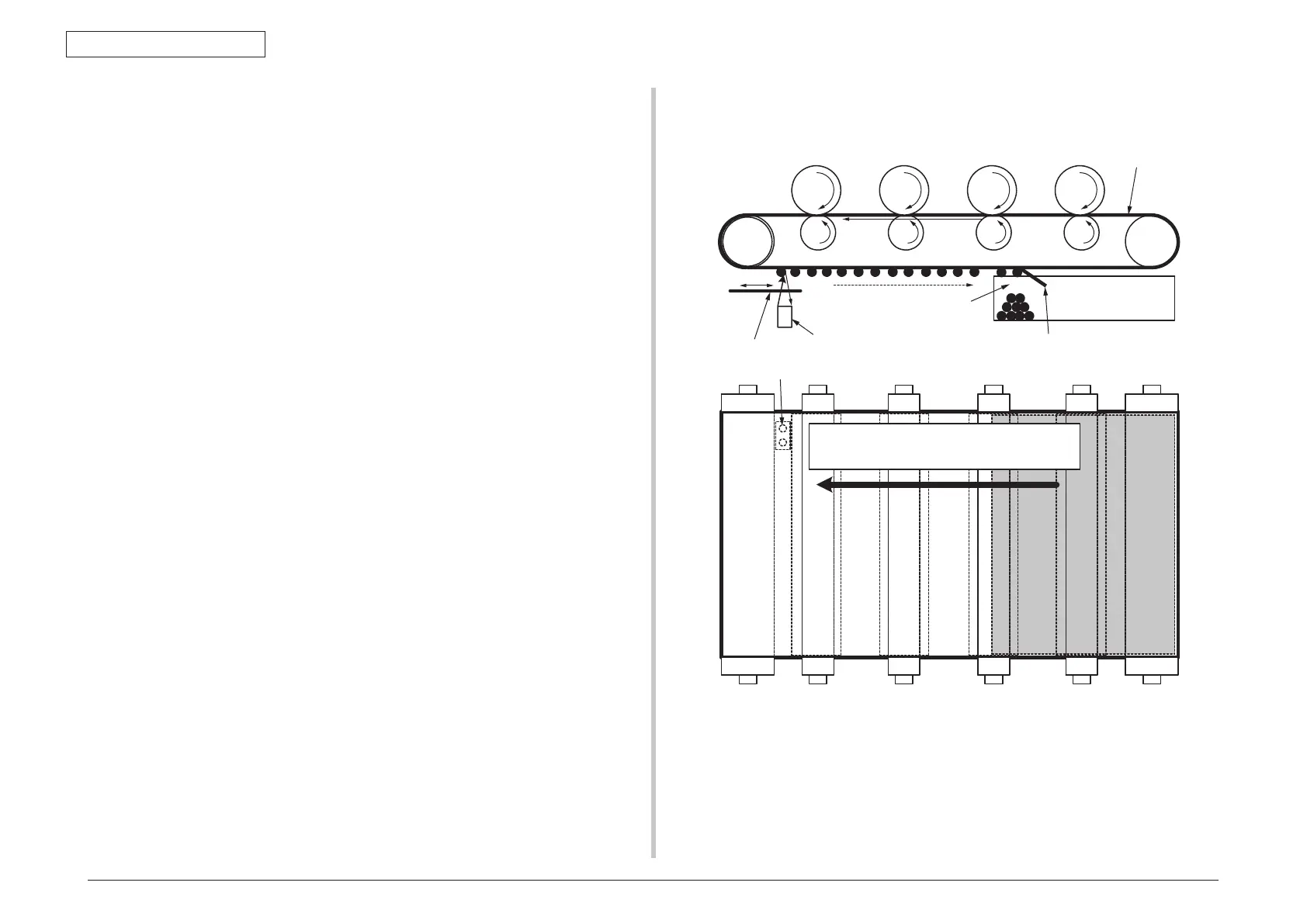

Density correction pattern
Sensor shutter
Belt waste toner box
Belt cleaning blade
Density sensor
Density sensor
