(3) Detaching and refitting the right upper cover
Procedure
1. Open the front cover.
2. Remove the top cover assembly.
(See page 1-5-3)
3. Remove the slot cover.
(See page 1-5-3)
4. Remove two screws.
5. Release hook A.
6. Release two hooks B by sliding the righ
t
u
pper cover upward and then remo
ve
the
right upper cover.

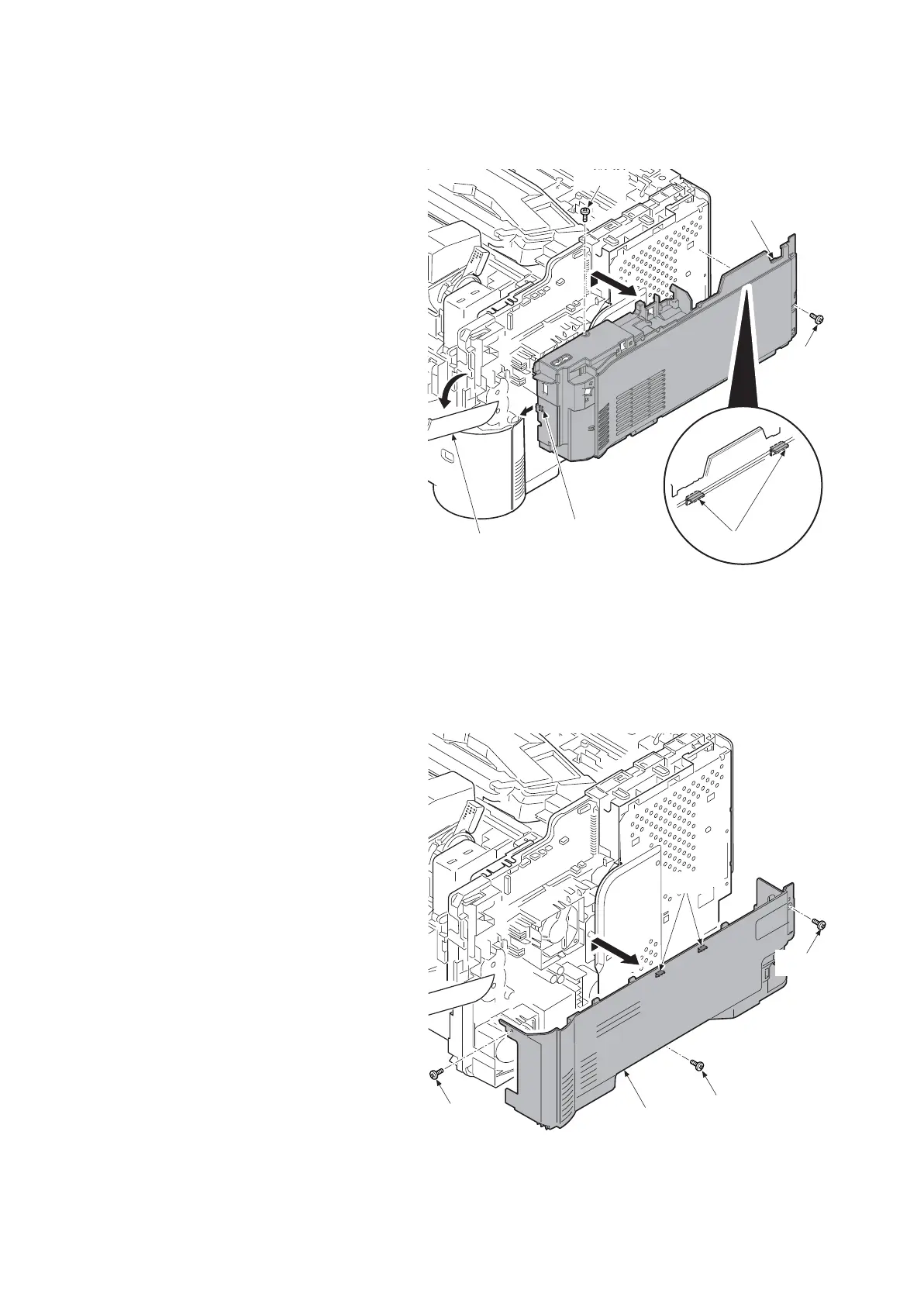

Figure 1-5-5
(4) Detaching and refitting the right lower cover
Procedure
1. Remove the right upper cover.
(See page 1-5-4)
2. Remove the inlet cover.
(See page 1-5-4)
3. Pull out the cassette.
4. Remove three screws.
5. Release two hooks by sliding the righ
t
low
er cover upward and then
remove
the right
lower cover.
Figure 1-5-6
Right upper
cover
Front cover
Screw
Screw
Hooks B
Hook A
Right lower cover
Screw
Screw
Screw
Hooks
