1-5-5 Drum section
(1) Detaching and refitting the drum unit
Procedure
1. Remove the developer unit.
(See page 1-5-13)
2. Remove the lock lever L.
3. Remove the lock lever R by
sliding
ba
ckward.
4. Remove the drum unit by slidin
g
for
ward.
5. Check or replace the drum unit and re
fit
a
ll the removed parts.

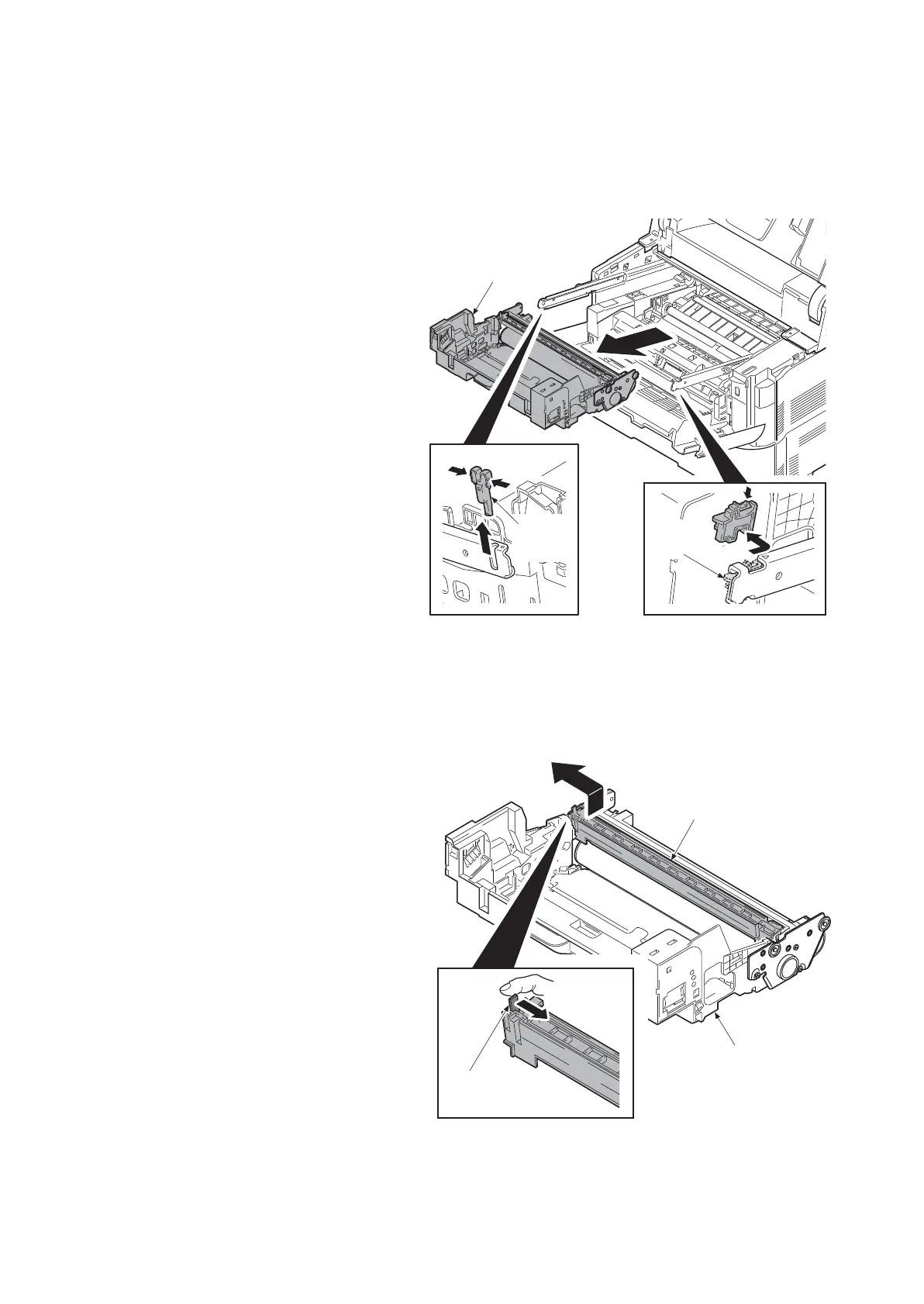

Figure 1-5-23
(2) Detaching and refitting the chager roller unit
Procedure
1. Release the lock lever and then remo
ve
the c
hager roller unit.
2. Check or replace the charger roller
unit
an
d refit all the removed parts.
Figure 1-5-24
Drum unit
Lock
lever L
Lock
lever R
Durm unit
Lock lever
Main chager roller unit
