Olivetti PG L2555 - 1-5-9 ejection section

1
-5-21
1-5-9 ejection section
(1) Detaching and refitting the ejection unit
Procedure
1. Remove the top cover assembly.
(See page 1-5-3)
2. Remove the right upper cover and th
e
rig
ht lower cover. (See page 1-5-4)
3. Remove the left upper cover.
(See page 1-5-5)
4. Remove the controller box cover.
(See page 1-5-25)
5. Pull the connector out and then rele
ase
th
e wires from Hooks.
6. Remove three screws and then remove
the ejection unit.
7. Check or replace the ejection unit an
d
refit all the
removed parts.
*1: 60/55/50 ppm model only
*2: 45 ppm model only

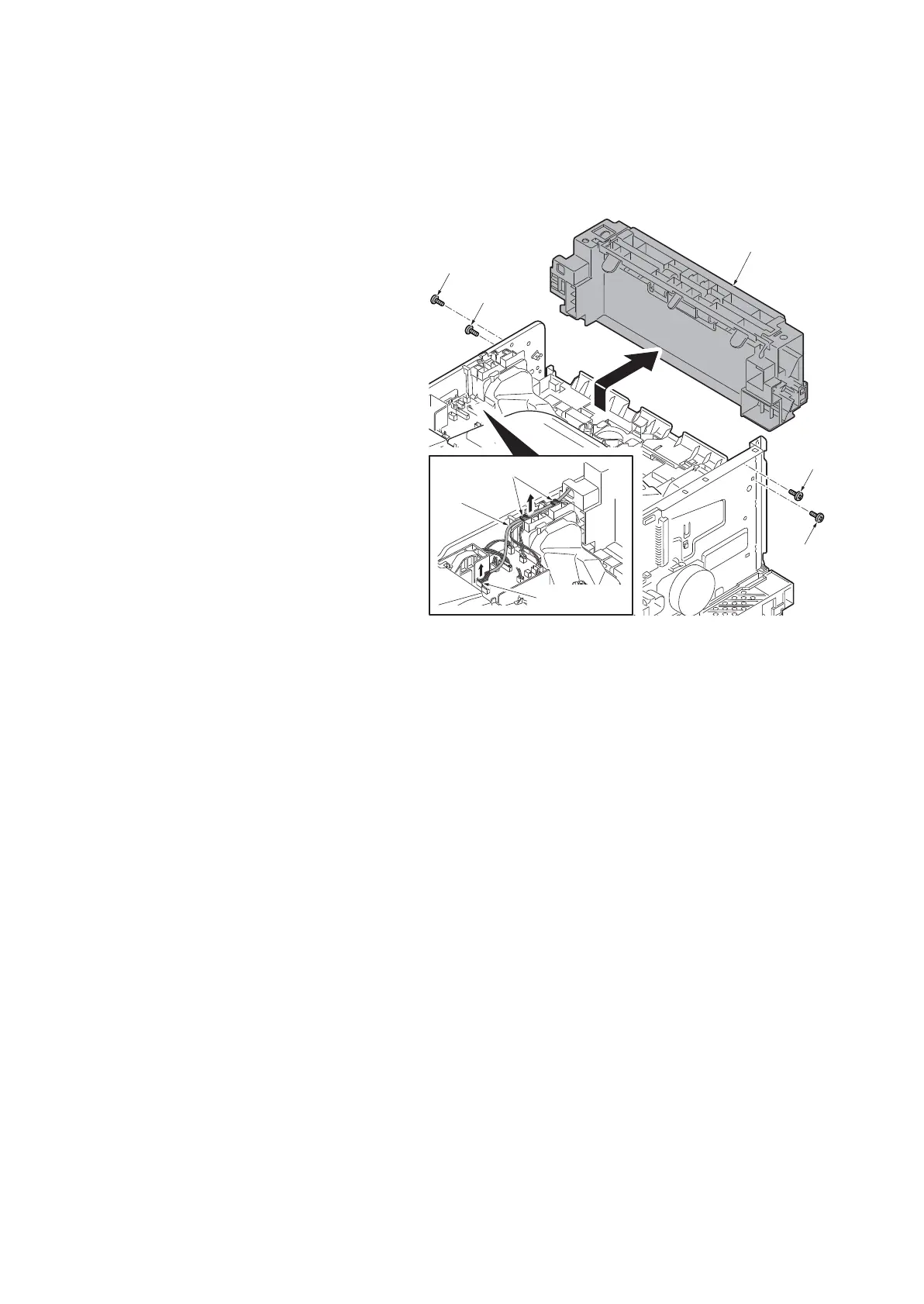

Figure 1-5-32
*2
Screw
*1
Screw
Ejection unit
Screw
Screw
Connector
Hooks
Wires
