(6) Detaching and refitting the operation PWB
Procedure
1. Open the top cover.
2. Remove the JAM processing procedur
e
sheet.
3.
Remove three screws.

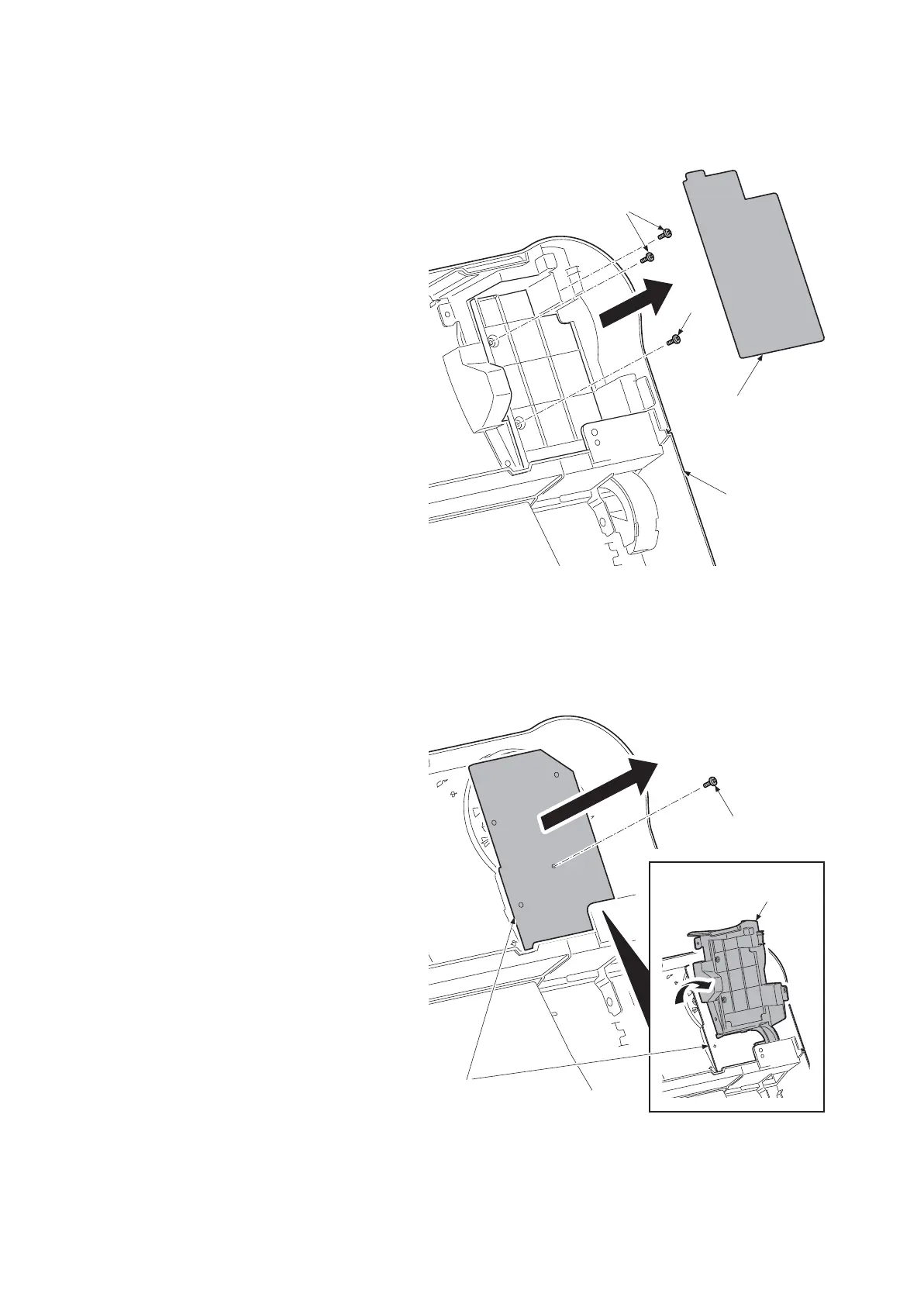

Figure 1-5-45
4. Rotate the operation PWB cover.
5. Remove the screw and then remo
ve the
op
eration PWB.
6. Check or replace the operation
PWB
an
d refit all the removed parts.
Figure 1-5-46
JAM processing
procedure sheet
Screws
Screw
Top cover
Operation panel PWB
Operation panel
PWB cover
Screw
