1
-5-19
1-5-8 Fuser section
(1) Detaching and refitting the fuser unit
Procedure
1. Remove the rear cover.
(See page 1-5-6)
2. Remove the screw and then remo
ve the
co
nnector cover A.
3. Pull two connectors out.

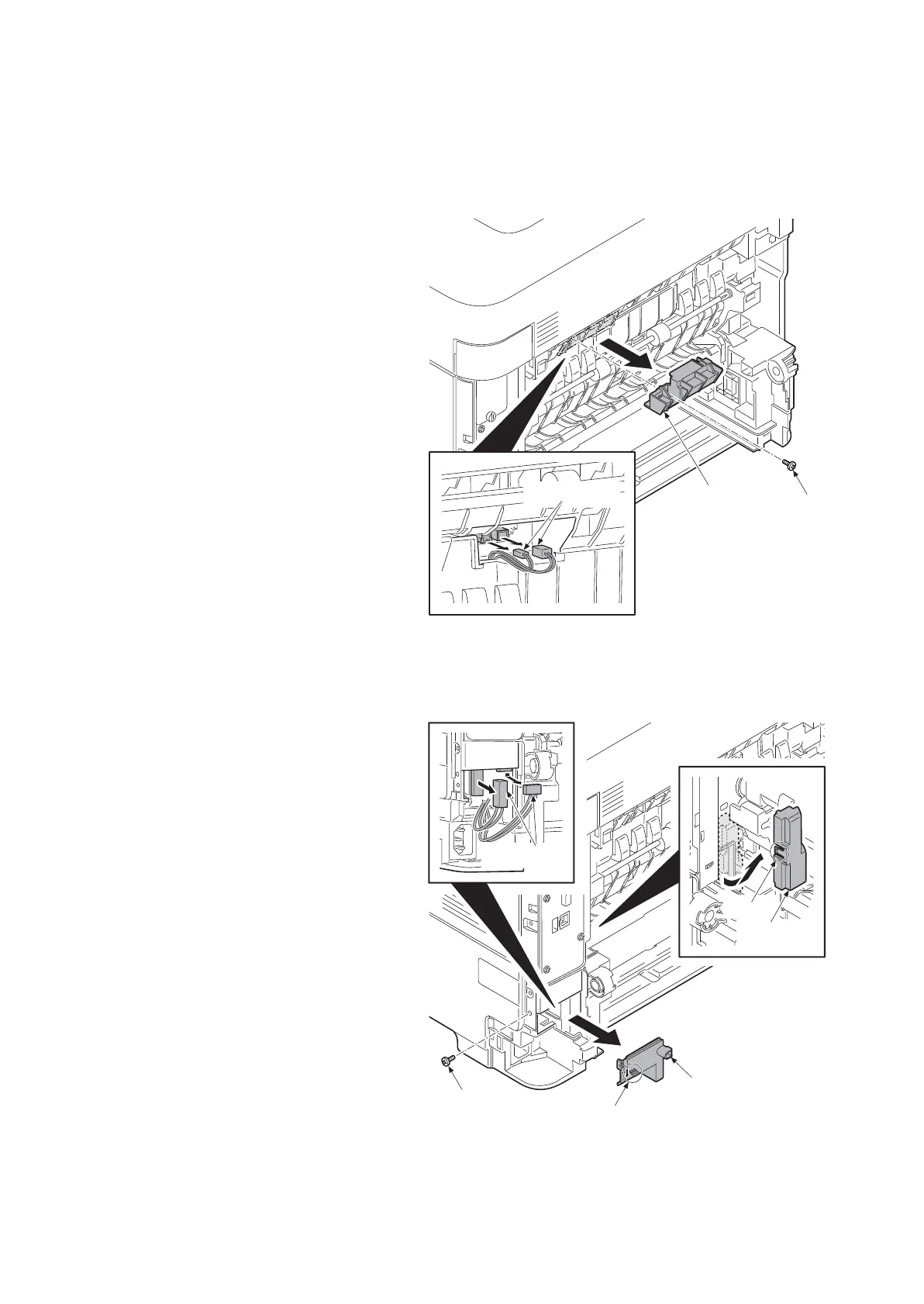

Figure 1-5-29
4. Remove the connector cover B by
releasing the hook.
5. Remove the screw of connector co
ver
C.
6.
Remove the connector cover
C by
re
leasing the hook.
7. Pull two connectors out.
Figure 1-5-30
connector
cover A
Connectors
Screw
Screw
Connector
cover C
Hook
Connectors
Hook
Connector
cover B
To Next Page
