1-
5-9

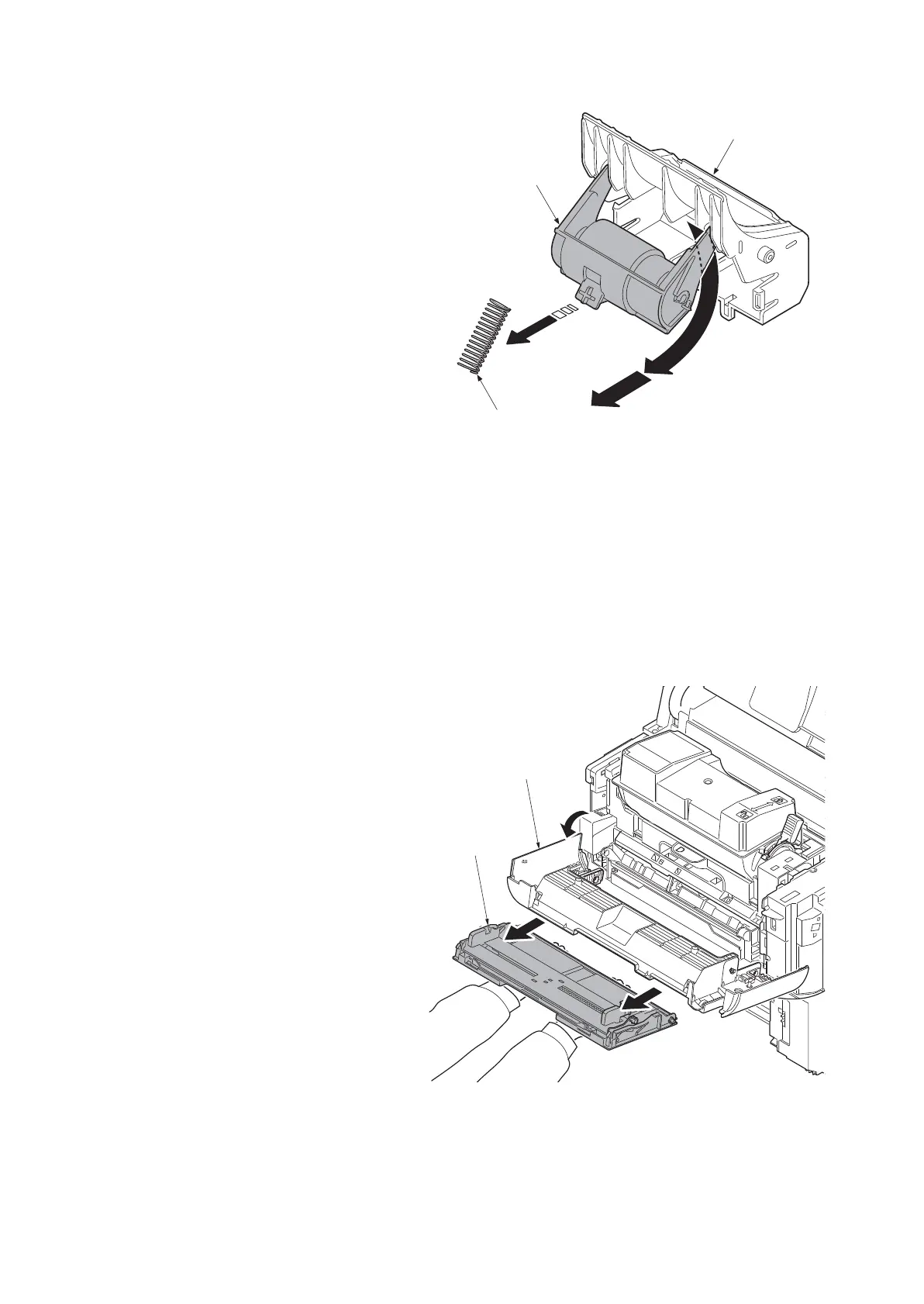

2. Remove the spring.
3. Remove the retard roller holder by
rotating.
4. Check or replace the retard roller and
refit all the removed parts.
Figure 1-5-14
(3) Detaching and refitting the MP paper feed pulley
Procedure
1. Open the top cover.
2. Open the front cover.
3. Remove the MP tray from the printe
r
whil
e bending
it.
Figur
e 1-5-15
Retard roller guide
Spring
Retard roller holder
MP tray
Front cover
