Olivetti PG L2555 - 1-5-11 Others

1
-5-29
1-5-11 Others
(1) Detaching and refitting the main driving motor unit
Procedure
1. Remove the right upper cover.
(See page 1-5-4)
2. Remove the right lower cover.
(See page 1-5-4)
3. Pull the connector out from the motor
and then release the wires from wir
e
ho
lder.
4. Remove three screws and then remove
the main driving motor unit.
5. Check or replace the main driving moto
r
unit
and refit all the removed parts.

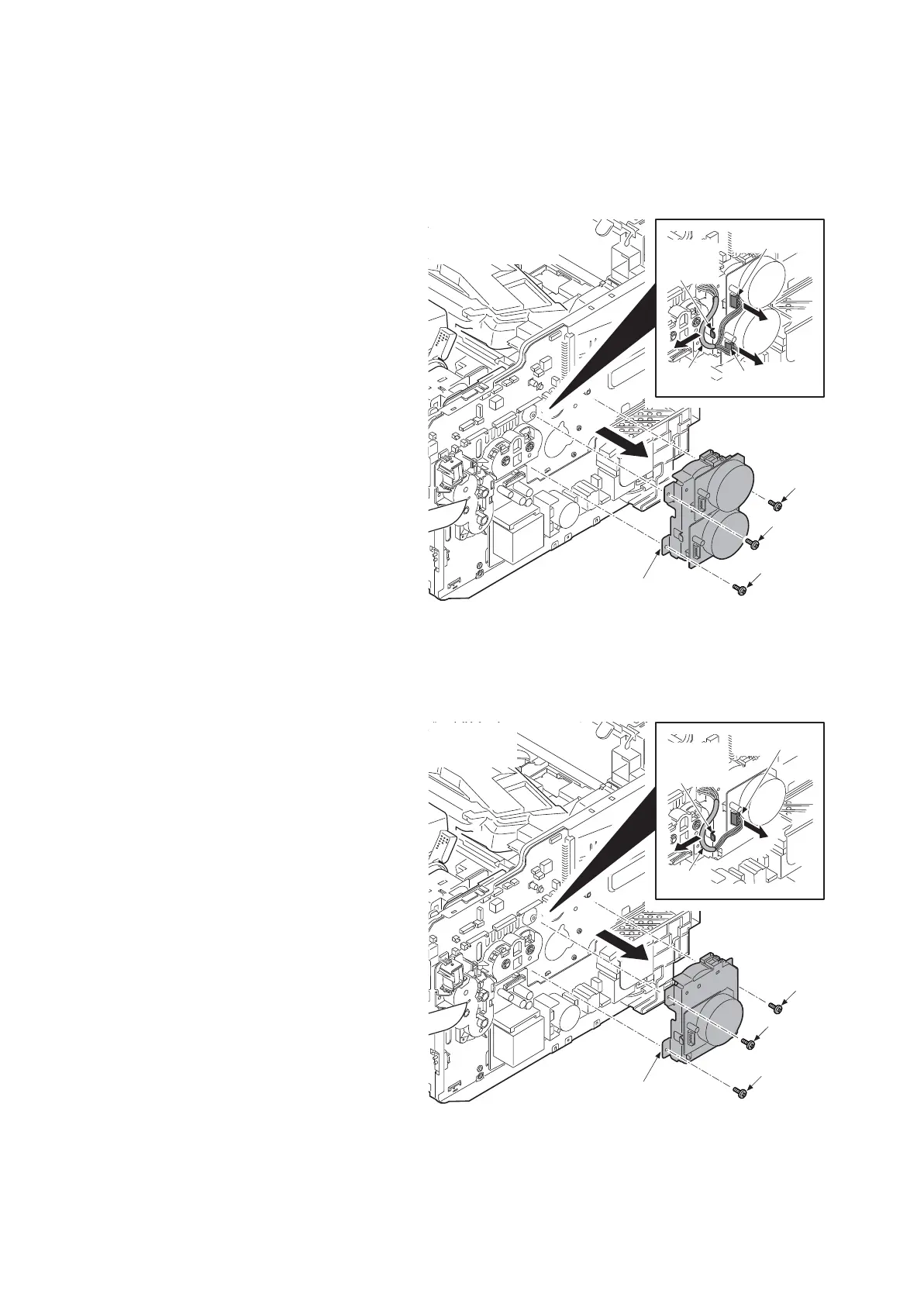

Figure 1-5-47
Figure 1-5-48
Connector
Wires
Wire
holder
Main driving
motor unit
Screw
Screw
Screw
Connector
(60/55/50 ppm)
Wires
Wire
holder
Main driving
motor unit
Screw
Screw
Screw
Connector
(45 ppm)
