1-
5-5

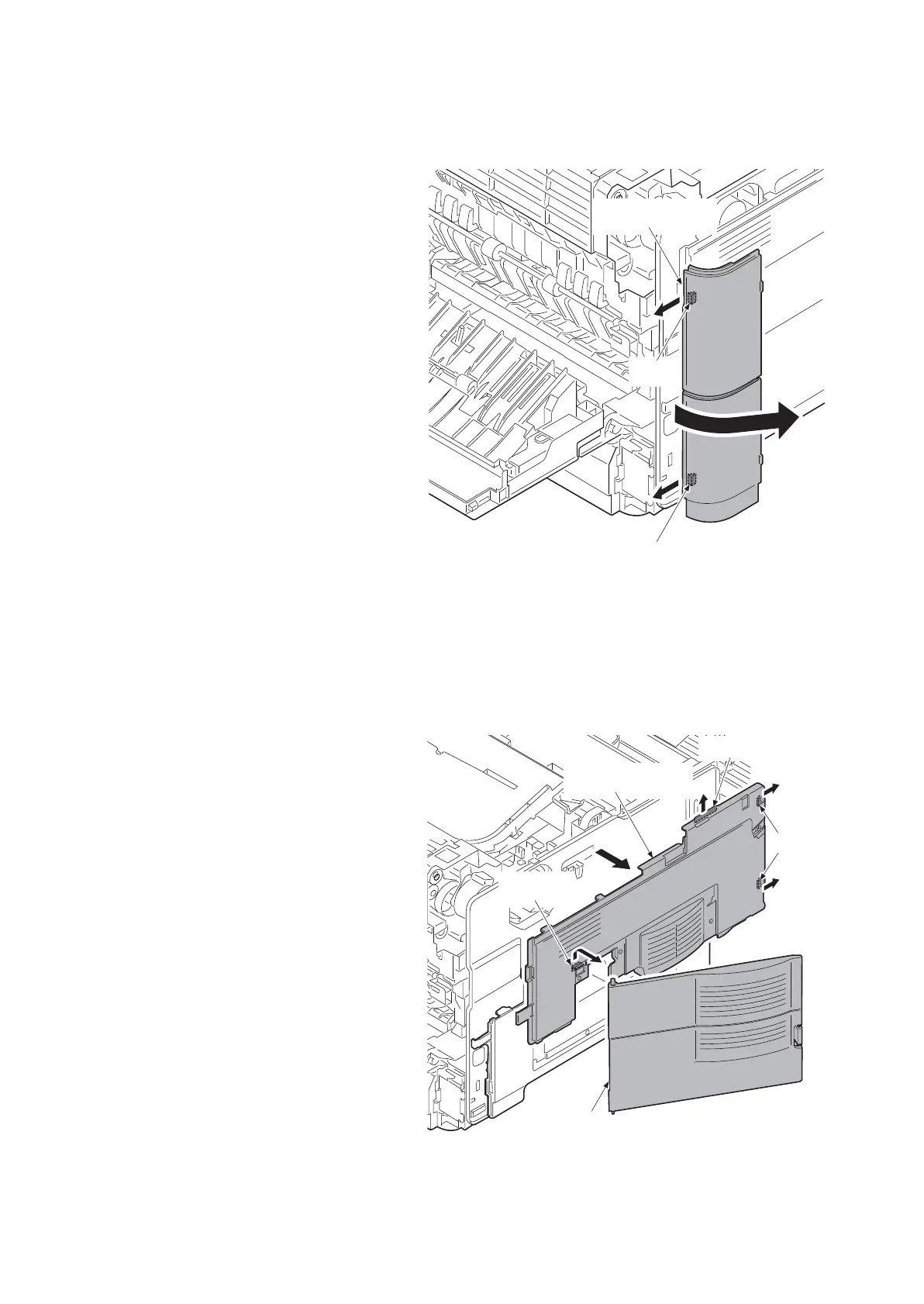

(5) Detaching and refitting the rear left cover
Procedure
1. Open the rear cover.
2. Release two hooks of the rear left cove
r
whil
e pulling forward.
3. Remove the rear left cover by rotating.
Figure 1-5-7
(6) Detaching and refitting the left upper cover
Procedure
1. Open the front cover.
2. Remove the top cover assembly.
(See page 1-5-3)
3. Remove the rear left cover.
(See page 1-5-5)
4. Release the hook A by sliding the left
upper cover upward.
5.
Rele
ase the hook B and hook C an
d
then remove
the left upper cover
and
th
e waste toner box cover.
(See page 1-5-5)
Figure 1-5-8
Rear left cover
Hook
Hook
Left upper cover
Hook A
Waste toner box cover
Hook B
Hook C
To Next Page
