1-5-6 Transfer/separation section

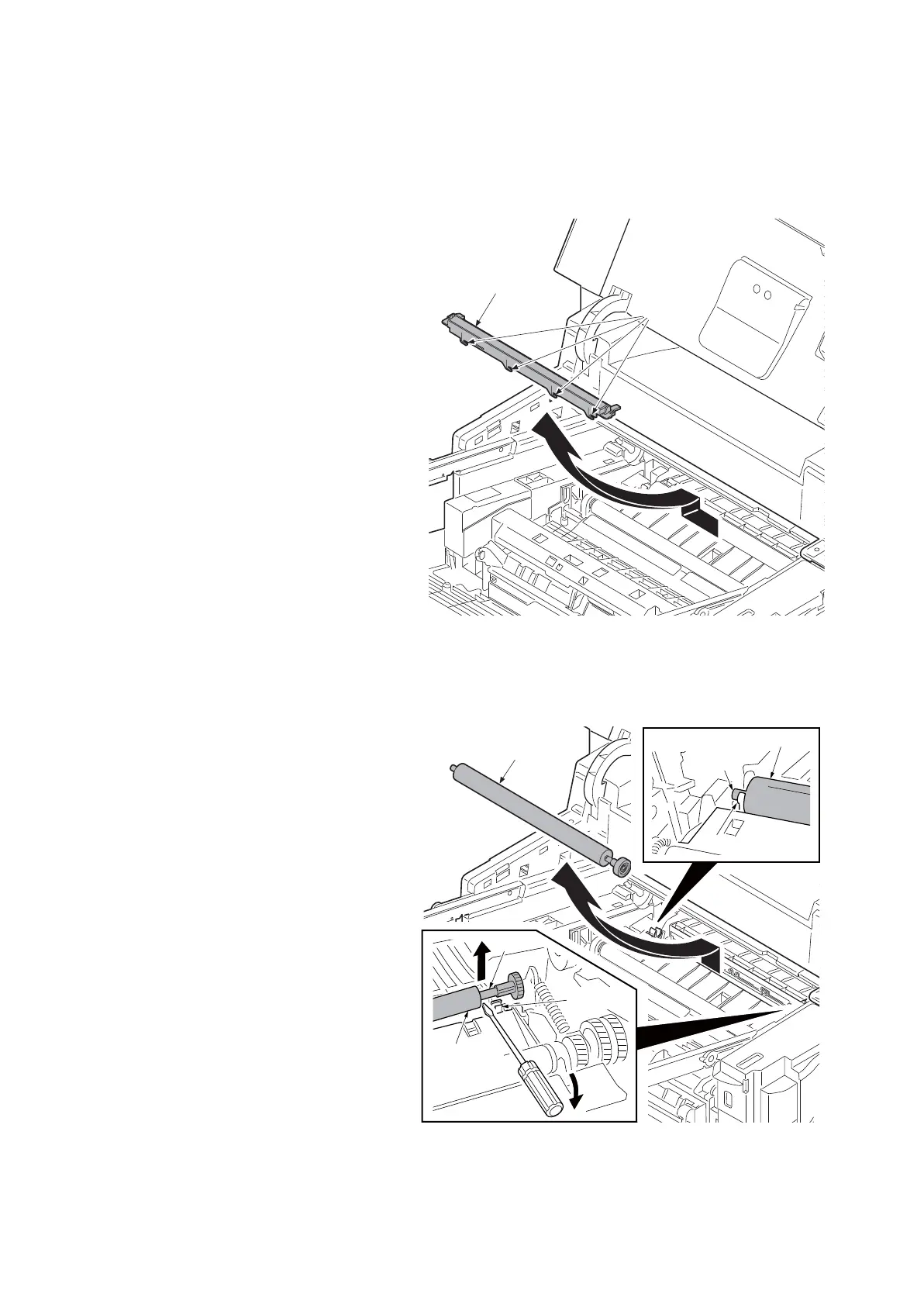

(1) Detaching and refitting the transfer roller assembly
Procedure
1. Release four hooks by sliding to left the
paper chute guide.
2. Remove the paper chute guide upward.
Figure 1-5-25
3. Remove the axes of transfer roller from
each bush.
4. Remove the transfer roller asse
mbly
up
ward.
5. Check or replace the transfer roller
assembly and refit all the removed
parts.
Figure 1-5-26
Paper chute guide
Hooks
Bushing
Axis
Transfer
roller
Axis
Transfer roller
Bushing
Transfer roller
assembly
