1-4-2 Assembly and disassembly
(1) Removing the conveying roller, paper feed roller and pickup roller
Procedure
1. Remove the cassette from the pape
r
fe
eder.
2. While pressing the lock lever and then
slide the roller holder.
3. Remove the paper feed roller assembly.
4. Check or replace the paper feed roller
or the pickup roller and re
fit all the
re
moved parts.

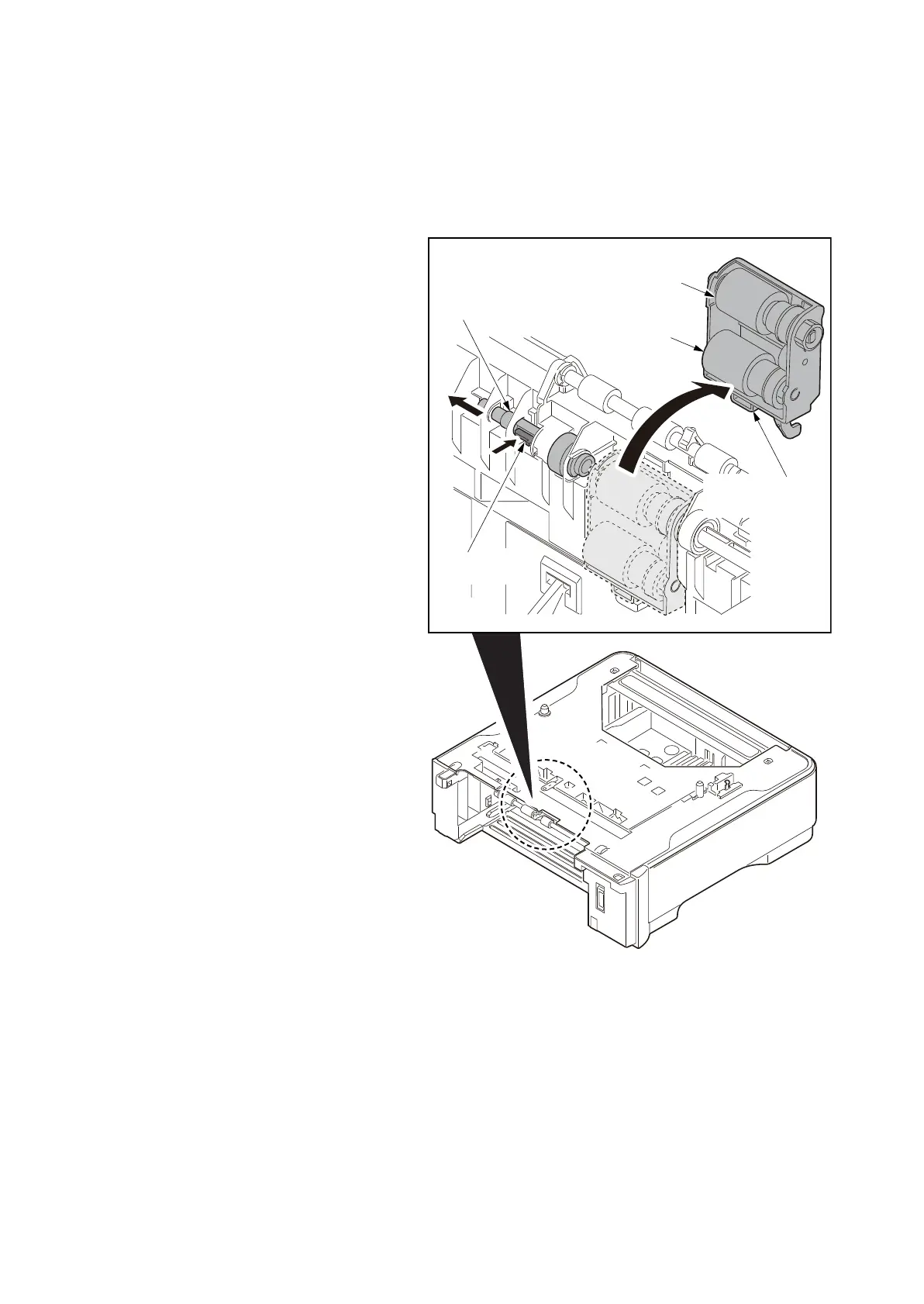

Figure 1-4-1
Lock lever
Pickup roller
Paper feed roller
Roller holder
Paper feed roller
assembly
