Olympus CH Series User Manual

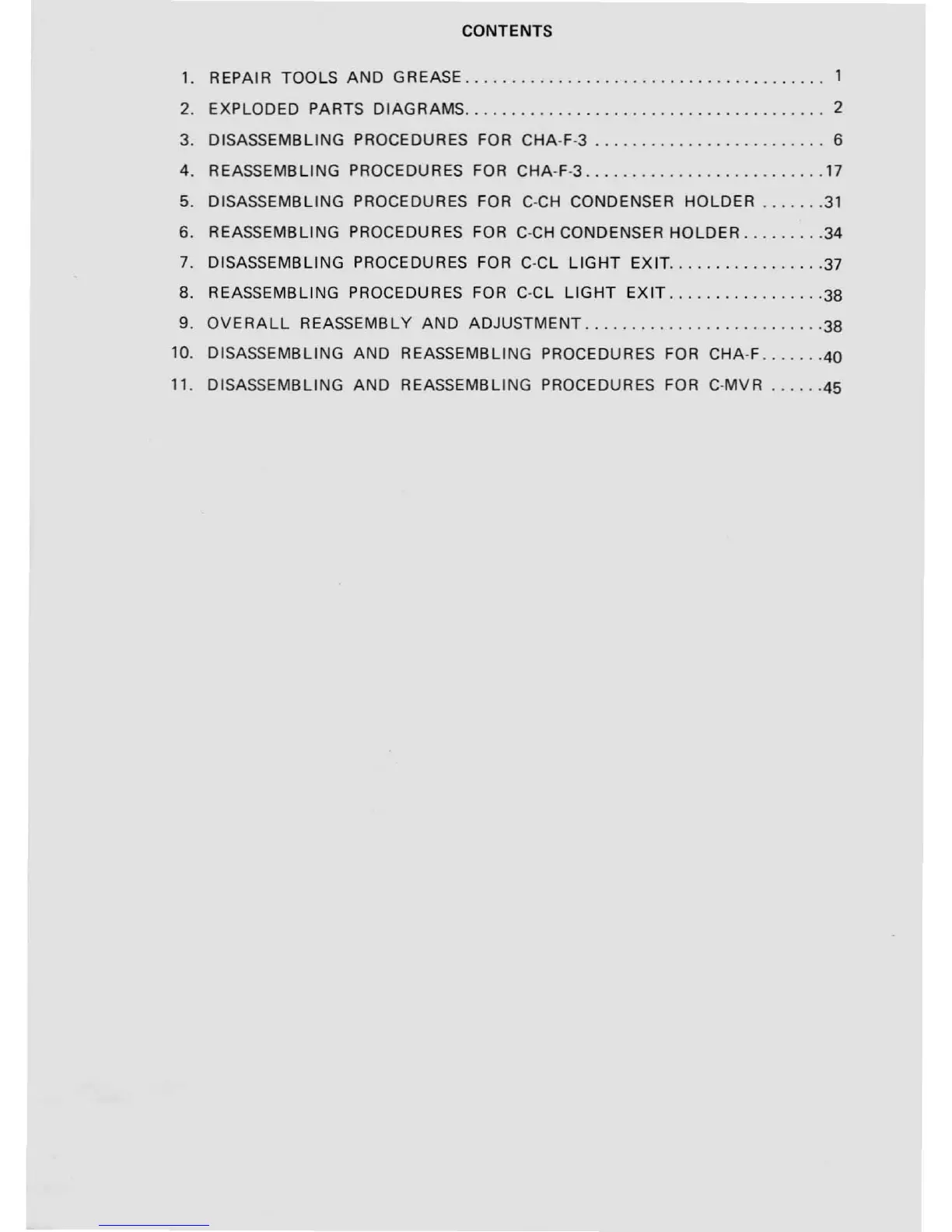

CONTENTS
1. REPAIR TOOLS AND GREASE ..
2. EXPLODED PARTS DIAGRAMS ....................•......•.....•..... 2
3. DISASSEMBLING PROCEDURES FOR CHA·F-3 6
4. REASSEMBLING PROCEDURES FOR CHA·F-3 17
5. DISASSEMBLING PROCEDURES FOR C·CH CONDENSER HOLDER 31
6. REASSEMBLING PROCEDURES FOR C·CH CONDENSER HOLDER 34
7. DISASSEMBLING PROCEDURES FOR C-CL LIGHT EXiT 37
8. REASSEMBLING PROCEDURES FOR C-CL LIGHT EXiT 38
9. OVERALL REASSEMBLY AND ADJUSTMENT 38
10. DISASSEMBLING AND REASSEMBLING PROCEDURES FOR CHA-F 40
11. DISASSEMBLING AND REASSEMBLING PROCEDURES FOR C-MVR -45

Olympus CH Series Specifications

General

Type	Biological Microscope
Stage	Mechanical stage
Focus	Coaxial coarse and fine focus knobs
Objectives	Plan achromatic objectives (4x, 10x, 40x, 100x)
Eyepiece	10x widefield eyepiece (FN 20)
Condenser	Abbe condenser (NA 1.25)
Magnification Range	40x - 1000x
Head	Binocular or Trinocular
Illumination	Built-in LED illuminator
Power Supply	AC adapter (for halogen or LED illumination)
