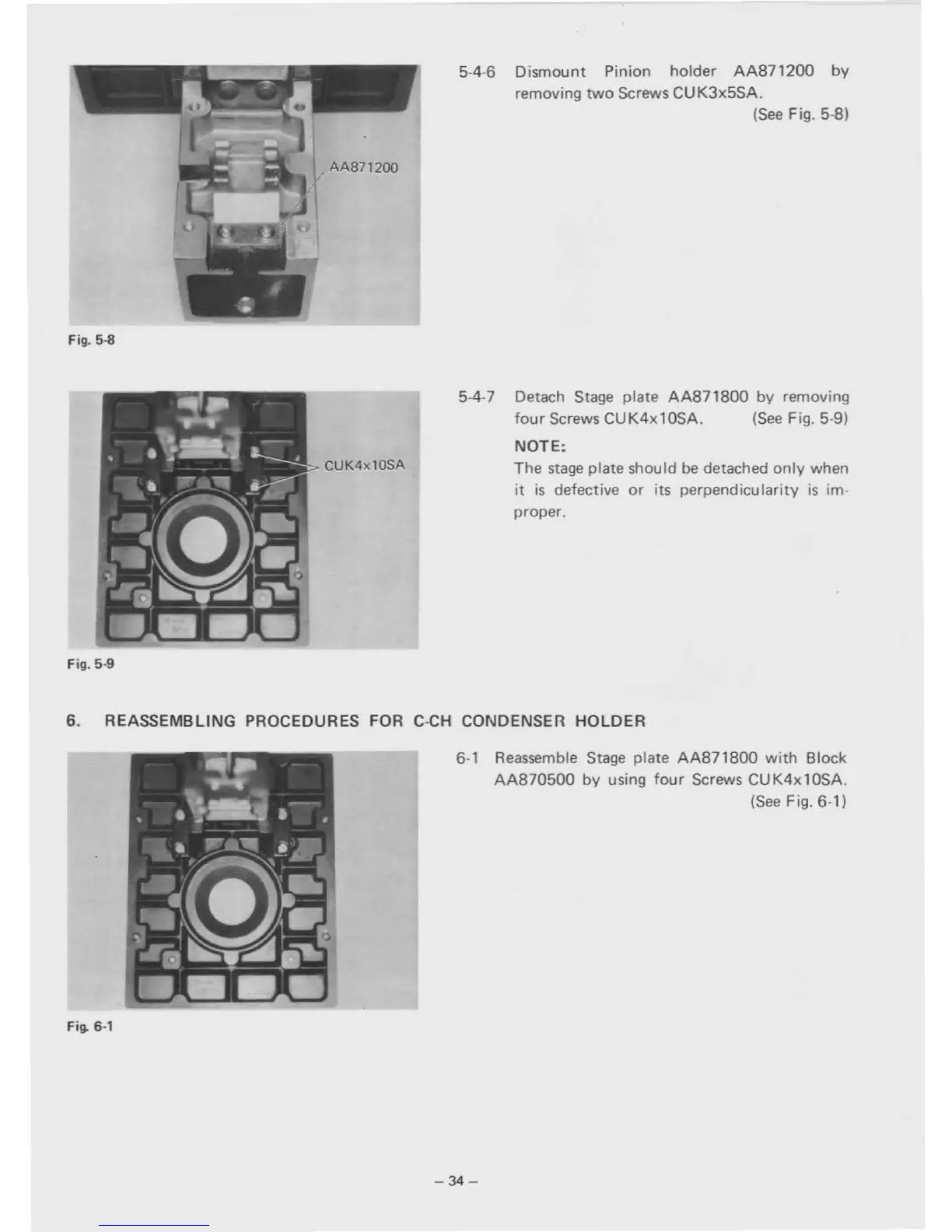

5-4-6 Dismount Pinion holder AA871200 by
removing two Screws CUK3x5SA.
(See Fig. 5-8)
Fig. 5-8
5-4-7 Detach Stage plate AA871800 by removing
four Screws CUK4x10SA. (See Fig. 5-9)
NOTE:
CUK4xl0SA The stage plate should be detached only when
it is defective or its perpendicularity is im-
proper.
Fig. 5-9
6_ REASSEMBLING PROCEDURES FOR C-CH CONDENSER HOLDER
6-1 Reassemble Stage plate AA871800 with Block
AA870500 by using four Screws CUK4x10SA.
(See Fig. 6-1)
Fill- 6-1
-34-
