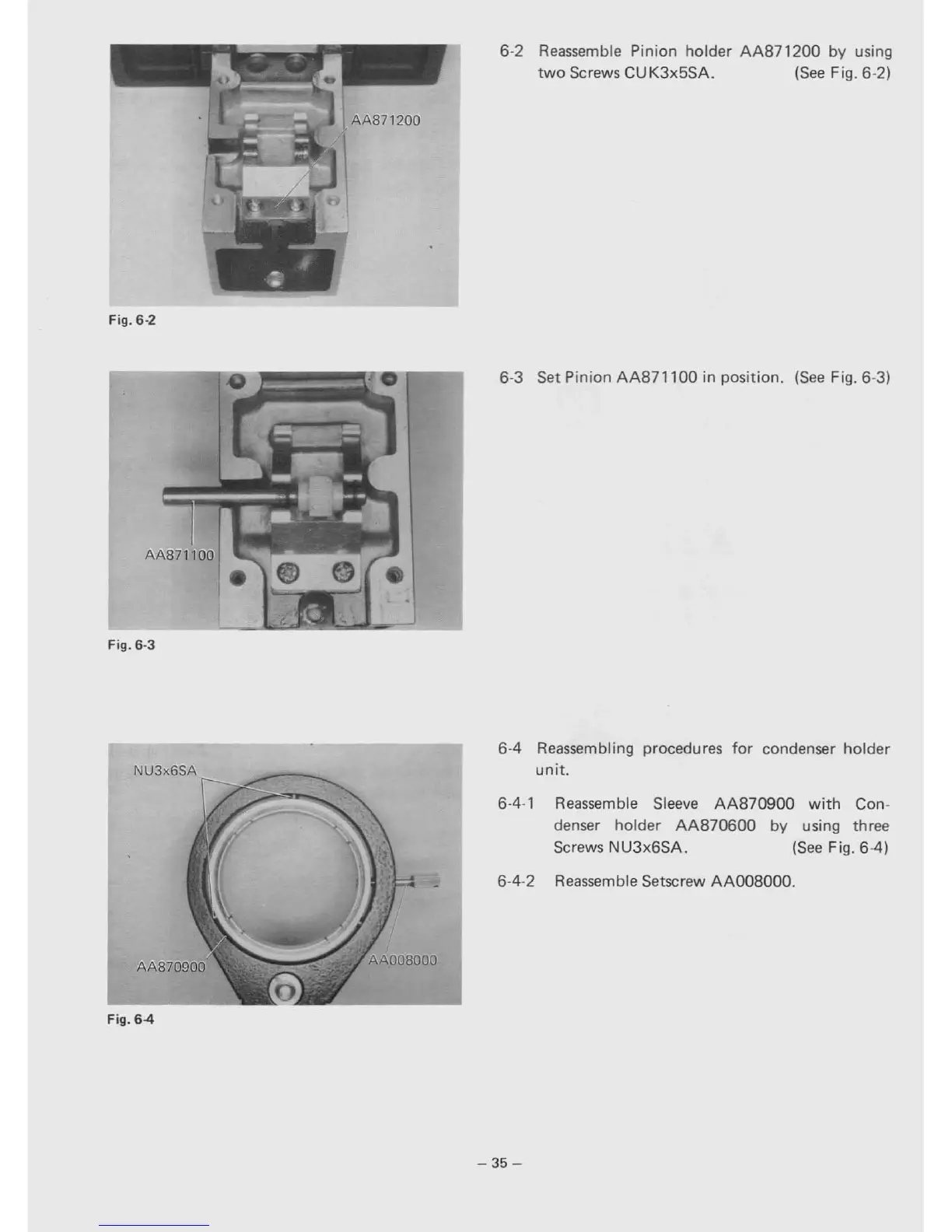

Olympus CH Series - Reassemble Pinion Holder; Set Pinion in Position; Reassembling Procedures for Condenser Holder Unit

Fig. 6-2
Fig. 6·3
NU3x6SA
Fig.64
6-2 Reassemble Pinion holder AA871200 by using
two Screws CUK3x5SA. (See Fig. 6-2)
6-3 Set Pinion AA8711 00 in position. (See Fig. 6-3)
6-4 Reassembling procedures for condenser holder
unit.
6-4-1 Reassemble Sleeve AA870900 with Con-
denser holder AA870600 by using three
Screws NU3x6SA. (See Fig. 6-4)
6-4-2 Reassemble Setscrew AA008000.
- 35-
