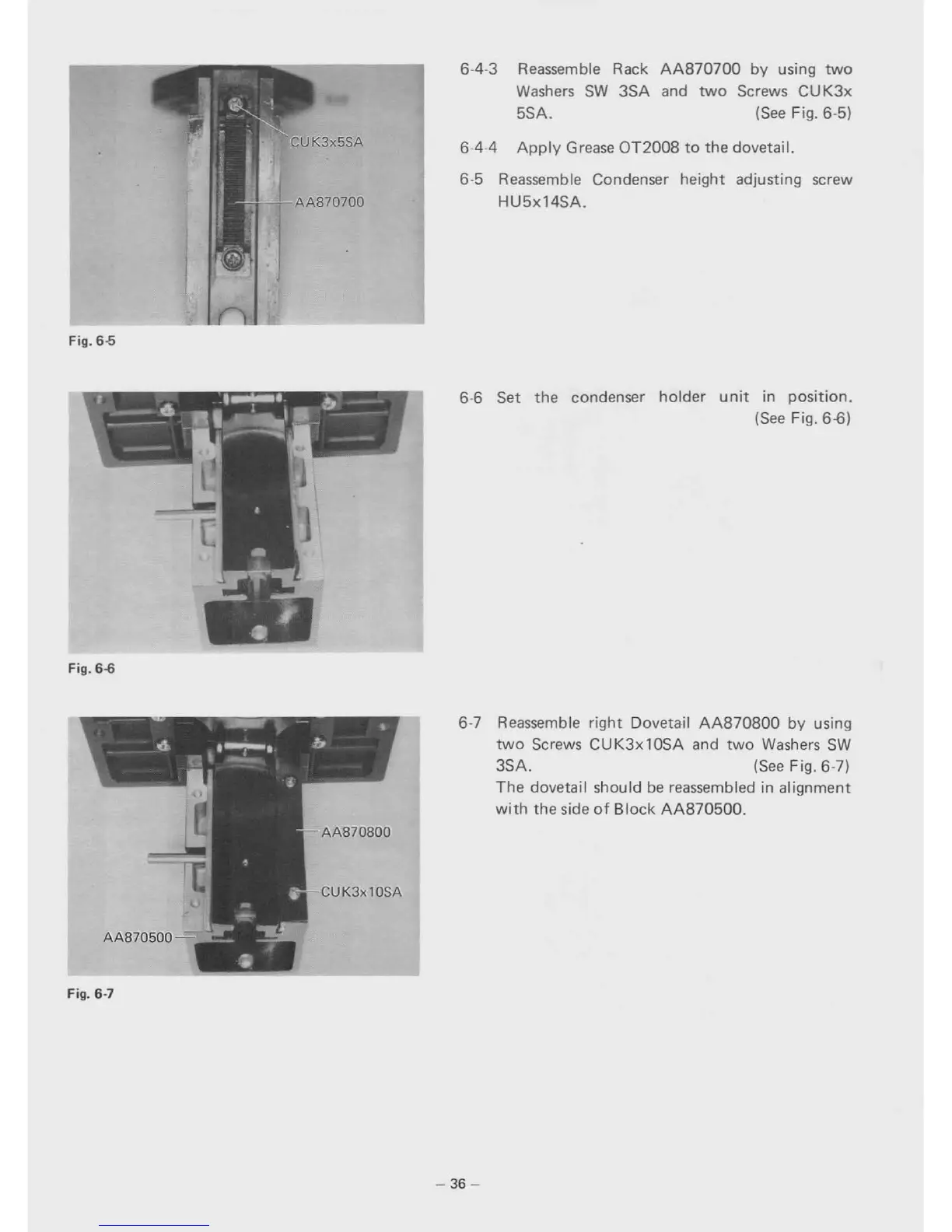

Olympus CH Series - Reassemble Condenser Height Adjusting Screw; Set Condenser Holder Unit; Reassemble Right Dovetail

6-4-4 Apply Grease OT2008 to the dovetail.
6-5 Reassemble Condenser height adjusting screw
HU5x14SA.
Fig. 6-5
;;;""'~AA870700
6-4-3 Reassemble Rack
Washers SW 3SA
5SA_
AA870700 by using two
and two Screws CUK3x
(See Fig. 6-5)
Fig. 6-6
6-6 Set the condenser holder unit in position.
(See Fig. 6-6)
AA870500-
Fig. 6-7
AA870800
CUK3xl0SA
6-7 Reassemble right Dovetail AA870800 by using
two Screws CUK3xl0SA and two Washers SW
3SA. (See Fig. 6-7)
The dovetail should
be reassembled in alignment
with the side of Block AA870500.
