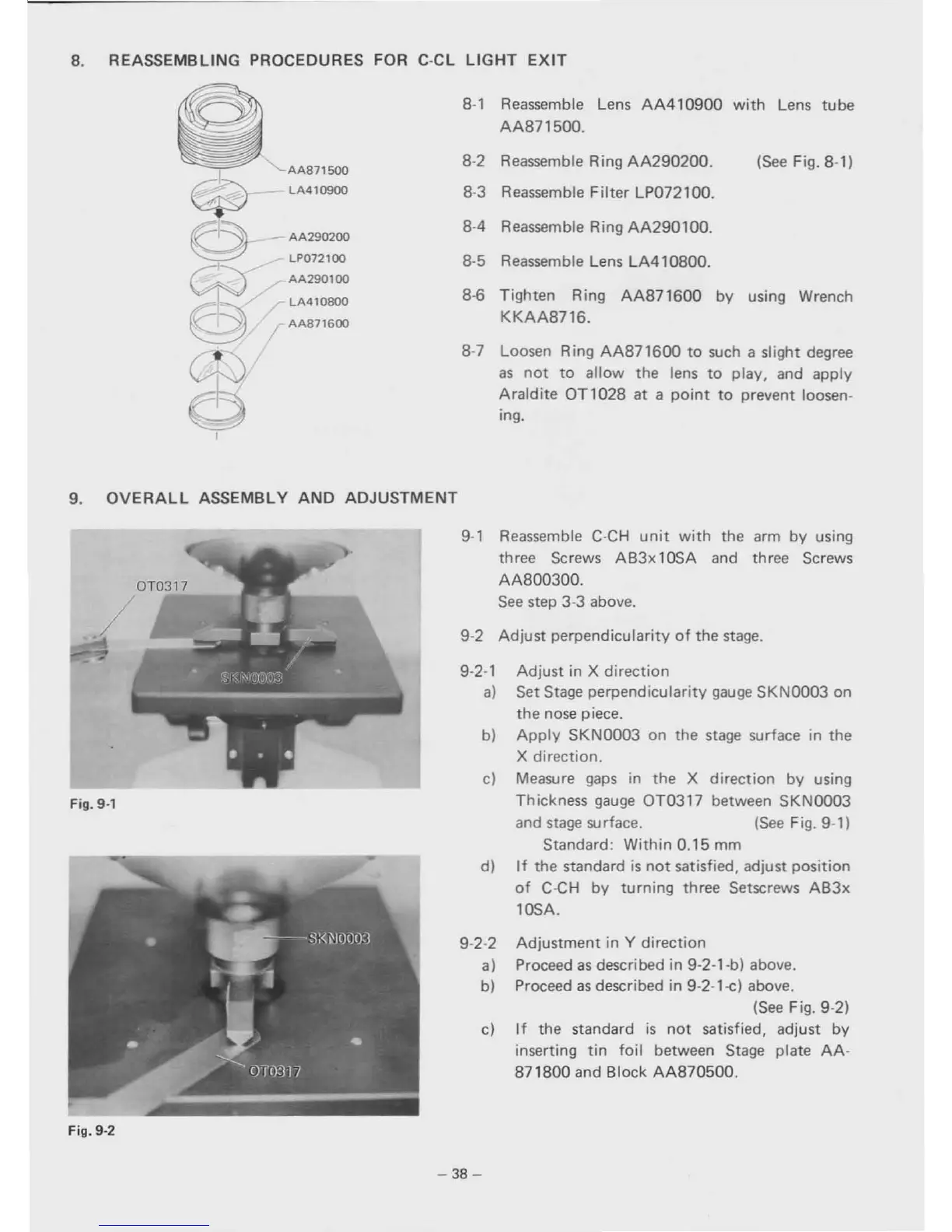

8. REASSEMBLING PROCEDURES FOR C-CL LIGHT EXIT
8-6 Tighten Ring AA871600 by using Wrench
KKAA8716.
8-1 Reassemble Lens AA410900 with Lens tube
AA871500.
8·7 Loosen Ring AA871600 to such a slight degree
as not to allow the lens to play, and apply
Araldite OT1028 at a point to prevent loosen-
ing.
(See Fig. 8·1)
8-4 Reassemble Ring
AA290100.
8-5 Reassemble Lens LA41 0800.
8-2 Reassemble Ring
AA290200.
8·3 Reassemble Filter LP0721 00.
- AA290200
~ LP072,00
AA290,00
LA41 0800
I AA87,600
AA87,SOll
_LA410900
9. OVERALL ASSEMBLY AND ADJUSTMENT
9-1 Reassemble C·CH unit with the arm by using
three Screws
A83x 10SA and three Screws
AA800300.
See step 3-3 above.
9-2
Adjust perpendicularity of the stage .
9-2-2
Adjustment in Y direction
a) Proceed as described in 9-2-1·b) above.
b) Proceed
as described in 9-2·1-e) above.
(See Fig. 9·2)
c) If the standard is not satisfied, adjust by
inserting
tin foil between Stage plate AA-
871800 and Block AA870500.
Adjust in X direction
Set Stage perpendicularity gauge SKN0003 on
the
nose piece.
Apply SKN0003 on the stage surface in the
X direction.
Measure
gaps in the X direction by using
Thickness
gauge OT0317 between SKN0003
and stage surface. (See Fig. 9-1)
Standard:
Within 0.15 mm
If the standard is not satisfied, adjust position
of C-CH by turning three Setscrews A83x
10SA.
b)
c)
d)
9-2-1
a)
/
•
Fig. 9-1
Fig. 9-2
- 38-
