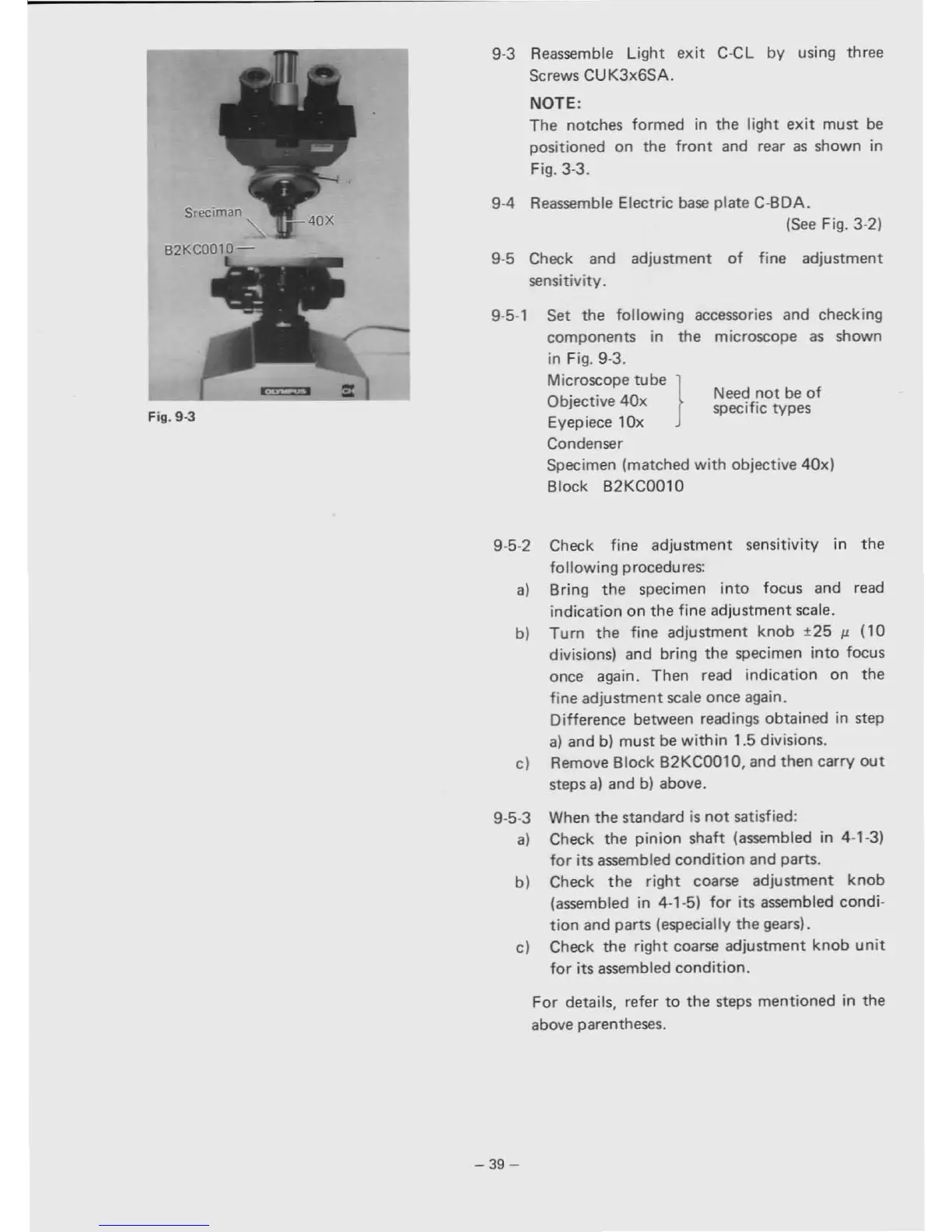

Sreciman
9-3 Reassemble Light
exit
C-CL by using three
Screws CUK3x6SA.
NOTE:
The
notches formed
in
the
light
exit
must
be
positioned
on
the
front
and rear
as
shown
in
Fig. 3-3.
9-4 Reassemble Electric base plate C-BDA.
(See Fig. 3-2)
9-5 Check and
adjustment
of
fine
adjustment
sensitivity.
Need
not
be
of
specific types
B2KC0010-
Fig. 9-3
9-5-1
Set
the
following accessories and checking
components
in
the
microscope as shown
in
Fig. 9-3.
Microscope
tube}
Objective
40x
Eyepiece lOx
Condenser
Specimen (matched with objective 40x)
Block B2KC0010
9-5-2 Check fine
adjustment
sensitivity
in
the
following procedures:
a)
Bring
the
specimen
into
focus and read
indication
on
the
fine
adjustment
scale.
b)
Turn
the
fine
adjustment
knob
±25
Il
(10
divisions) and bring
the
specimen into focus
once again.
Then
read indication
on
the
fine
adjustment
scale
once
again.
Difference between readings
obtained
in
step
a)
and
b)
must
be within 1.5 divisions.
c) Remove Block B2KC0010, and
then
carry
out
steps
a)
and
b)
above.
9-5-3 When
the
standard
is
not
satisfied:
a)
Check
the
pinion shaft (assembled
in
4-1·3)
for its assembled
condition
and
parts.
b) Check
the
right coarse
adjustment
knob
(assembled
in
4·1-5) for its assembled condi·
tion and parts (especially
the
gears).
c) Check
the
right coarse
adjustment
knob
unit
for its assembled condition.
For details, refer
to
the
steps
mentioned
in
the
above parentheses.
-
39-
