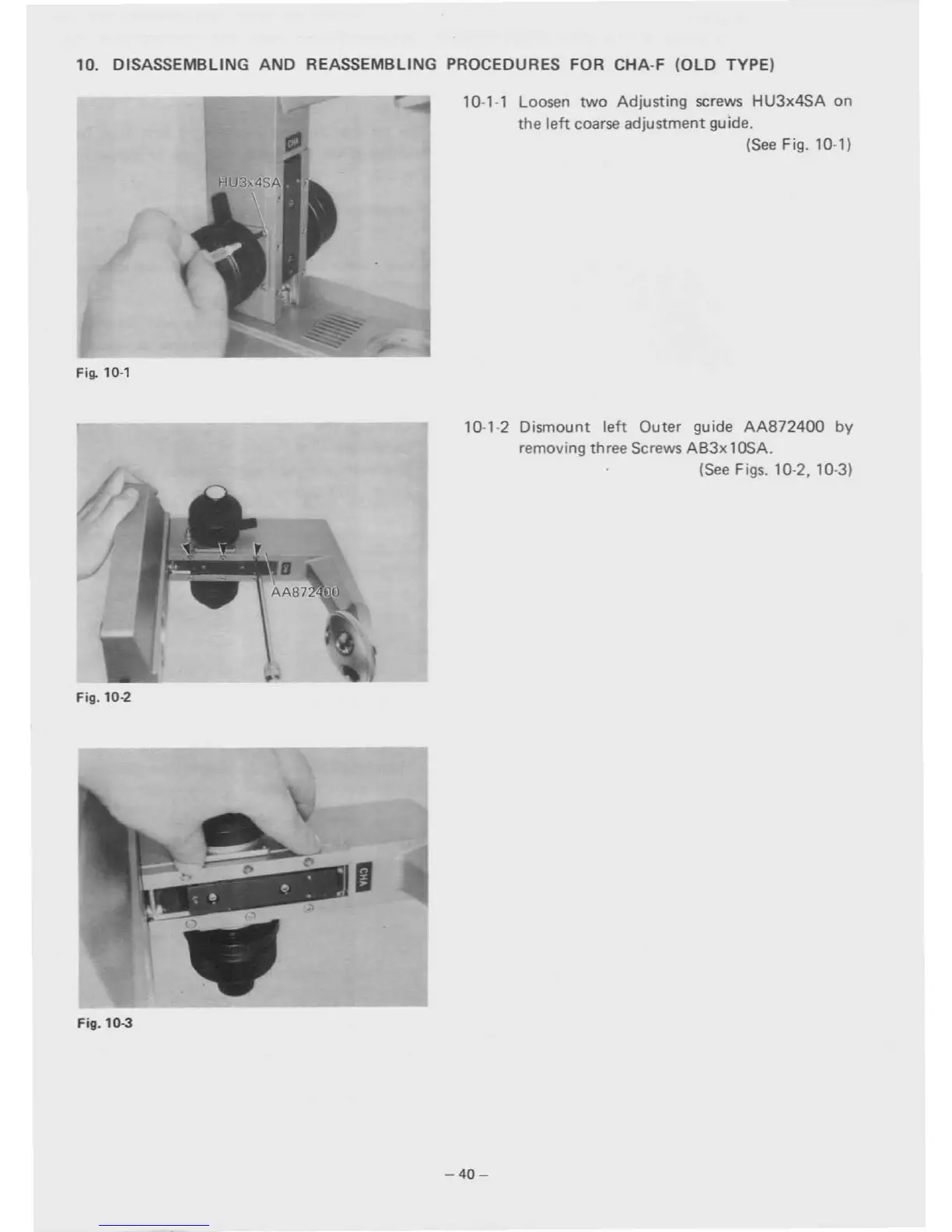

10. DISASSEMBLING AND REASSEMBLING PROCEDURES FOR CHA-F (OLD TYPE)
10-1-1 Loosen two Adjusting screws HU3x4SA on
the left coarse adjustment guide.
(See Fig. 10-1)
Fig. 10·1
10-1-2 Dismount left Outer guide AA872400 by
removing three Screws AB3x lOSA.
(See Figs. 10-2, 10-3)
Fig. 10-2
I
Fig. 10-3
-40-
