Olympus CH Series User Manual

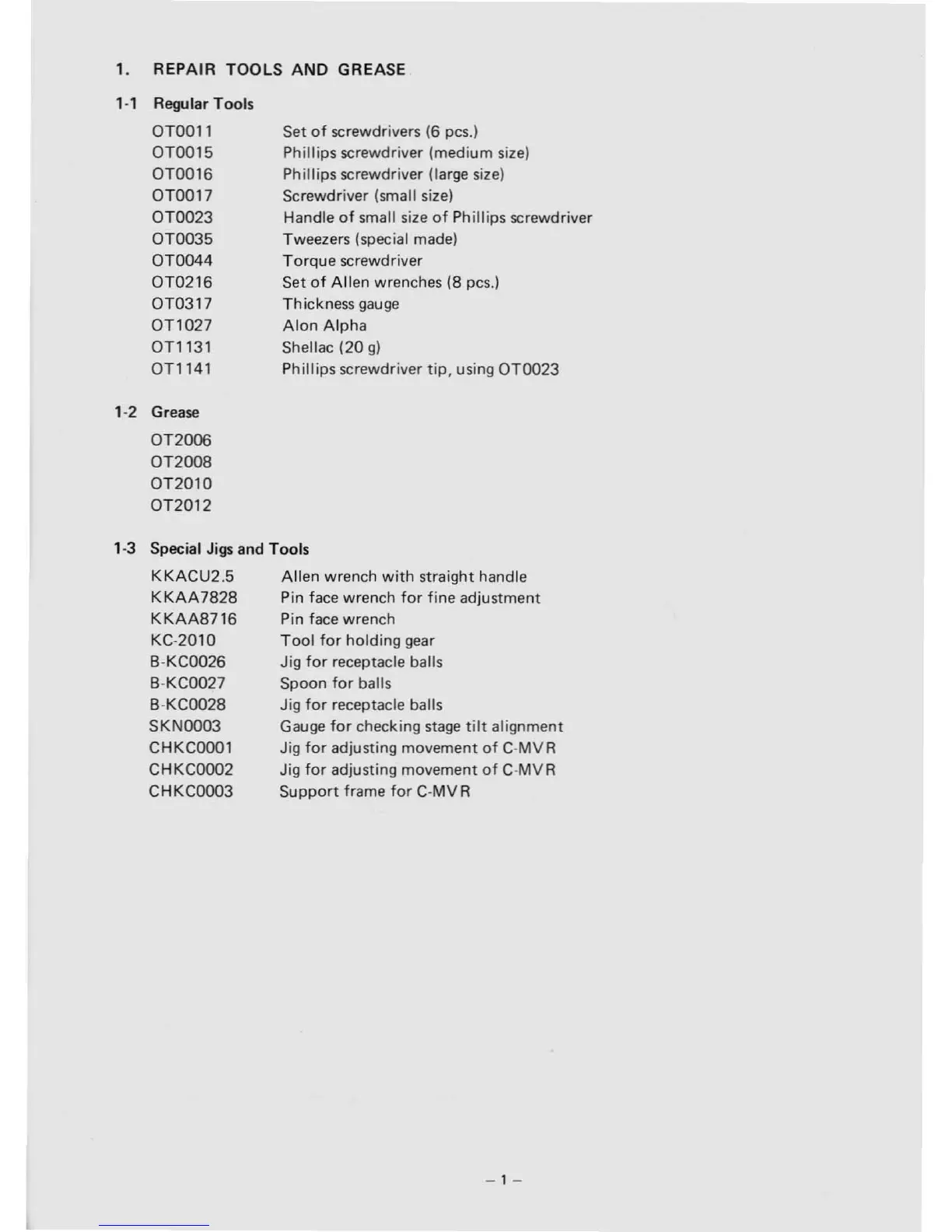

1. REPAIR TOOLS AND GREASE
1-1 Regular Tools
OTOOll
OT0015
OT0016
OT0017
OT0023
OT0035
OT0044
OT0216
OT0317
OT1027
OTl131
OTl141
1-2 Grease
OT2006
OT2008
OT2010
OT2012
Set of screwdrivers (6 pes.)
Phillips screwdriver (medium size)
Phillips screwdriver (large size)
Screwdriver (small size)
Handle
of small size of Phillips screwdriver
Tweezers (special made)
Torque screwdriver
Set
of Allen wrenches (8 pes.)
Thickness
gauge
Alon Alpha
Shellac (20 g)
Phillips screwdriver tiP. using OT0023
1-3 Special Jigs and Tools
KKACU2.5 Allen wrench with straight handle
KKAA7828 Pin face wrench for fine adjustment
K
KAA8716 Pin face wrench
KC-2010
Tool for holding gear
8-KC0026 Jig for receptacle balls
8-KC0027 Spoon for balls
B-KC0028 Jig
for receptacle balls
SKN0003 Gauge for checking stage tilt alignment
CHKC0001 Jig
for adjusting movement of C-MVR
CHKC0002 Jig for adjusting movement of C-MVR
CHKC0003 Support frame for C-MVR
-1-

Olympus CH Series Specifications

General

Type	Biological Microscope
Stage	Mechanical stage
Focus	Coaxial coarse and fine focus knobs
Objectives	Plan achromatic objectives (4x, 10x, 40x, 100x)
Eyepiece	10x widefield eyepiece (FN 20)
Condenser	Abbe condenser (NA 1.25)
Magnification Range	40x - 1000x
Head	Binocular or Trinocular
Illumination	Built-in LED illuminator
Power Supply	AC adapter (for halogen or LED illumination)
