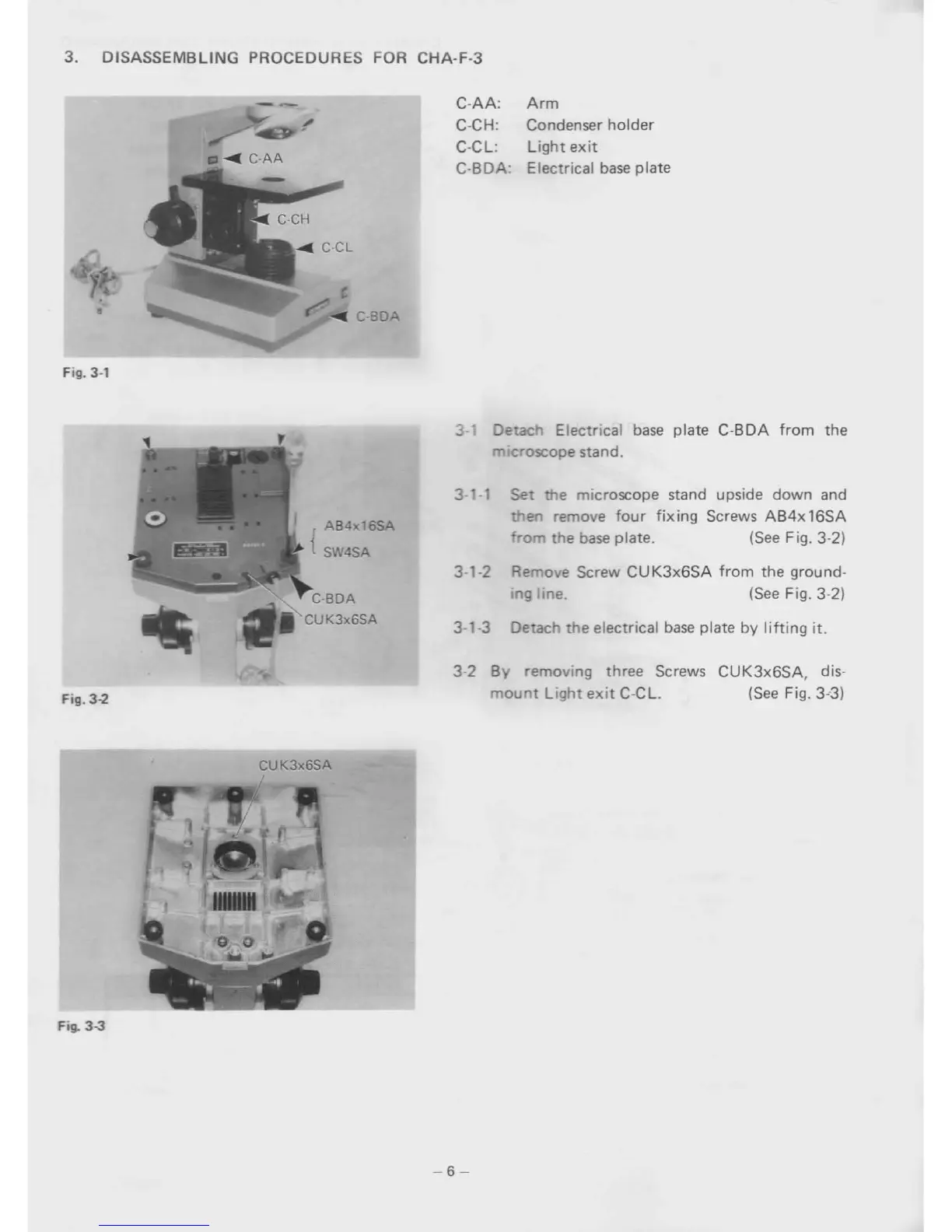

3. DISASSEMBLING PROCEDURES FOR CHA-F-3
Fig. 3-1
",--
.. ~ C-AA
C-BDA
C-AA:
C-CH:
C-CL:
C-BDA:
Arm
Condenser holder
Light exit
Electrical base plate
Fig. 3-2
Fig. 3-3
AB4x16SA
SW4SA
C-BDA
CUK3x6SA
CUK3x6SA
3- Detaeh Electrical base plate C-BDA from the
m croscope stand.
3-
-1 Set the microscope stand upside down and
en remove four fixing Screws AB4x16SA
from the base plate. (See Fig. 3-2)
3-'-2 Remove Screw CUK3x6SA from the ground-
,ng line.
(See Fig. 3-2)
3-1-3
Detaeh the electrical base plate by lihing it.
3-2 By removing three Screws CUK3x6SA, dis-
mount Light exit C-CL. (See Fig. 3-3)
-6-

Olympus CH Series Specifications

General

Type	Biological Microscope
Stage	Mechanical stage
Focus	Coaxial coarse and fine focus knobs
Objectives	Plan achromatic objectives (4x, 10x, 40x, 100x)
Eyepiece	10x widefield eyepiece (FN 20)
Condenser	Abbe condenser (NA 1.25)
Magnification Range	40x - 1000x
Head	Binocular or Trinocular
Illumination	Built-in LED illuminator
Power Supply	AC adapter (for halogen or LED illumination)
