Olympus CH Series User Manual

AA941600

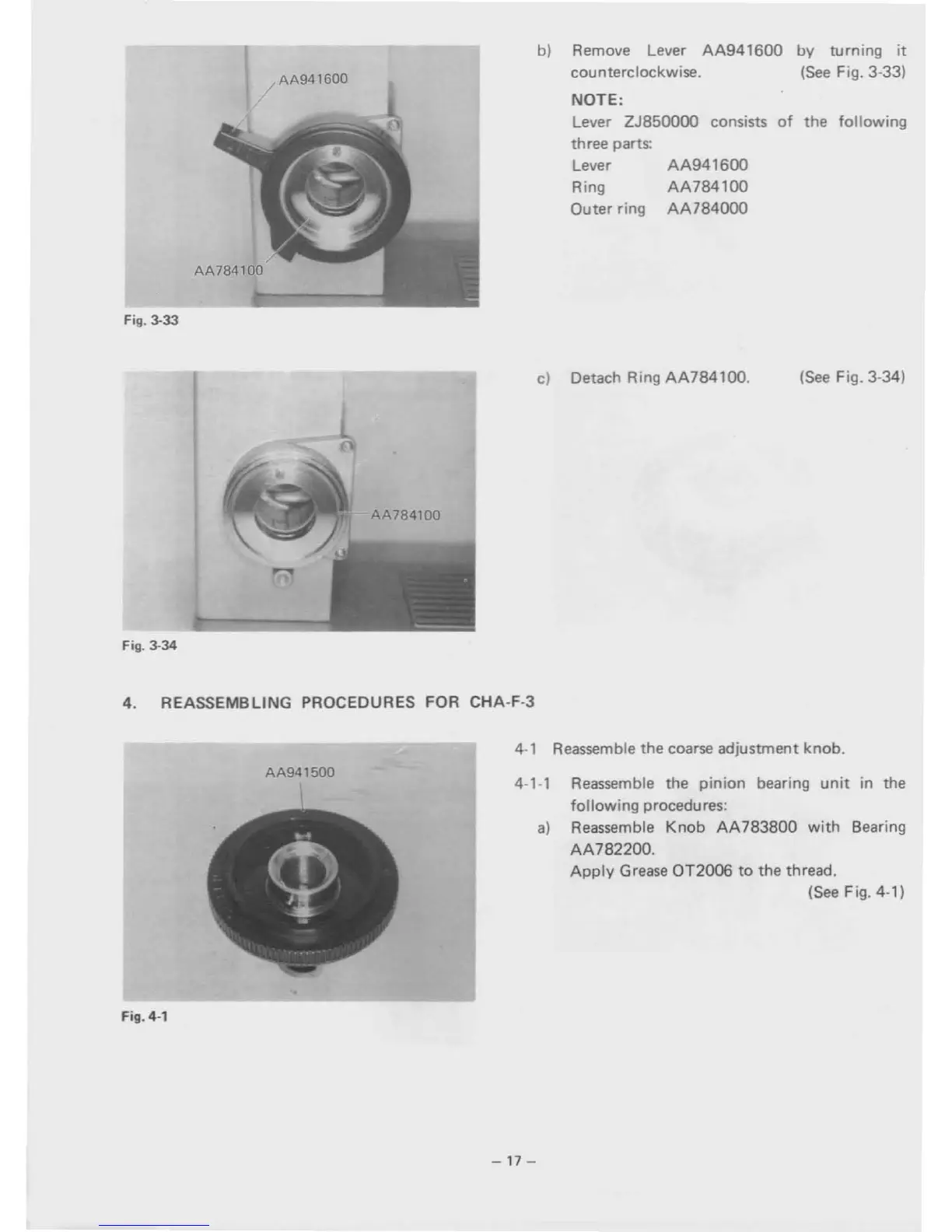

b) Remove Lever AA941600 by turning it
counterclockwise. (See Fig. 3-33)
AA941600
AA784100
AA784000
AA784100
Fig. 3-33
NOTE:
Lever ZJ850000
three parts:
Lever
Ring
Outer ring
consists of the following
Fig. 3-34
4. REASSEMBLING PROCEDURES FOR CHA-F-3
c) Detach Ring AA784100.
(See Fig. 3·34)
Fig. 4-'
AA941500
4-1 Reassemble the coarse adjustment knob.
4-1-1 Reassemble the pinion bearing unit in the
following procedures:
a) Reassemble Knob AA783800 with Bearing
AA782200.
Apply Grease OT2006 to the thread.
(See Fig. 4·1)
- 17-
