Olympus CH Series User Manual

Fig. 4-2
Fig_ 4-3
AA783700

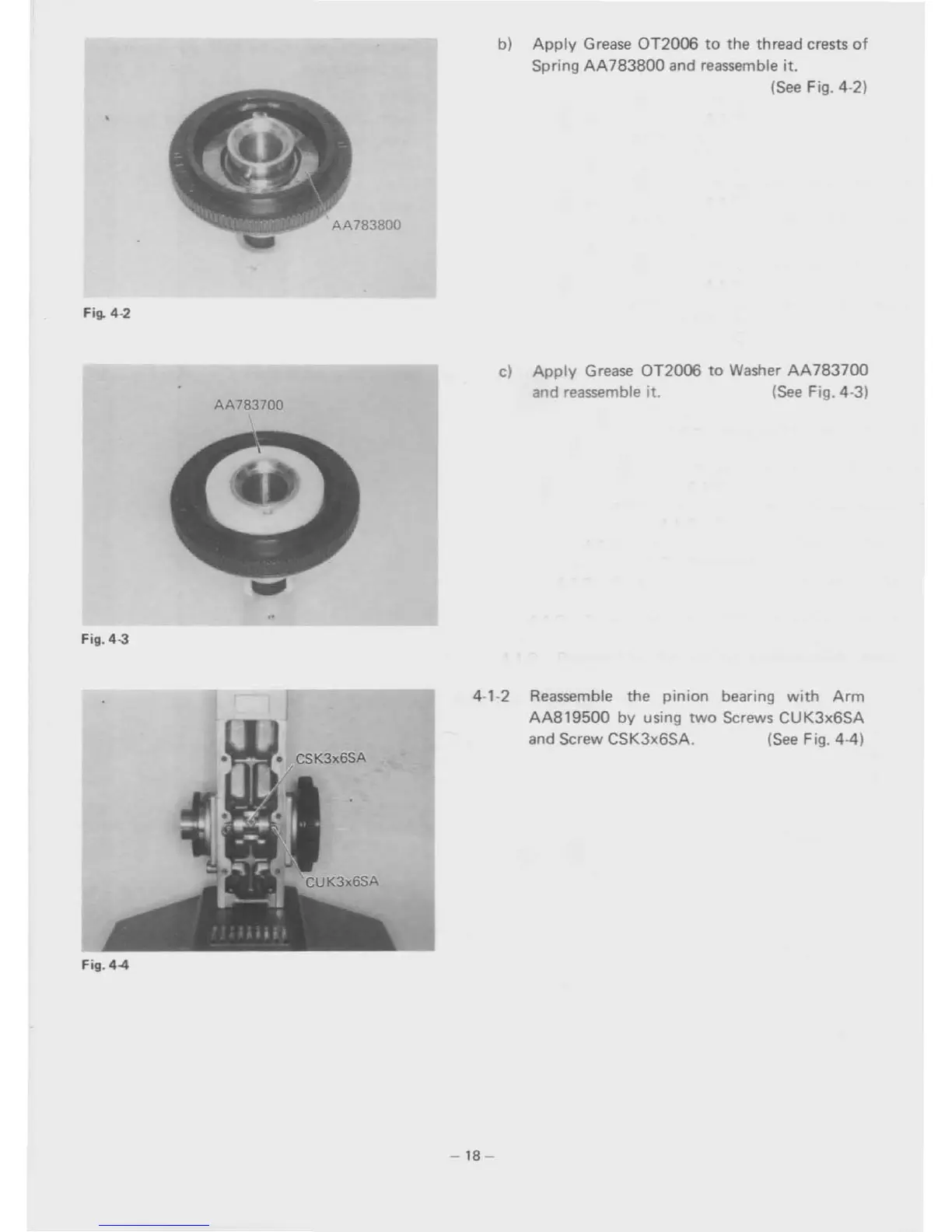

b) Apply Grease OT2006 to the thread crests of
Spring AA783800 and reassemble it.
(See Fig. 4-2)
c) Apply Grease OT2006 to Washer AA783700
and reassemble it. (See Fig. 4-3)
Fig_ 4-4
4-1-2 Reassemble the pinion bearing with Arm
AA819500 by using two Screws CUK3x6SA
and Screw CSK3x6SA. (See Fig. 4-4)
-18 -

Olympus CH Series Specifications

General

Type	Biological Microscope
Stage	Mechanical stage
Focus	Coaxial coarse and fine focus knobs
Objectives	Plan achromatic objectives (4x, 10x, 40x, 100x)
Eyepiece	10x widefield eyepiece (FN 20)
Condenser	Abbe condenser (NA 1.25)
Magnification Range	40x - 1000x
Head	Binocular or Trinocular
Illumination	Built-in LED illuminator
Power Supply	AC adapter (for halogen or LED illumination)
