Olympus CH Series User Manual

Fig.4·5
ZJ808900
8·KC0026
Fig.4-6
} Thread
ZJ808900
B·KCOO27
B 1/16
/

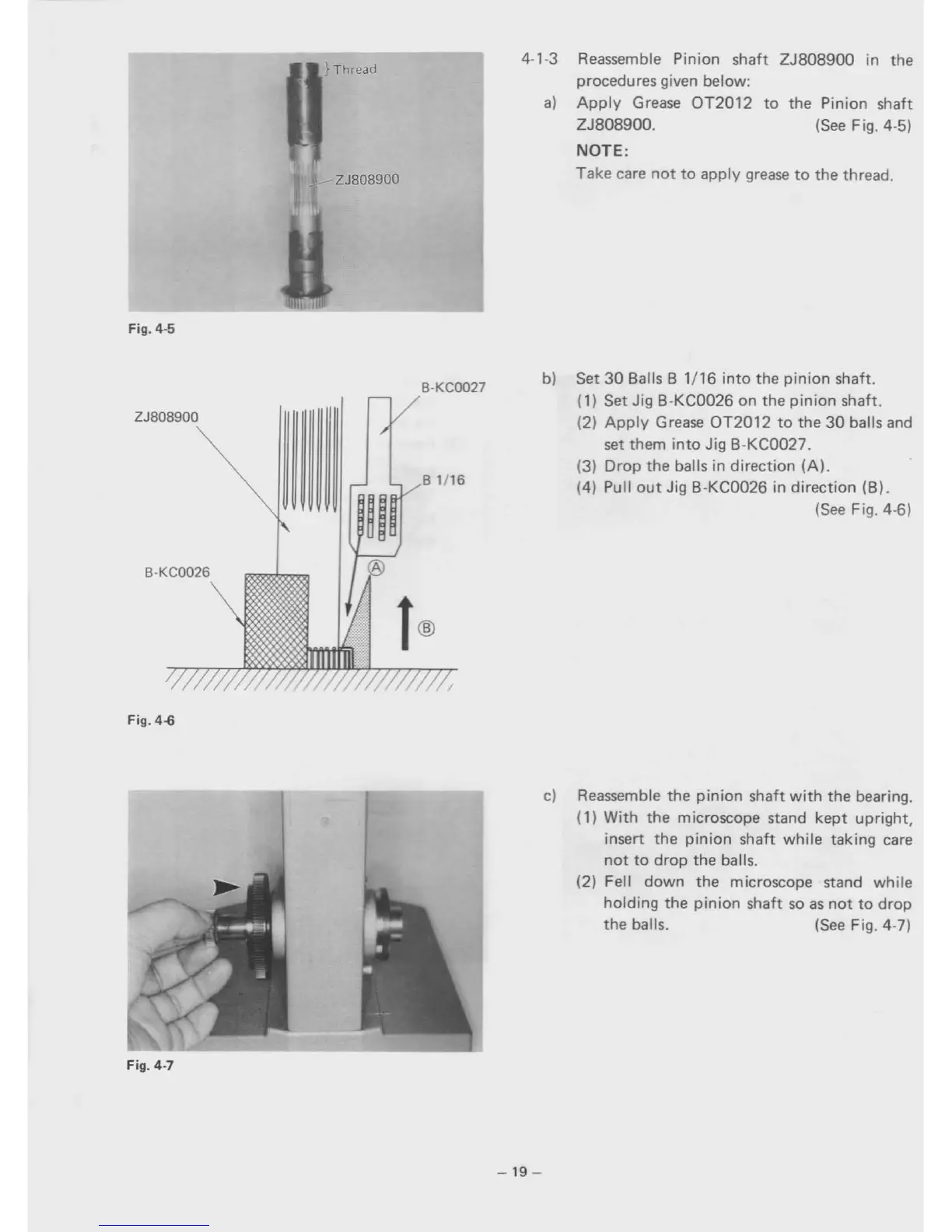

4·1·3 Reassemble Pinion shaft ZJ808900 in the
procedures given below:
a) Apply Grease OT2012 to the Pinion shaft
ZJ808900.
(See Fig. 4·5)
NOTE:
Take care not to apply grease to the thread.
b) Set 30 Balls B 1/16 into the pinion shaft.
(1) Set Jig B·KC0026 on the
pinion shaft.
(2)
Apply Grease OT2012 to the 30 balls and
set them into Jig B-KC0027.
(3)
Drop the balls in direction (A).
(4) Pull out Jig B·KC0026 in direction (B).
(See Fig. 4-6)
Fig. 4·7
c) Reassemble the pinion shaft with the bearing.
(1)
With the microscope stand kept upright,
insert the pinion shaft while taking care
not to drop the balls.
(2) Fell
down the microscope stand while
holding
the pinion shaft so as not to drop
the balls.
(See Fig. 4·7)
-19 -
