Page #24 background image

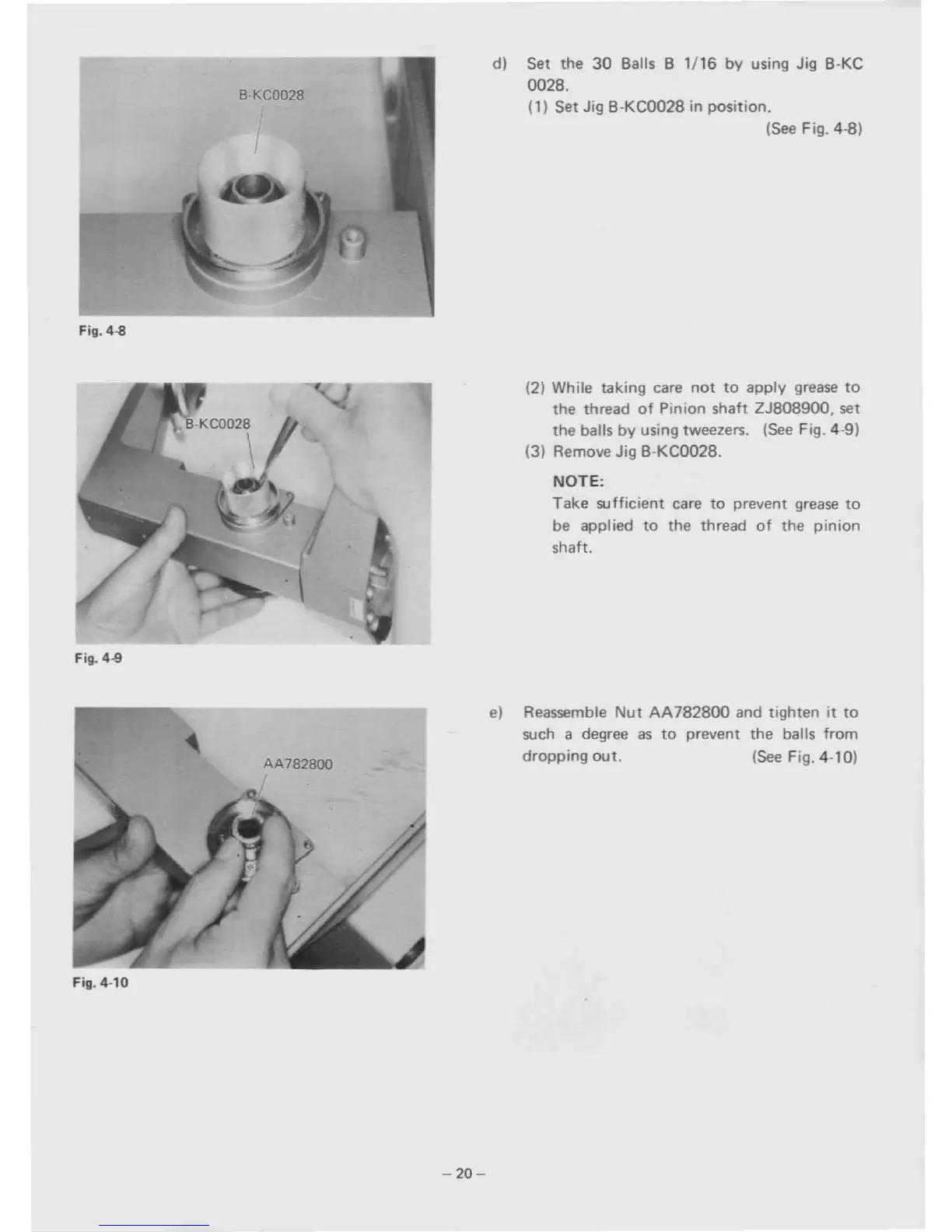

Fig. 4-8
B·KC0028
I
,
d) Set the
30
Balls B
1/16
by
using Jig B-KC
0028.
(1) Set Jig
B-KC0028
in
position.
(See
Fig. 4-8)
Fig. 4-9
AA782800
Fig. 4-10
-20-
(2) While taking care
not
to
apply
grease
to
the thread
of
Pinion shaft
ZJ808900.
set
the
balls
by
using tweezers.
(See
Fig.
4·9)
(3) Remove Jig
B·KC0028.
NOTE:
Take
sufficient
care
to
prevent
grease
to
be
applied
to
the thread
of
the
pinion
shaft.
e)
Reassemble
Nut
AA782800
and
tighten
it
to
such a degree
as
to
prevent the balls
from
dropping
out.
(See
Fig. 4-10)
