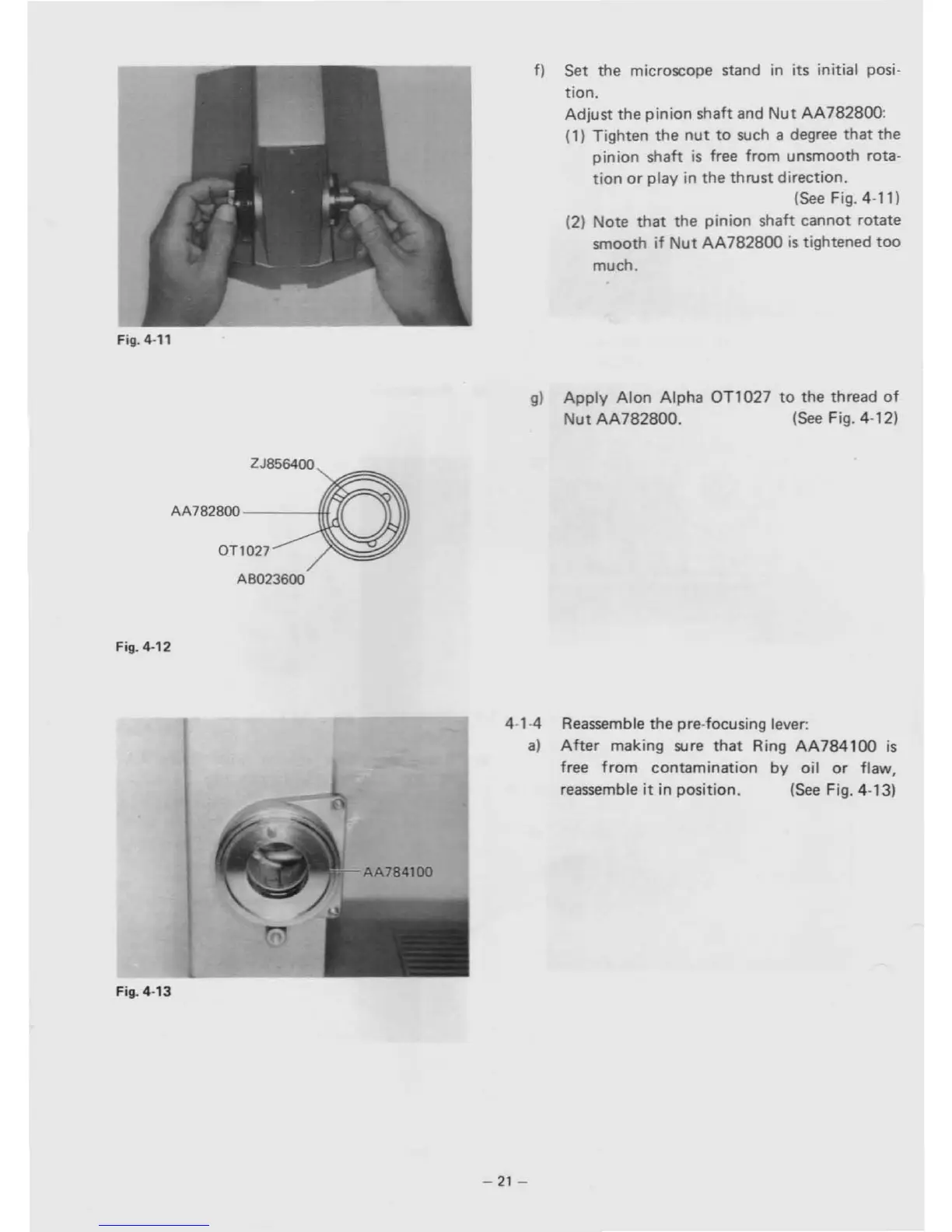

Fig. 4-11
ZJ856400
~~
AA782800----IU
OTl027
AB023600
Fig. 4-12
Fig. 4-13
f)
Set
the
microscope stand
in
its initial posi-
tion.
Adjust
the
pinion shaft and
Nut
AA782800:
(1) Tighten
the
nut
to
such a degree
that
the
pinion shaft
is
free from unsmooth rota-
tion
or
play
in
the
thrust
direction.
(See Fig. 4-11)
(2) Note
that
the
pinion shaft
cannot
rotate
smooth if Nut AA782800
is
tightened
too
much.
g)
Apply Alon Alpha OT1027
to
the thread
of
Nut AA782800. (See Fig. 4-12)
4-1-4 Reassemble
the
pre-focusing lever:
a)
After
making sure
that
Ring
AA784100
is
free from contamination by oil
or
flaw,
reassemble it
in
position. (See Fig. 4-13)
-21-
