Fig. 4·14
Fig. 4-15

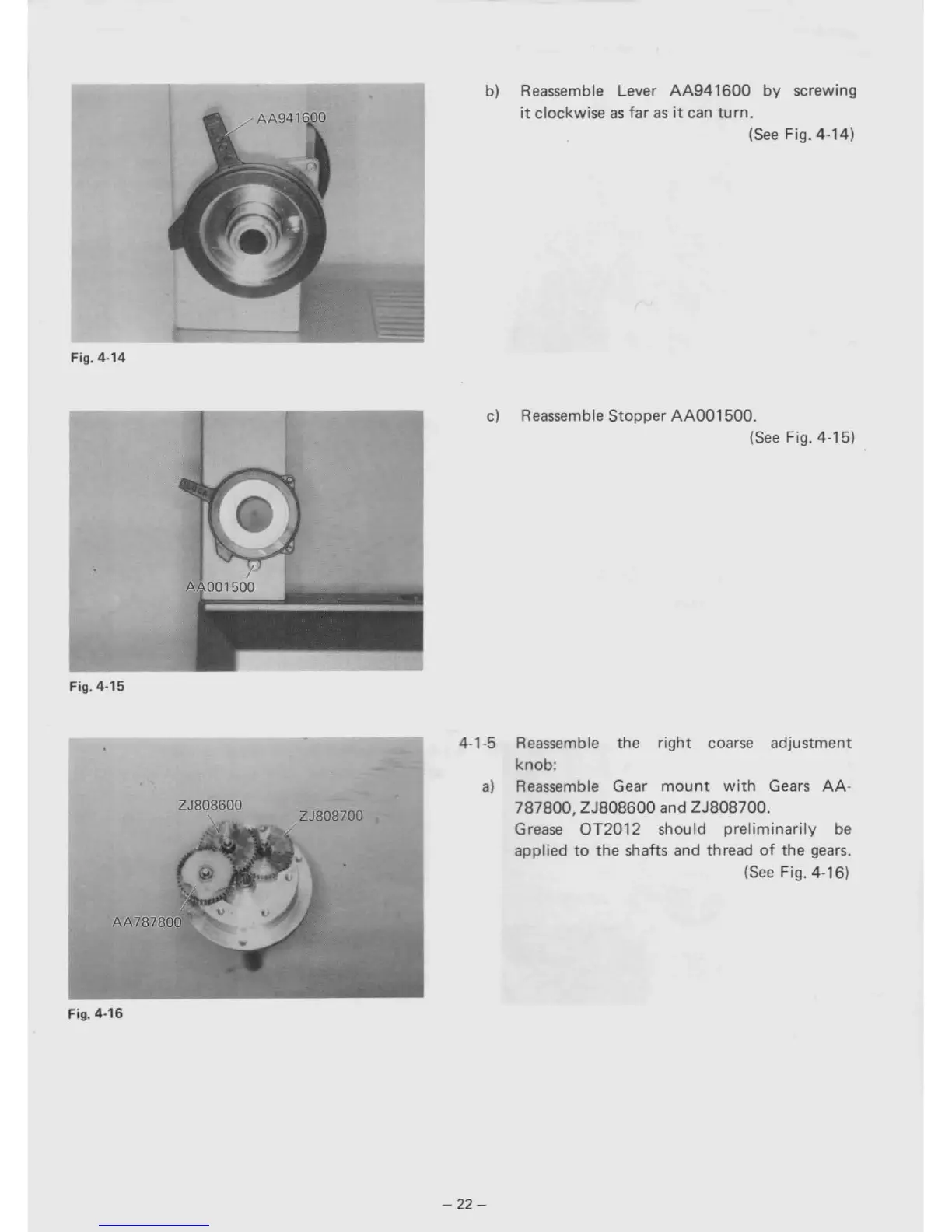

b) Reassemble Lever AA941600 by screwing
it clockwise as far as it can
turn.
(See Fig. 4-14)
c) Reassemble Stopper AA001500.
(See Fig. 4-15)
Fig.4-16
ZJ808600
ZJ808700
4-1-5 Reassemble the right coarse adjustment
knob:
a) Reassemble Gear mount with Gears AA·
787800, ZJ808600 and ZJ808700.
Grease
OT2012 should preliminarily be
applied
to the shafts and th read of the gears.
(See Fig. 4-16)
- 22-

Olympus CH Series Specifications

General

Type	Biological Microscope
Stage	Mechanical stage
Focus	Coaxial coarse and fine focus knobs
Objectives	Plan achromatic objectives (4x, 10x, 40x, 100x)
Eyepiece	10x widefield eyepiece (FN 20)
Condenser	Abbe condenser (NA 1.25)
Magnification Range	40x - 1000x
Head	Binocular or Trinocular
Illumination	Built-in LED illuminator
Power Supply	AC adapter (for halogen or LED illumination)
