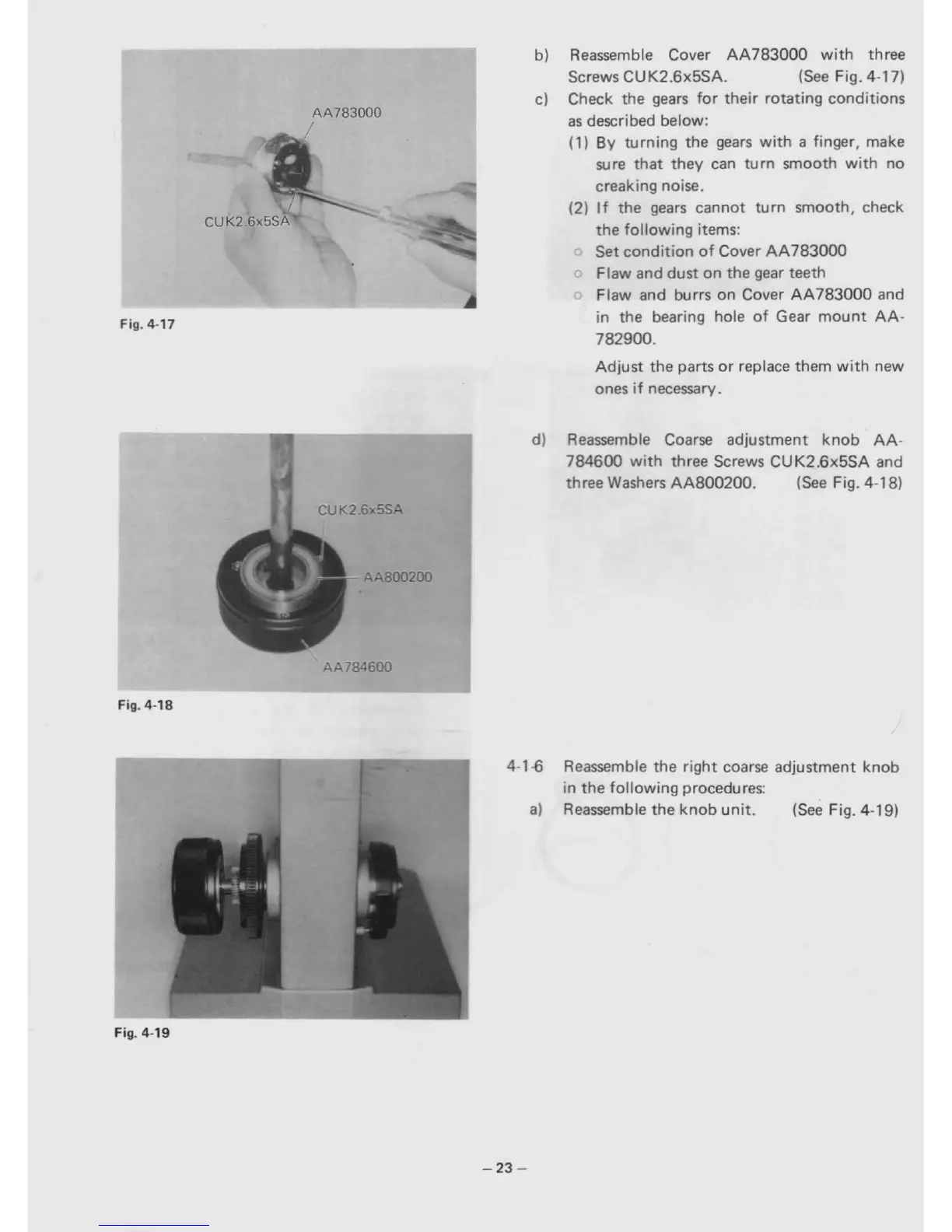

Olympus CH Series - Page 27

Fig. 4-17
AA783000
b) Reassemble Cover AA783000 with three
Screws
CU K2.6x5SA. (See Fig. 4·17)
c) Check the
gears for their rotating conditions
as described below:
(1)
8y turning the gears with a finger, make
sure
that they can turn smooth with no
creaking noise.
(2)
If the gears cannot turn smooth, check
the following items:
Set condition
of Cover AA 783000
n Flaw and du st on the gear teeth
Flaw and burrs on Cover
AA783000 and
in the bearing hole
of Gear mou nt AA·
782900.
Adjust the parts or replace them with new
ones
if necessary.
Fig. 4-18
CUK2.6x5SA
AA800200
AA784600
d) Reassemble Coarse adjustment knob AA·
784600 with three Screws CUK2.6x5SA and
three
Washers AA800200. (See Fig. 4-18)
Fig. 4·19
4·1 ~ Reassemble the right coarse adjustment knob
in the following procedures:
a) Reassemble the knob unit. (See Fig. 4-19)
-23 -
