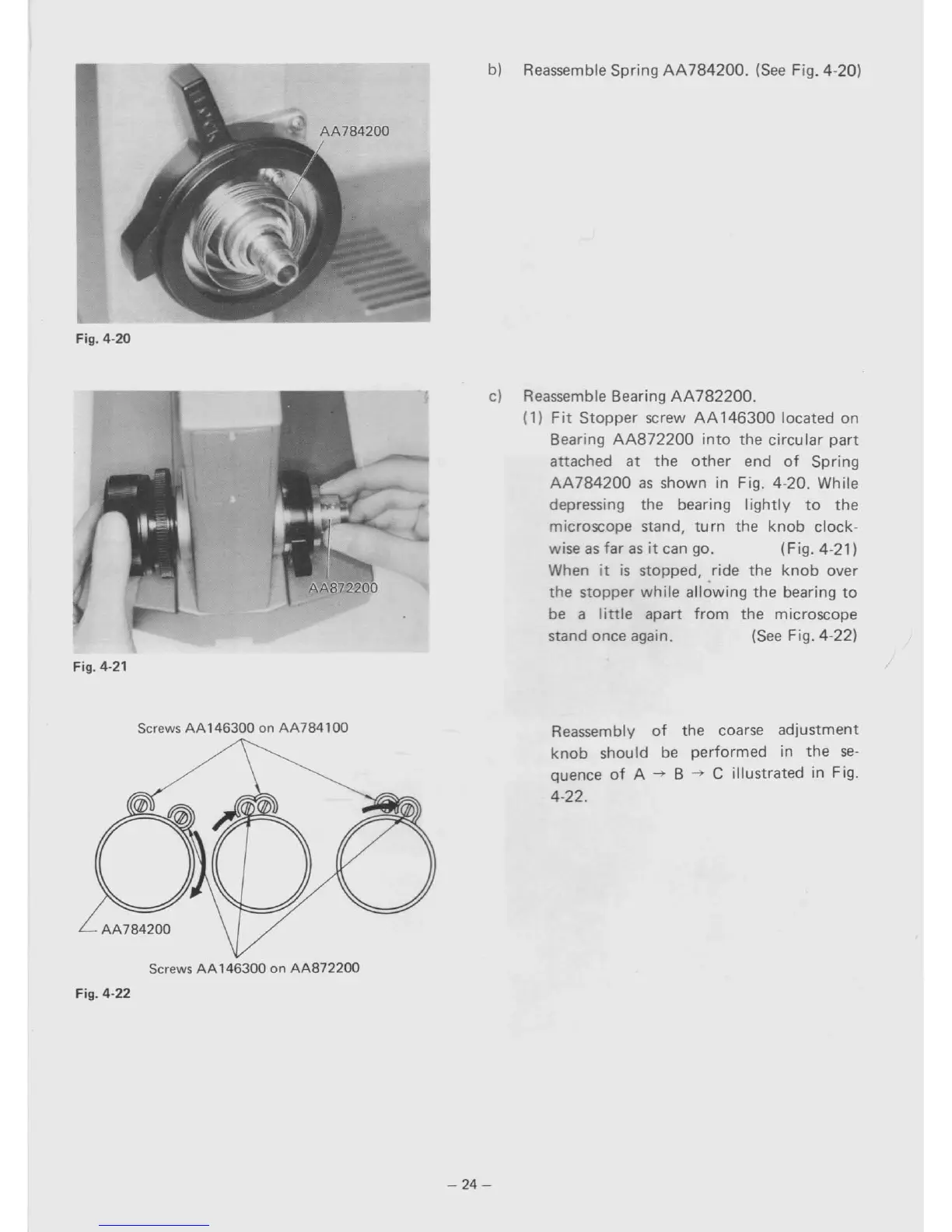

b)
Reassemble Spring
AA784200.
(See
Fig. 4-20)
Fig. 4·20
Fig. 4-21
c)
Reassemble 8earing
AA782200.
(1)
Fit
Stopper
screw
AA
146300
located on
Bearing
AA872200
into
the
circular
part
attached
at
the
other
end
of
Spring
AA784200
as
shown in Fig. 4-20. While
depressing the bearing
lightly
to
the
microscope stand.
turn
the
knob
clock-
wise
as
far
as
it
can go. (Fig. 4-21)
When
it
is
stopped, ride the
knob
over
the
stopper
while
allowing the bearing
to
be
a
little
apart
from
the
microscope
stand once again.
(See
Fig. 4-22)
Screws
AA146300
on
AA784100
AA784200
Screws
AA
146300
on
AA872200
Fig. 4-22
Reassembly
of
the coarse adjustment
knob
shou
Id
be
performed
in
the
se-
quence
of
A
....
B
....
C illustrated in Fig.
4-22.
-
24-
