Fig.
4·23
Fig.
4·24
Fig.
4·25

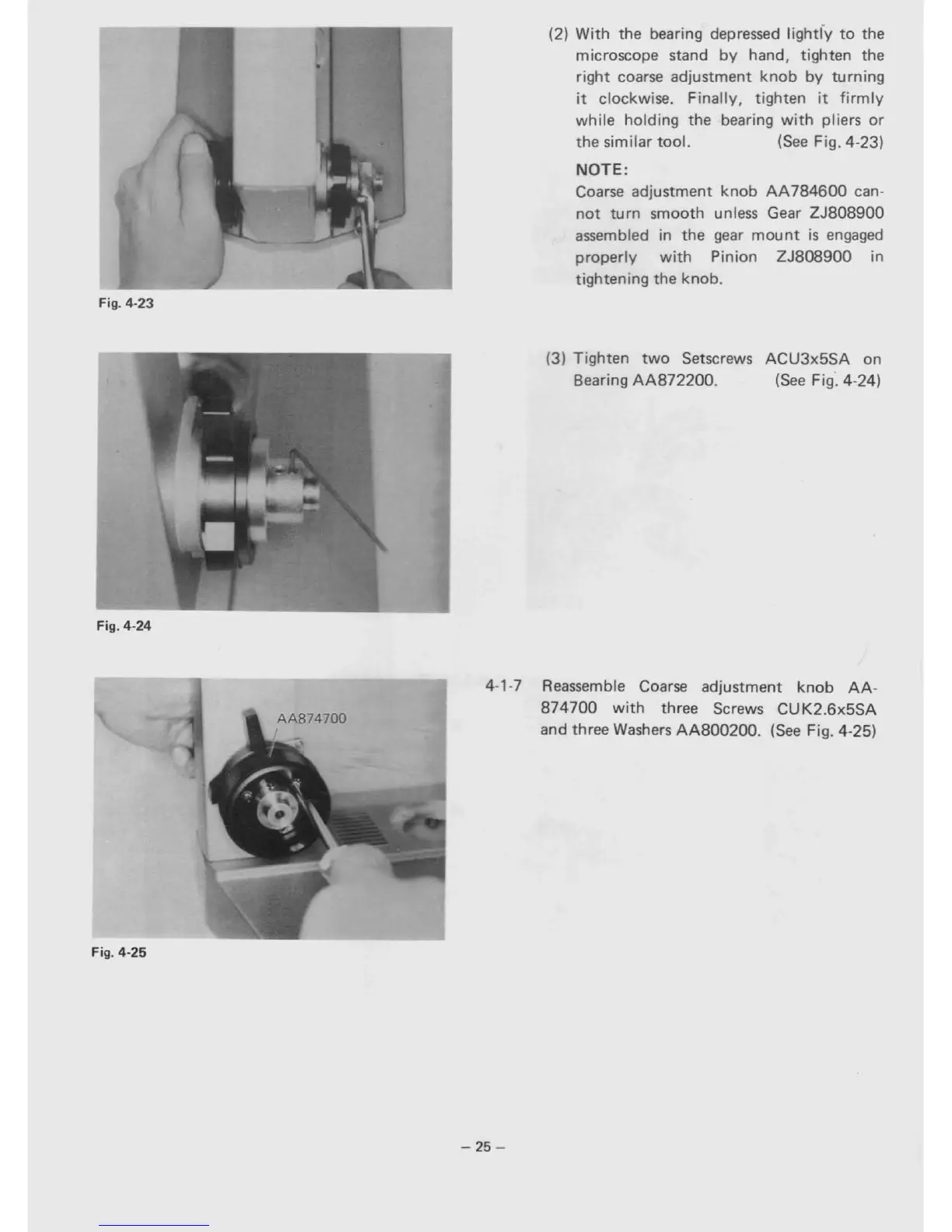

(2) With the bearing depressed lightiy
to
the
microscope stand by hand, tighten the
right coarse adjustment knob by turning
it
clockwise. Finally, tighten it firmly
while holding
the
bearing with pliers
or
the
similar tool. (See Fig. 4-23)
NOTE:
Coarse adjustment knob AA784600 can·
not
turn smooth unless Gear
ZJ808900
assembled
in
the
gear
mount
is
engaged
properly with Pinion
ZJ808900
in
tightening the knob.
(3) Tighten
two
Setscrews ACU3x5SA on
8earing AA872200. (See Fig. 4·24)
4-1·7 Reassemble Coarse adjustment knob AA·
874700
with three Screws
CU
K2.6x5SA
and
three Washers AA800200. (See Fig. 4·25)
-
25-
