Fig. 4·26
Fig. 4·27
AA784400

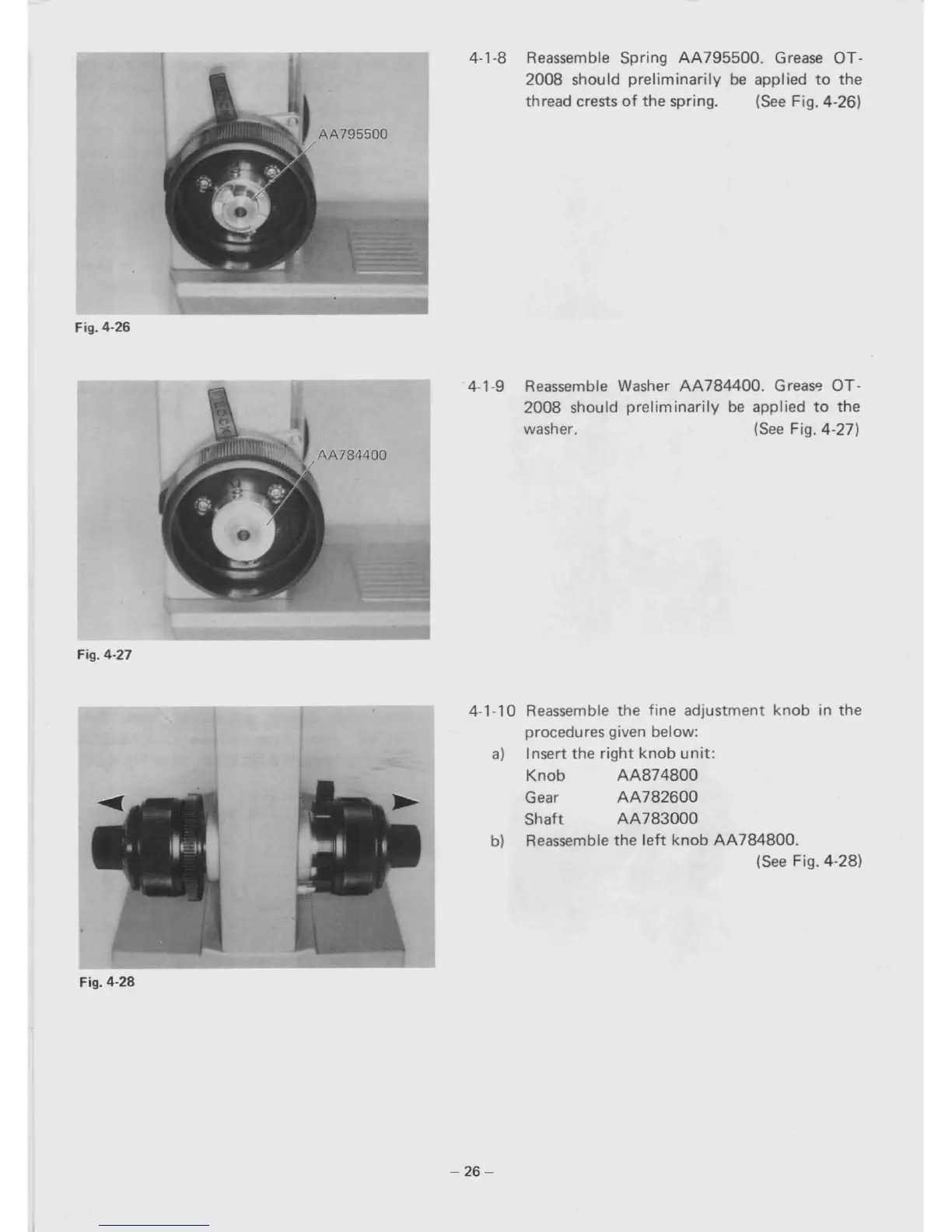

4-1-8 Reassemble Spring AA795500. Grease QT-
2008 should preliminarily be applied to the
thread crests
of the spring. (See Fig. 4·26)
4-1-9 Reassemble Washer
AA784400. Greas~ QT-
2008 should preliminarily be applied to the
washer.
(See Fig. 4-27)
Fig. 4·28
4-1-10 Reassemble the fine adjustment knob in the
procedures given below:
a) Insert the right knob unit:
Knob AA874800
Gear AA782600
Shaft AA 783000
b) Reassemble the left knob AA784800.
(See Fig. 4-28)
- 26-
