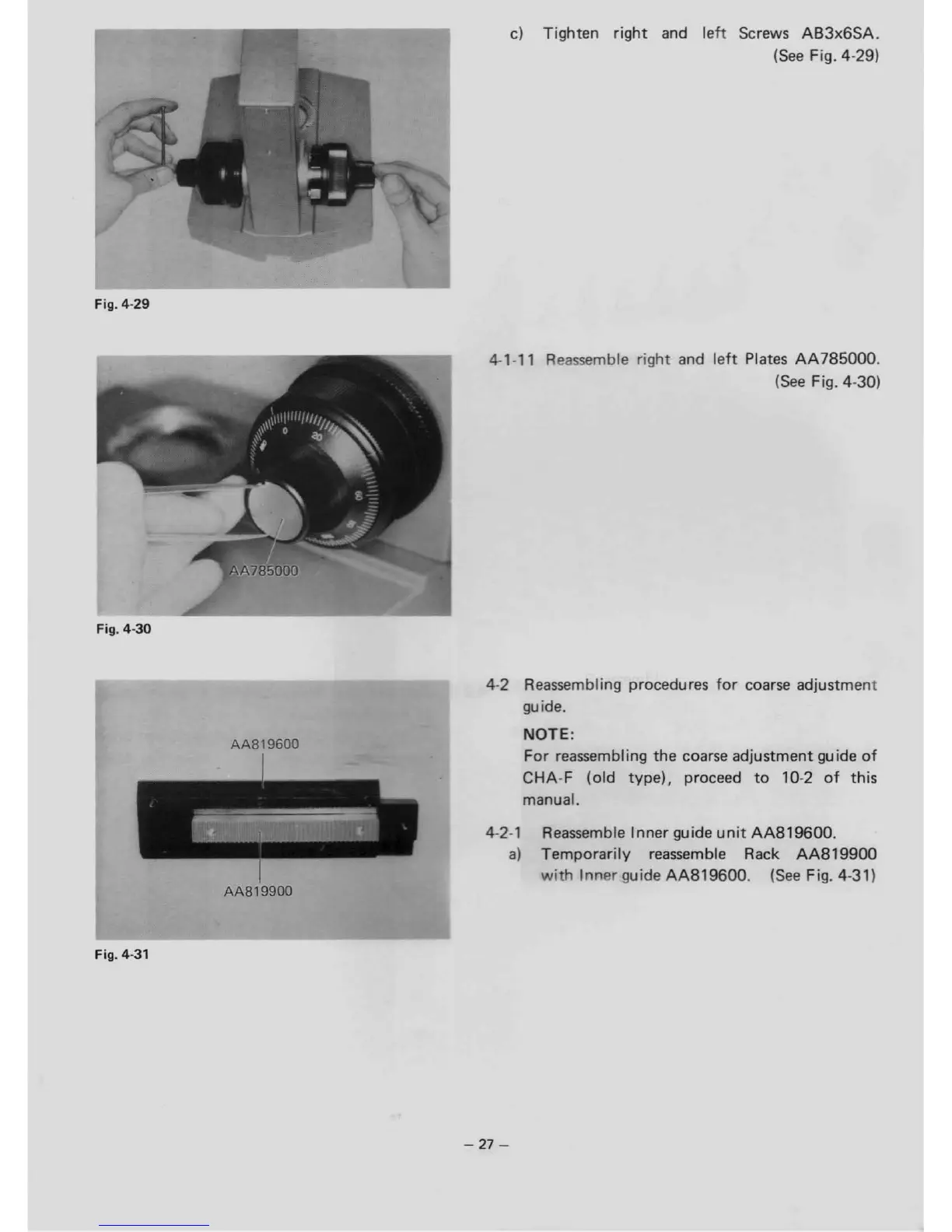

Olympus CH Series - Reassembling Procedures for Coarse Adjustment Guide

Fig. 4-29
Fig. 4-30
c) Tighten right and left Screws AB3x6SA_
(See Fig. 4-29)
4-1-11 Reassemble right and left Plates AA 785000.
(See Fig. 4·30)
4-2 Reassembling procedures for coarse adjustment
guide.
NOTE:
For reassembling the coarse adjustment guide of
CHA-F (old type), proceed to 10-2 of this
manual.
Fig. 4-31
AA819600
AA819900
4-2-1
a)
- 27-
Reassemble Inner guide unit AA819600.
Temporarily reassemble Rack AA819900
with Inner guide AA819600. (See Fig. 4-31)
