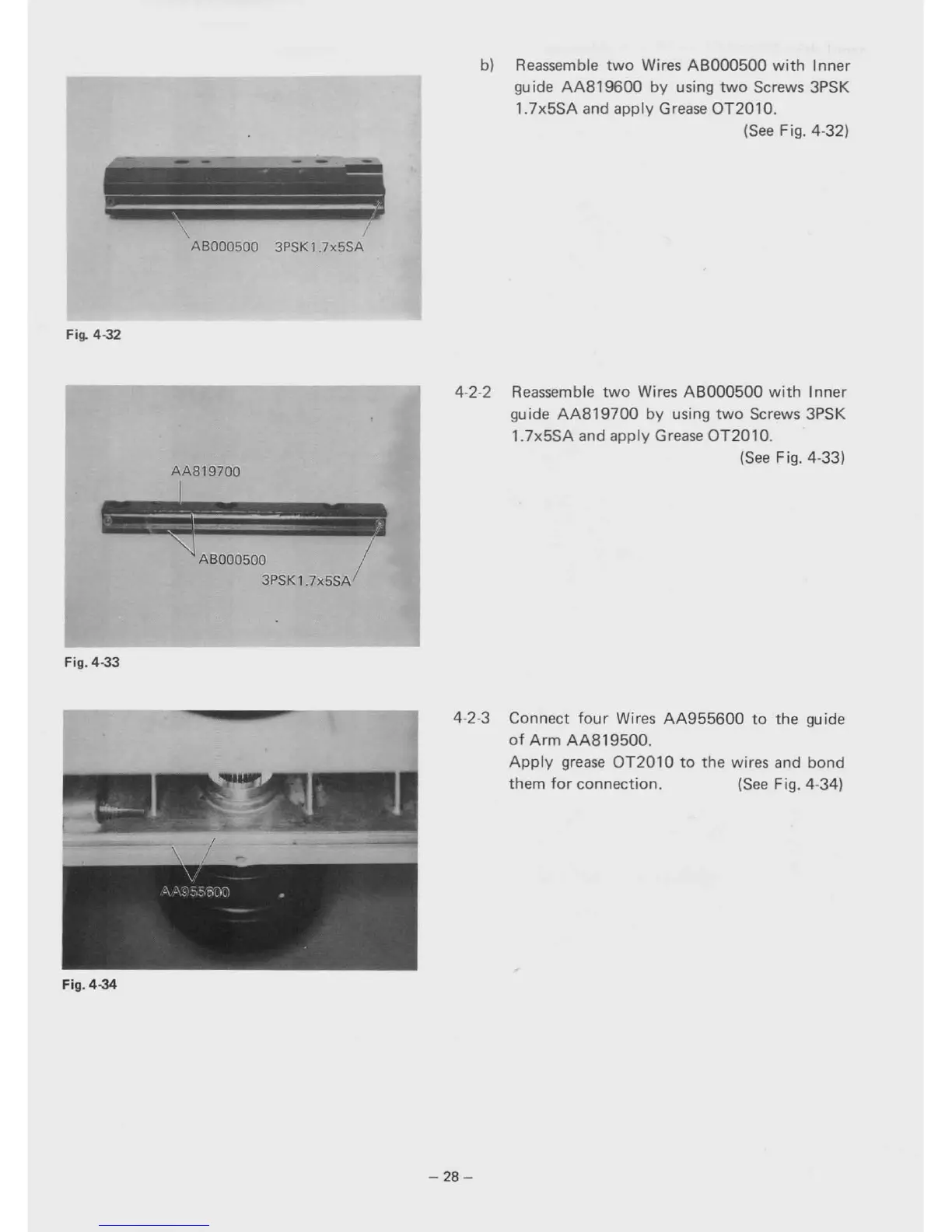

Fig. 4-32
Fig. 4·33
- - --- -------
/
AB000500 3PSK 1.7x5SA
AA819700
AB000500
3PSK1.7x5SA
b) Reassemble two Wires AB000500 with Inner
9uide AA819600 by using two Screws 3PSK
1.7x5SA and apply Grease OT2010.
(See Fig. 4-32)
4-2-2 Reassemble two Wires AB000500 with Inner
guide AA819700 by using two Screws 3PSK
1.7x5SA and apply Grease OT2010.
(See Fig. 4-33)
Fig.4-34
4-2-3 Connect four Wires AA955600 to the guide
of Arm AA819500.
Apply grease OT2010 to the wires and bond
them for connection. (See Fig. 4-34)
- 28-
