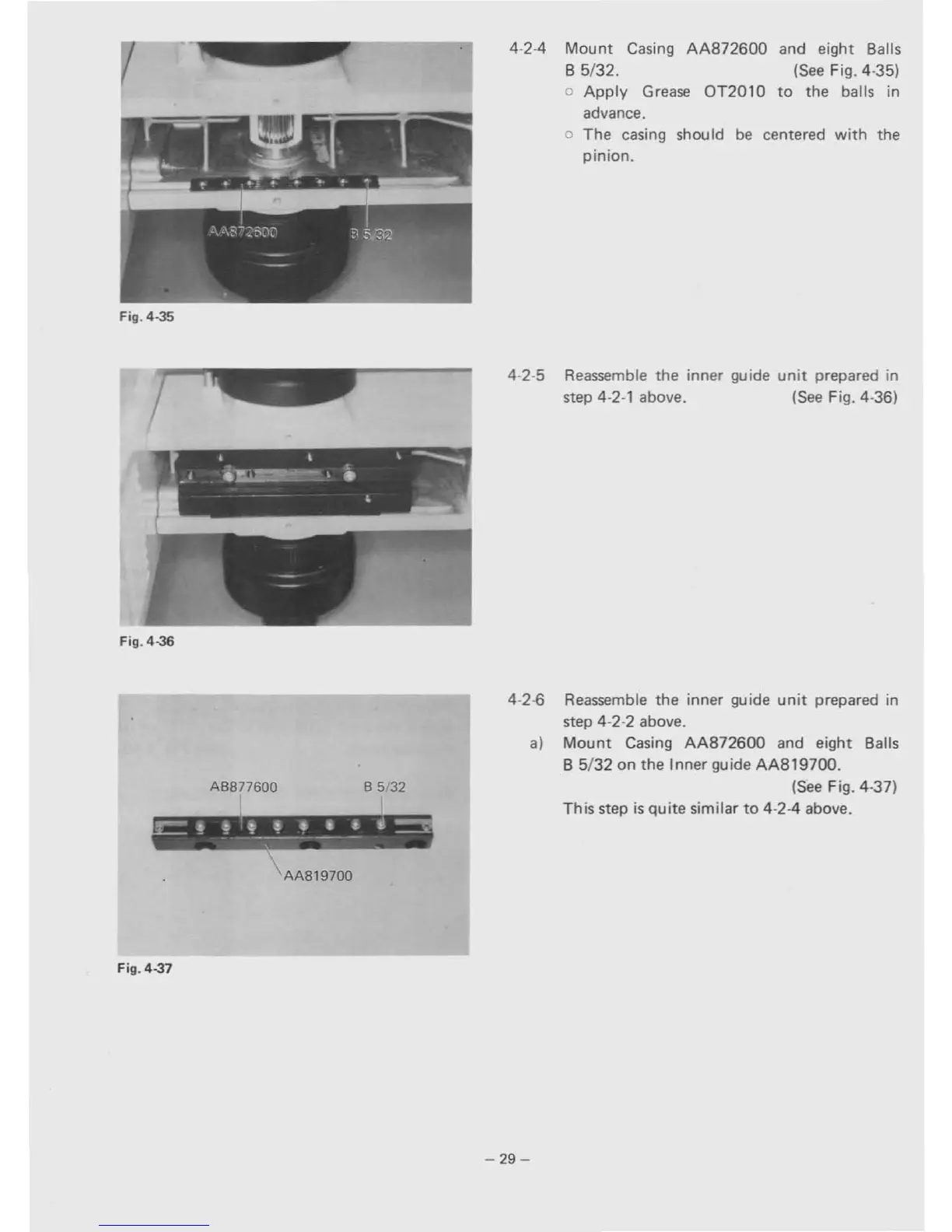

Fig. 4-35
Fig. 4-36
4-2-4 Mount Casing AA872600 and eight Balls
B 5/32.
(See Fig. 4-35)
o
Apply Grease OT2010 to the balls in
advance.
o The casing
shou Id be centered with the
pinion.
4-2·5
Reassemble the inner guide unit prepared in
step
4-2-1 above. (See Fig. 4-36)
Fig. 4-37
ABB77600
AAB19700
B 5/32
4-2-6 Reassemble the inner guide unit prepared in
step 4-2-2
above_
a) Mount Casing AA872600 and eight Balls
B 5/32 on the Inner guide
AA819700.
(See Fig. 4-37)
This step
is quite similar to 4-2-4 above_
- 29-
