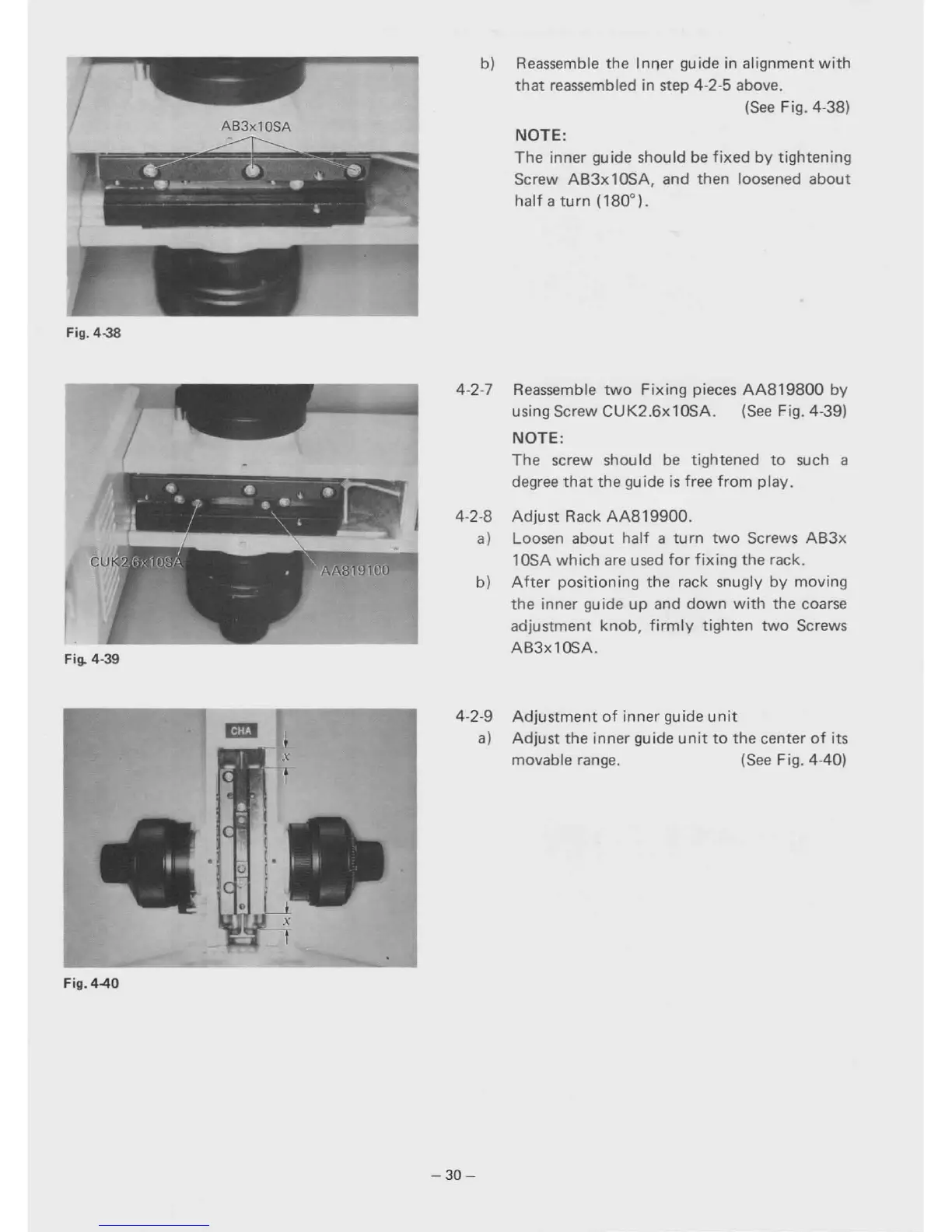

4-2-7 Reassemble two Fixing pieces AA819800 by
using Screw CUK2.6x10SA. (See Fig. 4-391
NOTE:
The screw shou Id be tightened to such a
degree
that the guide is free from play.
AB3xl0SA
Fig.4-38
Fig. 4·39
b)
4-2-8
a)
b)
Reassemble the Inner guide in alignment with
that reassembled in step 4-2-5 above.
(See Fig. 4-38)
NOTE:
The inner guide should be fixed by tightening
Screw
AB3x 1 OSA, and then loosened about
haifa turn (180°).
Adjust Rack AA819900.
Loosen about half a tu rn two Screws AB3x
10SA which are used for fixing the rack.
A
fter positioning the rack snugly by moving
the inner guide
up and down with the coarse
adjustment knob,
firmly tighten two Screws
AB3x1OSA.
Fig.440
4-2-9 Adjustment of inner guide unit
a) Adjust the inner guide unit to the center of its
movable range.
(See Fig. 4-40)
-30-
