Olympus CH Series User Manual

Fig.34
Fig. 3-5
AA819800
. . j-
, ' '1' .. •
.. ' ...
Fig. 3-6

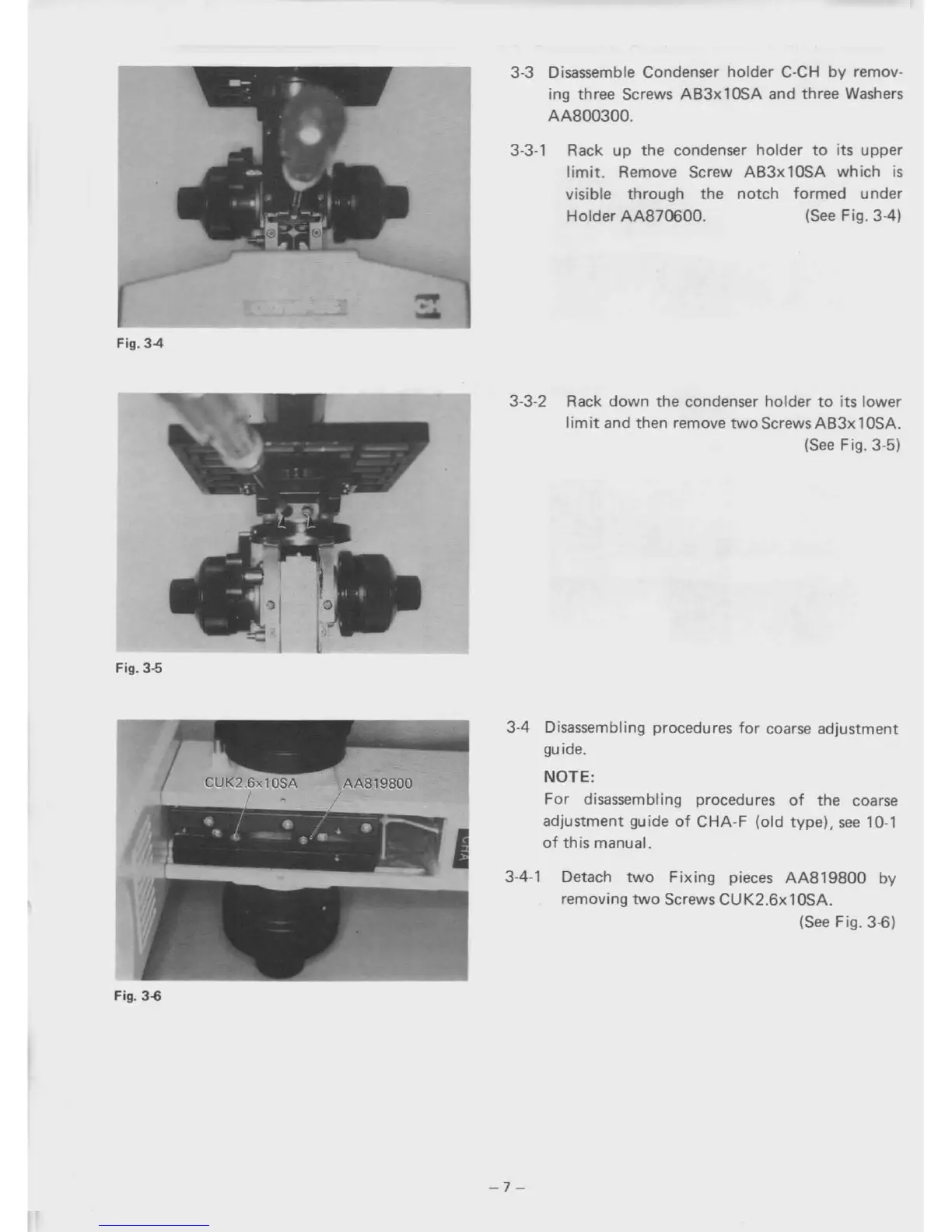

3-3 Disassemble Condenser holder C-CH by remov·
ing three Screws
AB3xlOSA and three Washers
AA800300.
3-3-1 Rack up the condenser holder to its upper
limit. Remove Screw AB3xl0SA which is
visible through the notch formed under
Holder AA870600. (See Fig. 3-4)
3-3-2 Rack
down the condenser holder to its lower
limit and then remove two Screws AB3x 1 OSA.
(See Fig. 3-5)
3-4 Disassembling procedures
for coarse adjustment
guide.
NOTE:
For disassembling procedures
of the coarse
adjustment guide
of CHA-F (old type), see 10-1
of th is manual.
3-4-1 Detach
two Fixing pieces AA819800 by
removing two Screws CU K2.6x 10SA.
(See Fig. 3-6)
-7-

Olympus CH Series Specifications

General

Type	Biological Microscope
Stage	Mechanical stage
Focus	Coaxial coarse and fine focus knobs
Objectives	Plan achromatic objectives (4x, 10x, 40x, 100x)
Eyepiece	10x widefield eyepiece (FN 20)
Condenser	Abbe condenser (NA 1.25)
Magnification Range	40x - 1000x
Head	Binocular or Trinocular
Illumination	Built-in LED illuminator
Power Supply	AC adapter (for halogen or LED illumination)
