Olympus CH Series User Manual

AA819700
AB3xl0SA

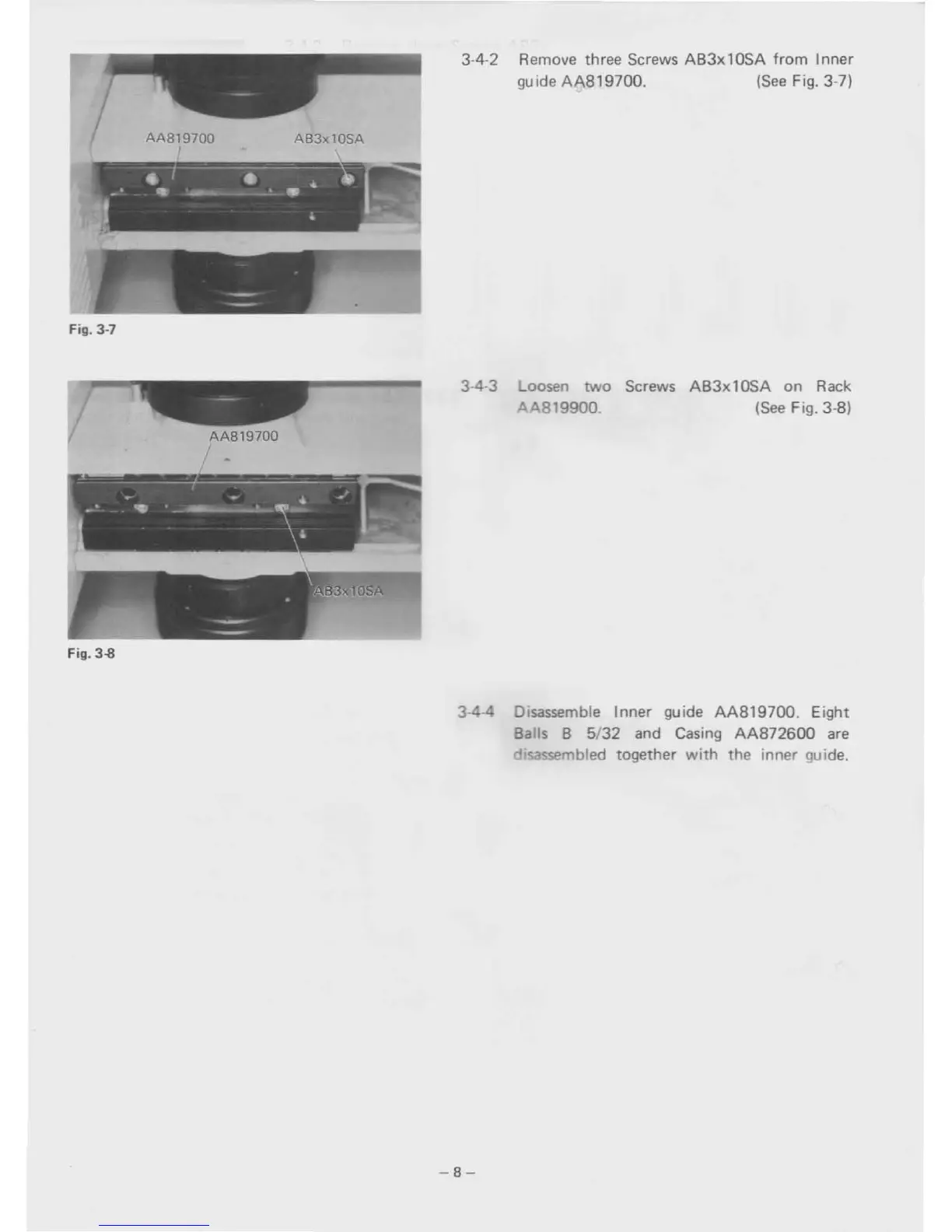

3-4-2 Remove three Screws AB3x 1 OSA from Inner
gu ide AA819700. (See Fig. 3-7)
, -~- -
.' -. - •.• . 1 .
J . ~ .,
"
Fig, 3-7
Fig.
3-8
3-4-3 Loosen two Screws AB3x10SA on Rack
AA819900_ (See Fig. 3-8)
3-4-4 Disassemble Inner guide AA819700. Eight
Bal.s B 5/32 and Casing AA872600 are
isassembled together with the inner guide.
-8-

Olympus CH Series Specifications

General

Type	Biological Microscope
Stage	Mechanical stage
Focus	Coaxial coarse and fine focus knobs
Objectives	Plan achromatic objectives (4x, 10x, 40x, 100x)
Eyepiece	10x widefield eyepiece (FN 20)
Condenser	Abbe condenser (NA 1.25)
Magnification Range	40x - 1000x
Head	Binocular or Trinocular
Illumination	Built-in LED illuminator
Power Supply	AC adapter (for halogen or LED illumination)
