Olympus CH Series User Manual

I
· ,
'-"'"
-,~.. '
,..
,
Fig. 3-9

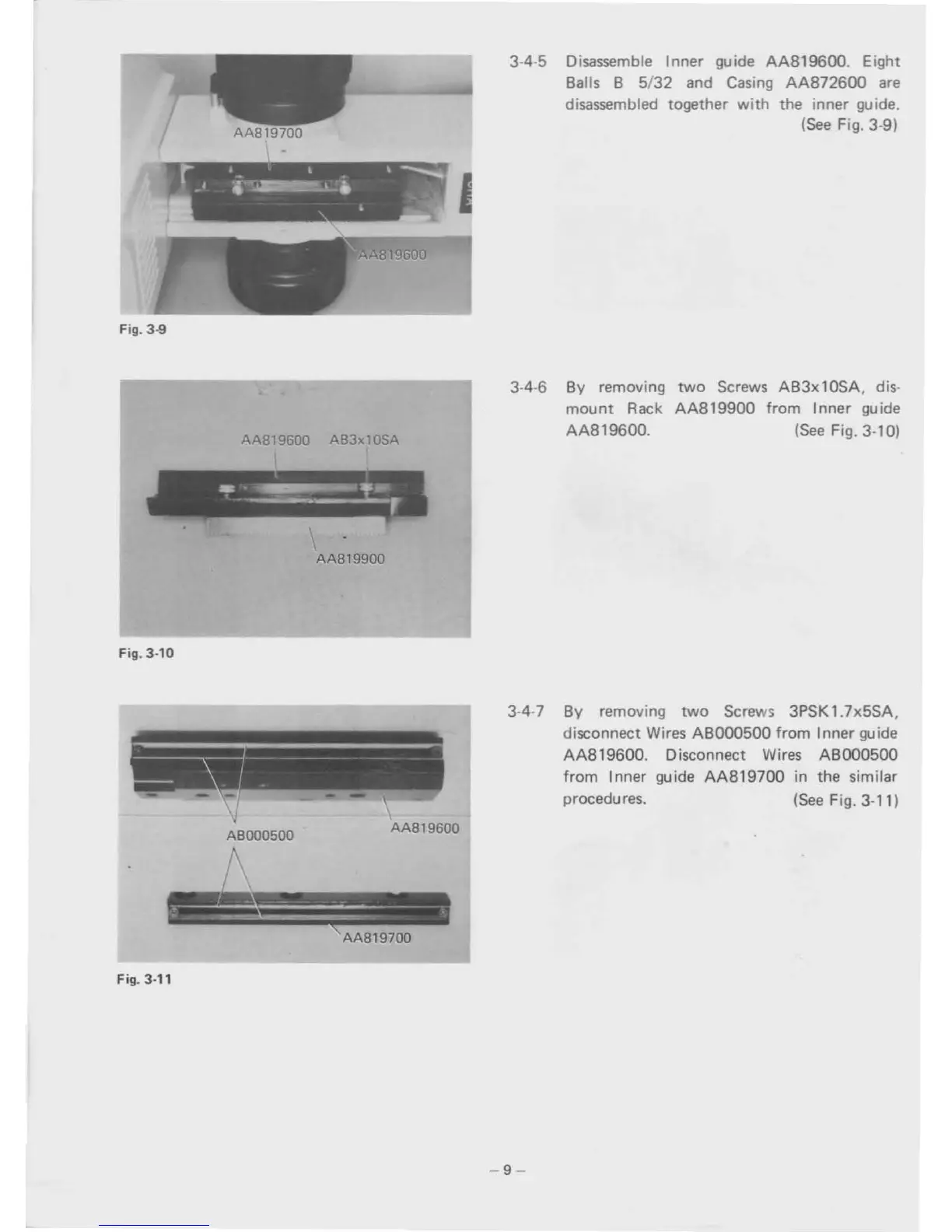

3-4-5 Disassemble Inner guide AA819600. Eight
8alls 8 5/32 and
Casing AA872600 are
disassembled together with the inner guide.
(See Fig. 3-9)
AA819600 AB3xl0SA
AAB19900
Fig. 3-10
3-4-6
By removing
mount Rack
AA819600.
two Screws AB3x10SA. dis·
AA819900 from Inner guide
(See Fig. 3-10)
3·4-7 By removing
two Screws 3PSK 1.7x5SA.
disconnect Wires
ABOOO500 from Inner guide
AA819600. Disconnect Wires ABOO0500
from Inner guide
AA819700 in the similar
procedures.
(See Fig. 3-11)
ABOO0500
AA819600
AA819700
Fig. 3-11
-9-
