Olympus CH Series User Manual

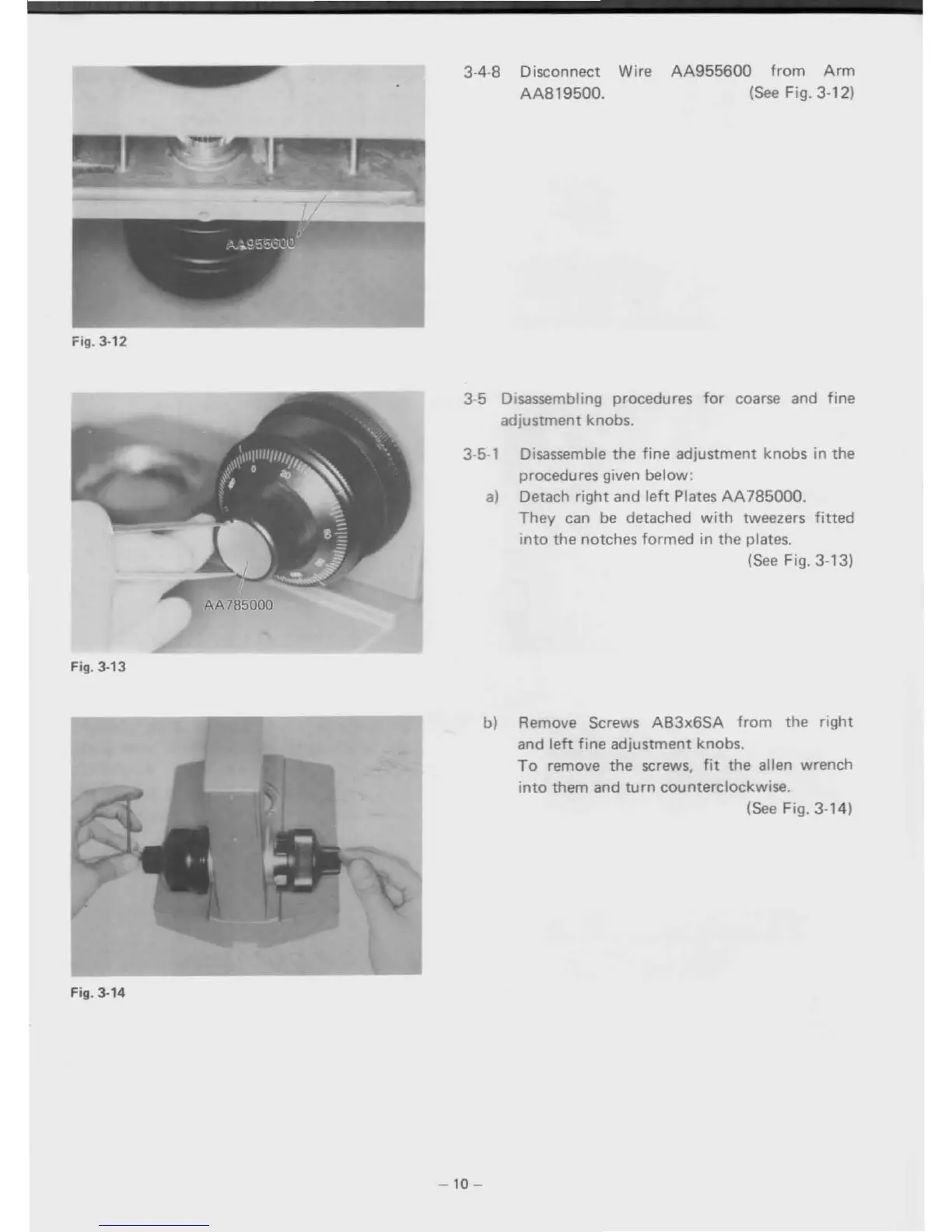

Fig. 3-12
3-4-8 Disconnect Wire AA955600 from Arm
AA819500. (See Fig. 3-12)
Fig. 3-13
AA785000
3-5 Disassembling procedures for coarse and fine
adjustment knobs.
3-5-1 Disassemble
the fine adjustment knobs in the
procedures given below:
a) Detach right and left Plates AA 785000.
They can be detached with tweezers fitted
into the notches formed in the plates.
(See Fig. 3-13)
Fig. 3-14
b) Remove Screws AB3x6SA from the right
and left fine adjustment knobs.
To remove the screws, fit the alien wrench
into them and turn counterclockwise.
(See Fig. 3-14)
-10 -

Olympus CH Series Specifications

General

Type	Biological Microscope
Stage	Mechanical stage
Focus	Coaxial coarse and fine focus knobs
Objectives	Plan achromatic objectives (4x, 10x, 40x, 100x)
Eyepiece	10x widefield eyepiece (FN 20)
Condenser	Abbe condenser (NA 1.25)
Magnification Range	40x - 1000x
Head	Binocular or Trinocular
Illumination	Built-in LED illuminator
Power Supply	AC adapter (for halogen or LED illumination)
