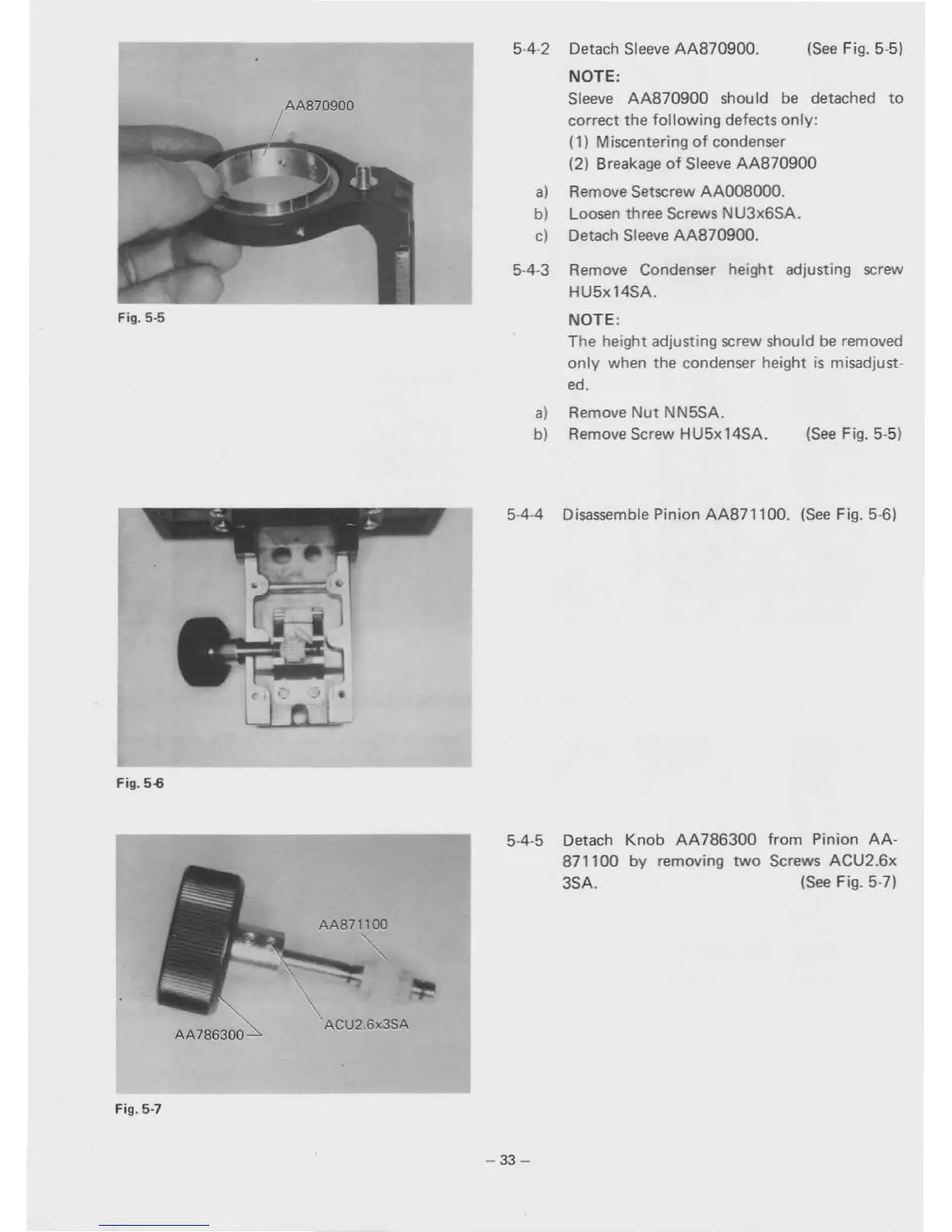

5-4-2 Detach Sleeve AA870900.
(See Fig. 5-5)
(See Fig. 5-5)
NOTE:
Sleeve AA870900 should be detached to
correct the following defects only:
(1) Miscentering
of condenser
(2) Breakage
of Sleeve AA870900
a) Remove Setscrew AA008000.
b) Loosen three Screws NU3x6SA_
c) Detach Sleeve AA870900.
/AA870900
5-4-3 Remove Condenser height adjusting screw
HU5x14SA.
Fig. 5-5 NOTE:
The height adjusting screw should be removed
only when the condenser height is misadjust-
ed.
a) Remove Nut NN5SA.
b) Remove Screw HU5x14SA.
5-4-4 Disassemble Pinion AA871100. (See Fig. 5-6)
Fig. 5-6
AA786300
AA871100
ACU2.6x3SA
5-4-5 Detach Knob AA786300 from Pinion AA-
871100 by removing two Screws ACU2.6x
3SA.
(See Fig. 5-7)
Fig. 5-7
-33 -
