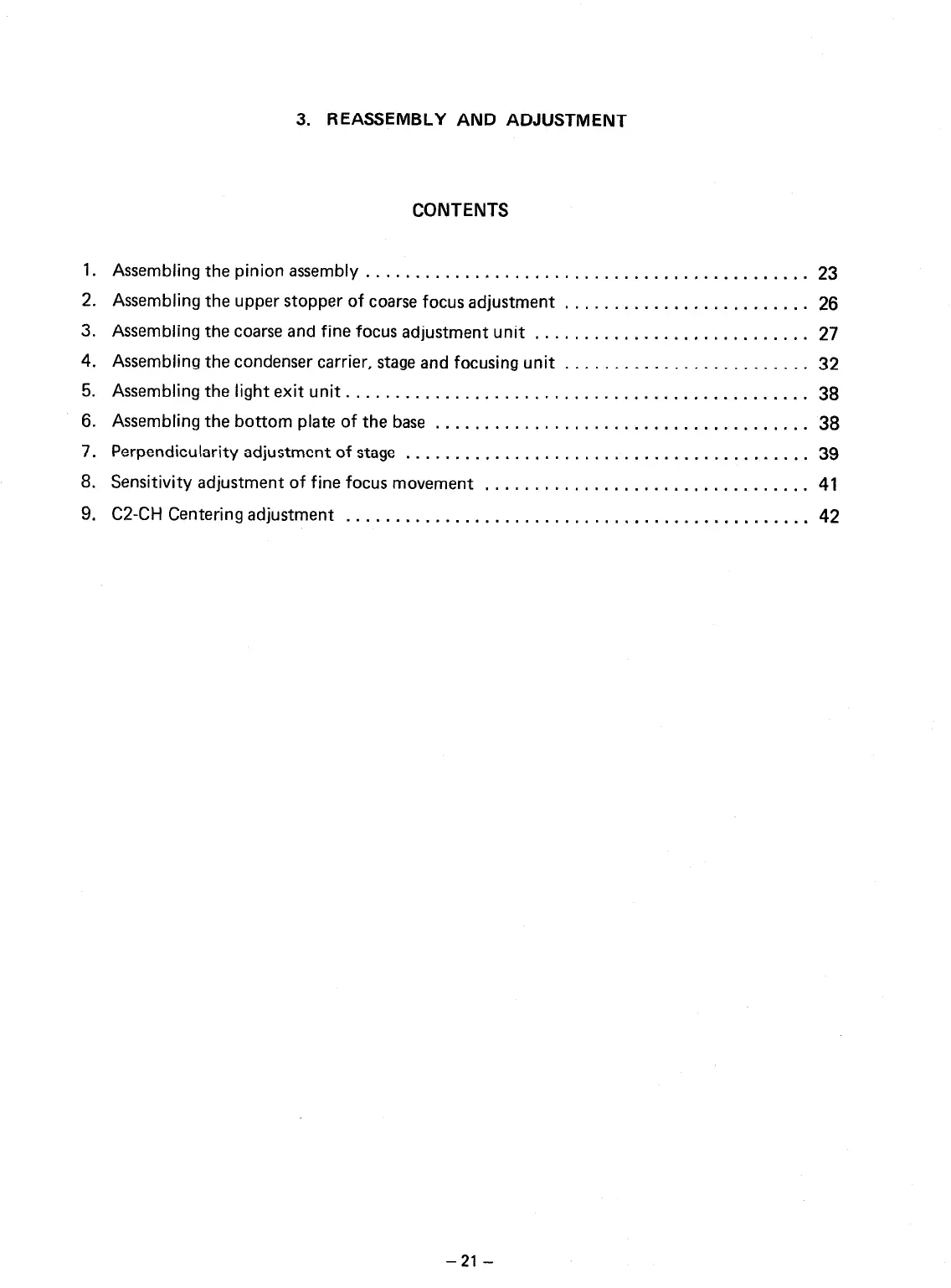

3. REASSEMBLY AND ADJUSTMENT
CONTENTS
1. Assembling the pinion assembly
.............................................
23
2. Assembling the upper stopper of coarse focus adjustment
.........................
26
3. Assembling the coarse and fine focus adjustment unit
............................
27
4. Assembling the condenser carrier, stage and focusing unit
.........................
32
5. Assembling the light exit unit.
..............................................
38
6. Assembling the bottom plate of the base
......................................
38
7. Perpendicularity adjustment of stage
.........................................
39
8. Sensitivity adjustment of fine focus movement
.................................
41
9, C2-CH Centering adjustment
...............................................
42
-21-

Olympus CH2 Series Specifications

General

Type	Biological Microscope
Illumination	Halogen lamp 6V 20W
Stage	Mechanical stage with slide holder
Focus	Coaxial coarse and fine focusing knobs
Condenser	Abbe condenser (NA 1.25) with iris diaphragm
Magnification	40x to 1000x
Head	Binocular or trinocular
Power Supply	AC 100-240V, 50/60Hz
Objective Lenses	Achromat objectives
Eyepiece	WF10x/18mm
