Olympus CH2 Series User Manual

9.

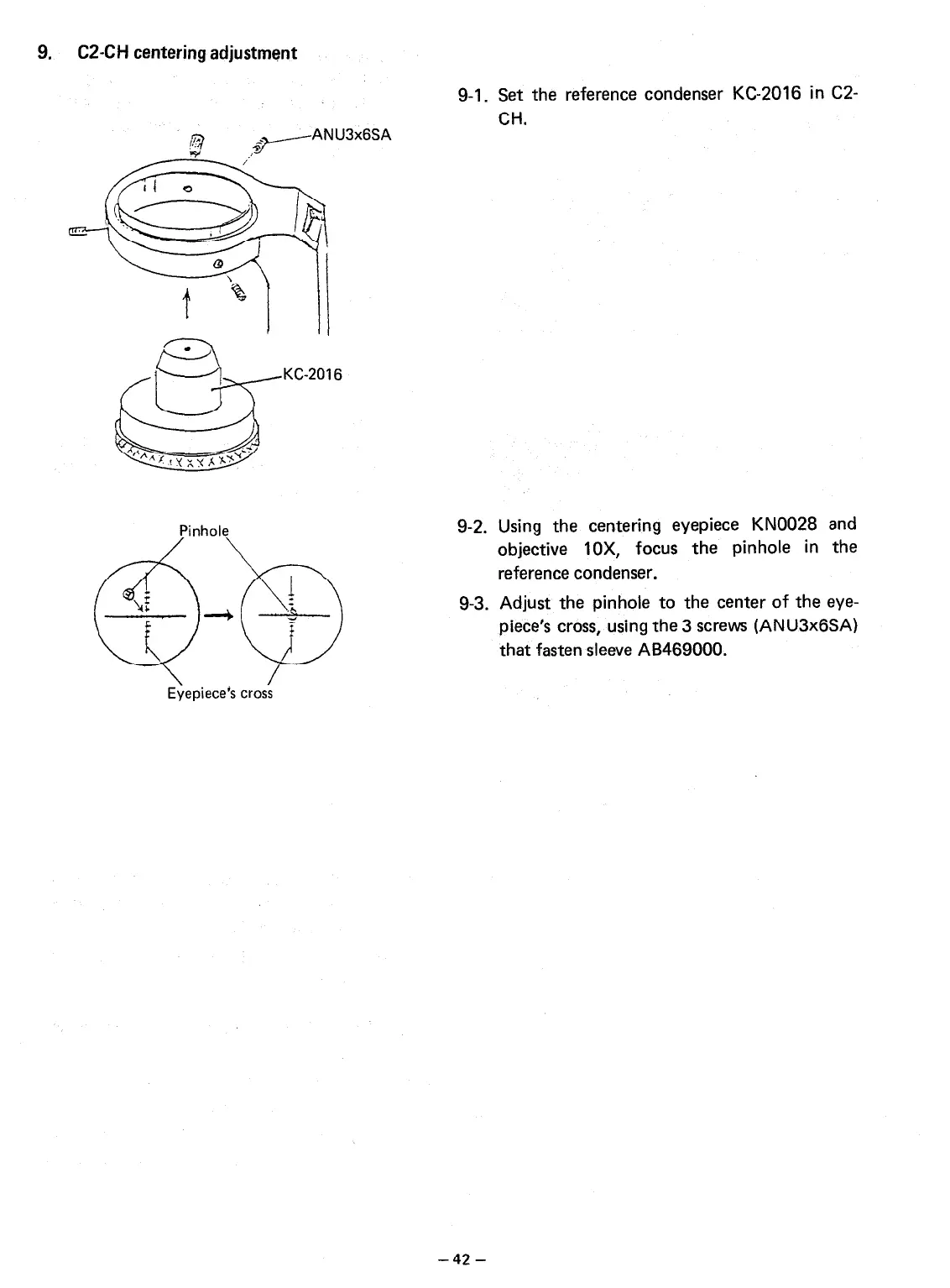

C2-CH centering adjustment
KC-201 6
Pinhole
Eyepiece’s cross
9-l. Set the reference condenser KC-2016 in C2-
CH.
9-2. Using the centering eyepiece KN0028 and
objective 10X, focus the pinhole in the
reference condenser.
9-3. Adjust the pinhole to the center of the eye-
piece’s cross, using the 3 screws (ANU3xGSA)
that fasten sleeve AB469000.
-42-

Olympus CH2 Series Specifications

General

Type	Biological Microscope
Illumination	Halogen lamp 6V 20W
Stage	Mechanical stage with slide holder
Focus	Coaxial coarse and fine focusing knobs
Condenser	Abbe condenser (NA 1.25) with iris diaphragm
Magnification	40x to 1000x
Head	Binocular or trinocular
Power Supply	AC 100-240V, 50/60Hz
Objective Lenses	Achromat objectives
Eyepiece	WF10x/18mm
