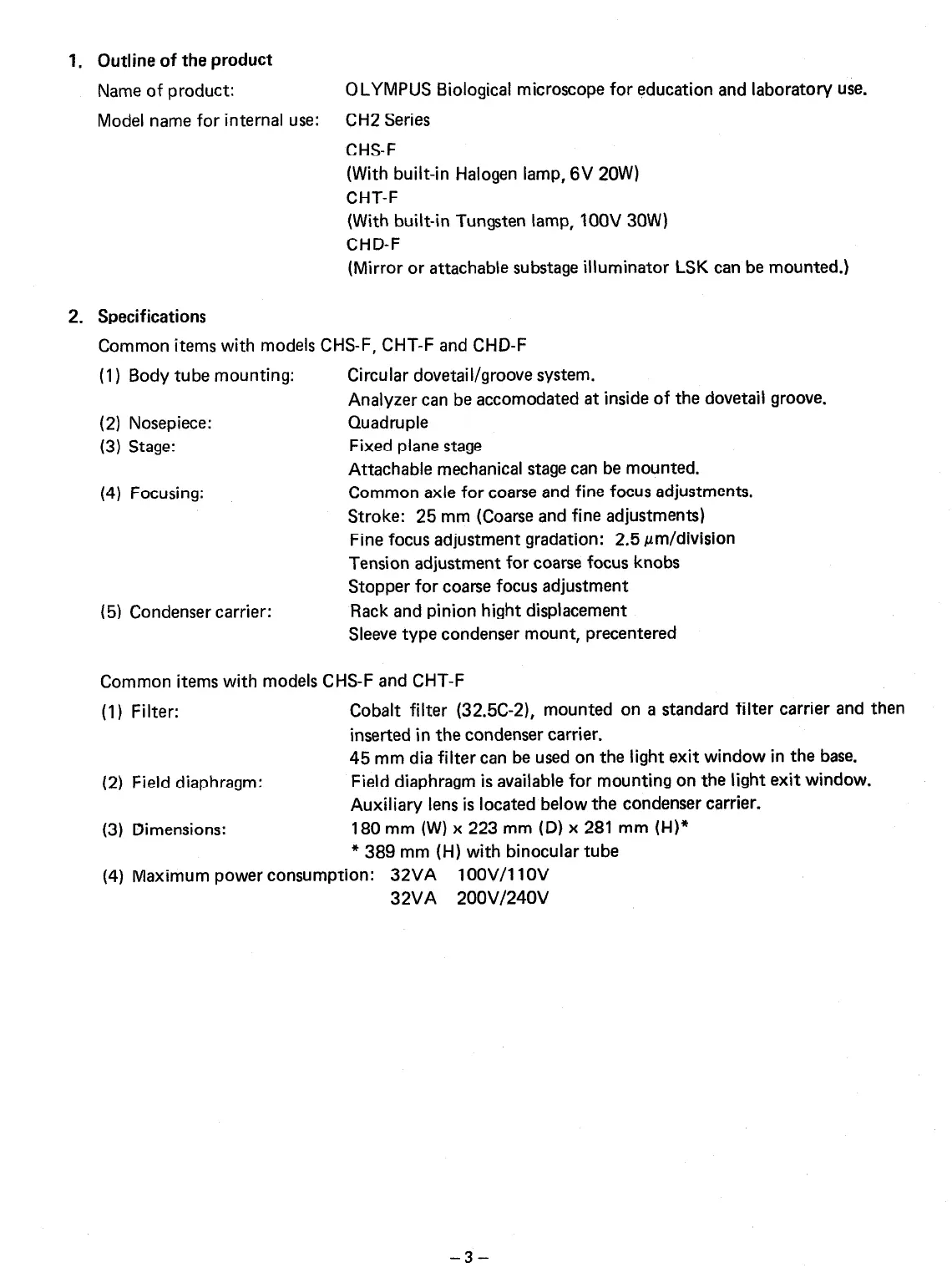

1. Outline of the product
Name of product:
OLYMPUS Biological microscope for education and laboratory use.
Model name for internal use: CH2 Series
CHS-F
(With built-in Halogen lamp, 6V 20W)
CHT-F
(With built-in Tungsten lamp, IOOV 30W)
CHD-F
(Mirror or attachable substage illuminator LSK can be mounted.)
2. Specifications
Common items with models CHS-F, CHT-F and CHD-F
(1) Body tube mounting:
(2) Nosepiece:
(3) Stage:
(4) Focusing:
(5) Condenser carrier:
Circular dovetail/groove system.
Analyzer can be accomodated at inside of the dovetail groove.
Quadruple
Fixed plane stage
Attachable mechanical stage can be mounted.
Common axle for coarse and fine focus adjustments.
Stroke: 25 mm (Coarse and fine adjustments)
Fine focus adjustment gradation: 2.5 pm/division
Tension adjustment for coarse focus knobs
Stopper for coarse focus adjustment
Rack and pinion hight displacement
Sleeve type condenser mount, precentered
Common items with models CHS-F and CHT-F
(1) Filter:
(2) Field diaphragm:
(3) Dimensions:
Cobalt filter (32.5C-2), mounted on a standard filter carrier and then
inserted in the condenser carrier.
45 mm dia filter can be used on the light exit window in the base.
Field diaphragm is available for mounting on the light exit window.
Auxiliary lens is located below the condenser carrier.
180 mm (W) x 223 mm (D) x 281 mm (H)”
* 389 mm (H) with binocular tube
(4) Maximum power consumption: 32VA
1 OOV/l 1 OV
32VA 2OOVf24OV
-3-
