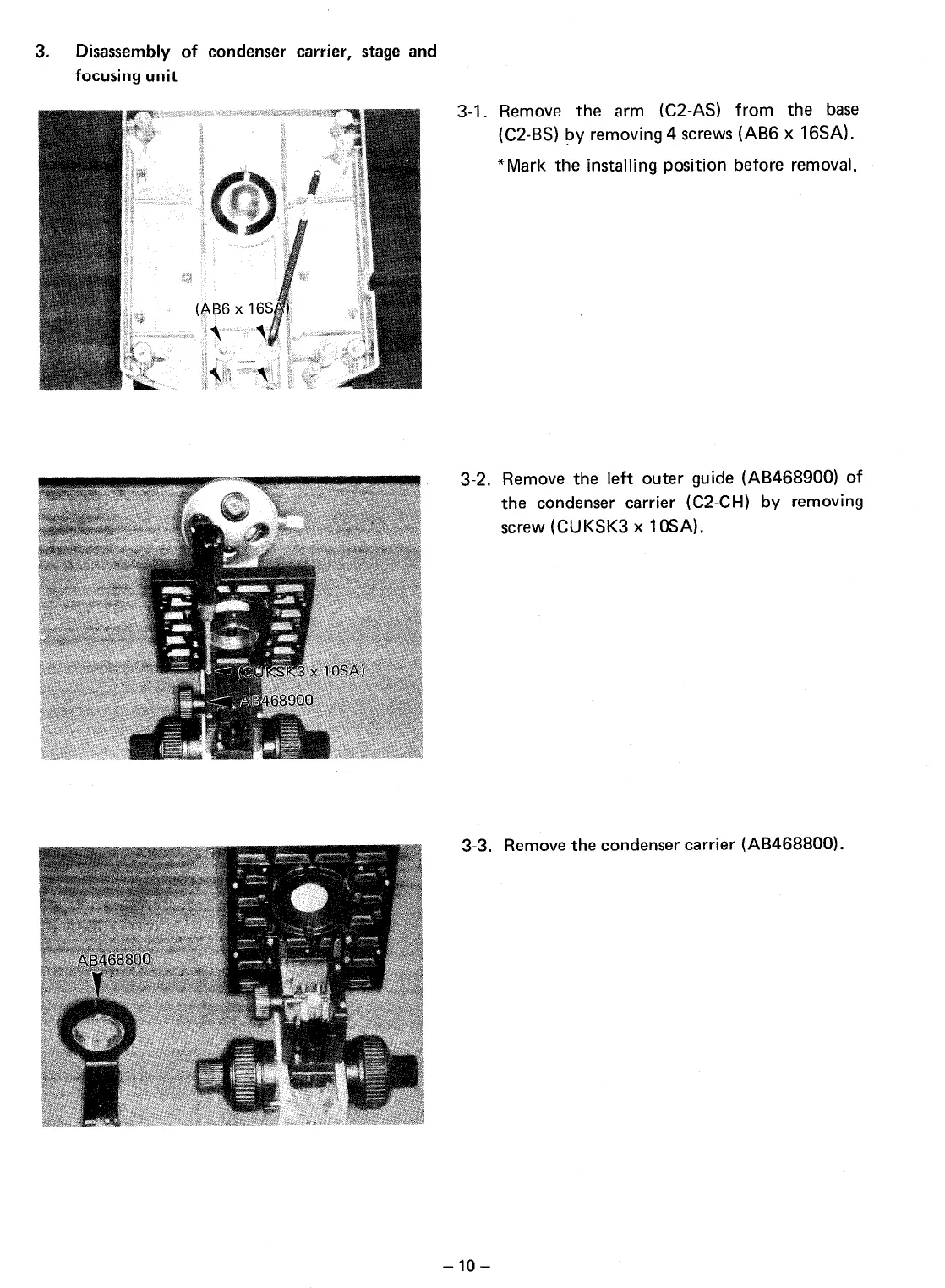

3. Disassembly of condenser carrier, stage and
focusing unit
. .
3-l. Remove the arm (C2-AS) from the base
(C2-BS) by removing 4 screws (AB6 x 16SA).
*Mark the installing position before removal.
3-2.
Remove the left outer guide (AB468900) of
the condenser carrier (C2-CH) by removing
screw (CUKSK3 x 1OSA).
3-3. Remove the condenser carrier (AB468800).
-lO-

Olympus CH2 Series Specifications

General

Type	Biological Microscope
Illumination	Halogen lamp 6V 20W
Stage	Mechanical stage with slide holder
Focus	Coaxial coarse and fine focusing knobs
Condenser	Abbe condenser (NA 1.25) with iris diaphragm
Magnification	40x to 1000x
Head	Binocular or trinocular
Power Supply	AC 100-240V, 50/60Hz
Objective Lenses	Achromat objectives
Eyepiece	WF10x/18mm
