Olympus CH2 Series User Manual

3.

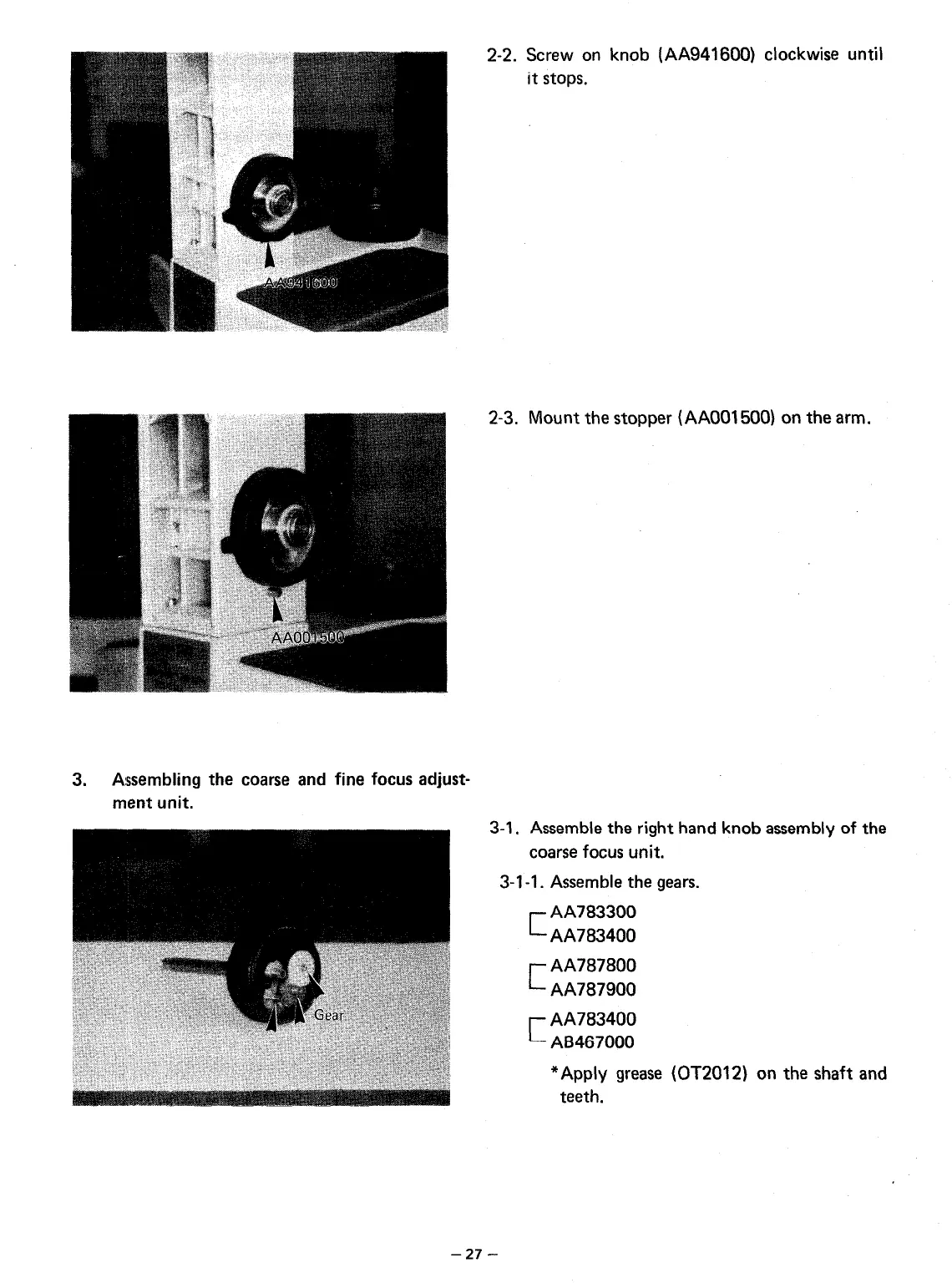

Assembling the coarse and fine focus adjust-
ment unit.
2-2. Screw on knob (AA941600) clockwise until
it stops.
2-3. Mount the stopper
(AA001 500) on the arm.
3-l
3- -1
Assemble the right hand knob assembly of
coarse focus unit.
-1. Assemble the gears.
c
AA783300
AA783400
c
AA787800
AA787900
c
AA783400
AB467000
*Apply grease (OT2012) on the shaft
teeth.
’ the
and
-27 -

Olympus CH2 Series Specifications

General

Type	Biological Microscope
Illumination	Halogen lamp 6V 20W
Stage	Mechanical stage with slide holder
Focus	Coaxial coarse and fine focusing knobs
Condenser	Abbe condenser (NA 1.25) with iris diaphragm
Magnification	40x to 1000x
Head	Binocular or trinocular
Power Supply	AC 100-240V, 50/60Hz
Objective Lenses	Achromat objectives
Eyepiece	WF10x/18mm
