Olympus CH2 Series User Manual

l-2-6.
l-2-7.

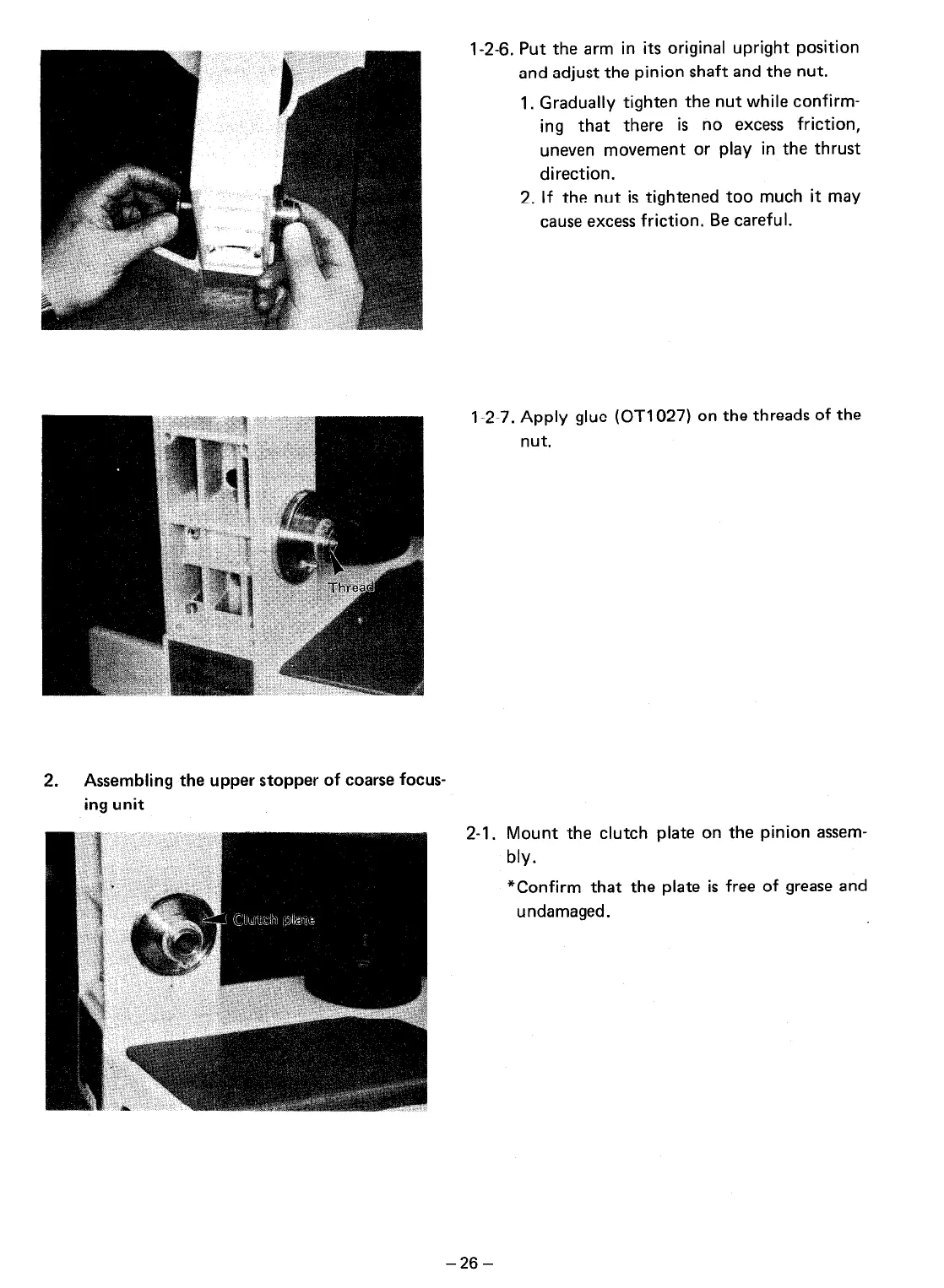

Put the arm in its original upright position
and adjust the pinion shaft and the nut.
1. Gradually tighten the nut while confirm-
ing that there is no excess friction,
uneven movement or play in the thrust
direction.
2. If the nut is tightened too much it may
cause excess friction. Be careful.
Apply glue (OTI 027) on the threads
nut.
of the
2.
Assembling the upper stopper of coarse focus-
ing unit
2-l.
Mount the clu
bly.
*Confirm that
undamaged.
tch plate
on the
pinion assem-
the
1 plate is
free
of grease and
-26-

Olympus CH2 Series Specifications

General

Type	Biological Microscope
Illumination	Halogen lamp 6V 20W
Stage	Mechanical stage with slide holder
Focus	Coaxial coarse and fine focusing knobs
Condenser	Abbe condenser (NA 1.25) with iris diaphragm
Magnification	40x to 1000x
Head	Binocular or trinocular
Power Supply	AC 100-240V, 50/60Hz
Objective Lenses	Achromat objectives
Eyepiece	WF10x/18mm
