Olympus CH2 Series User Manual

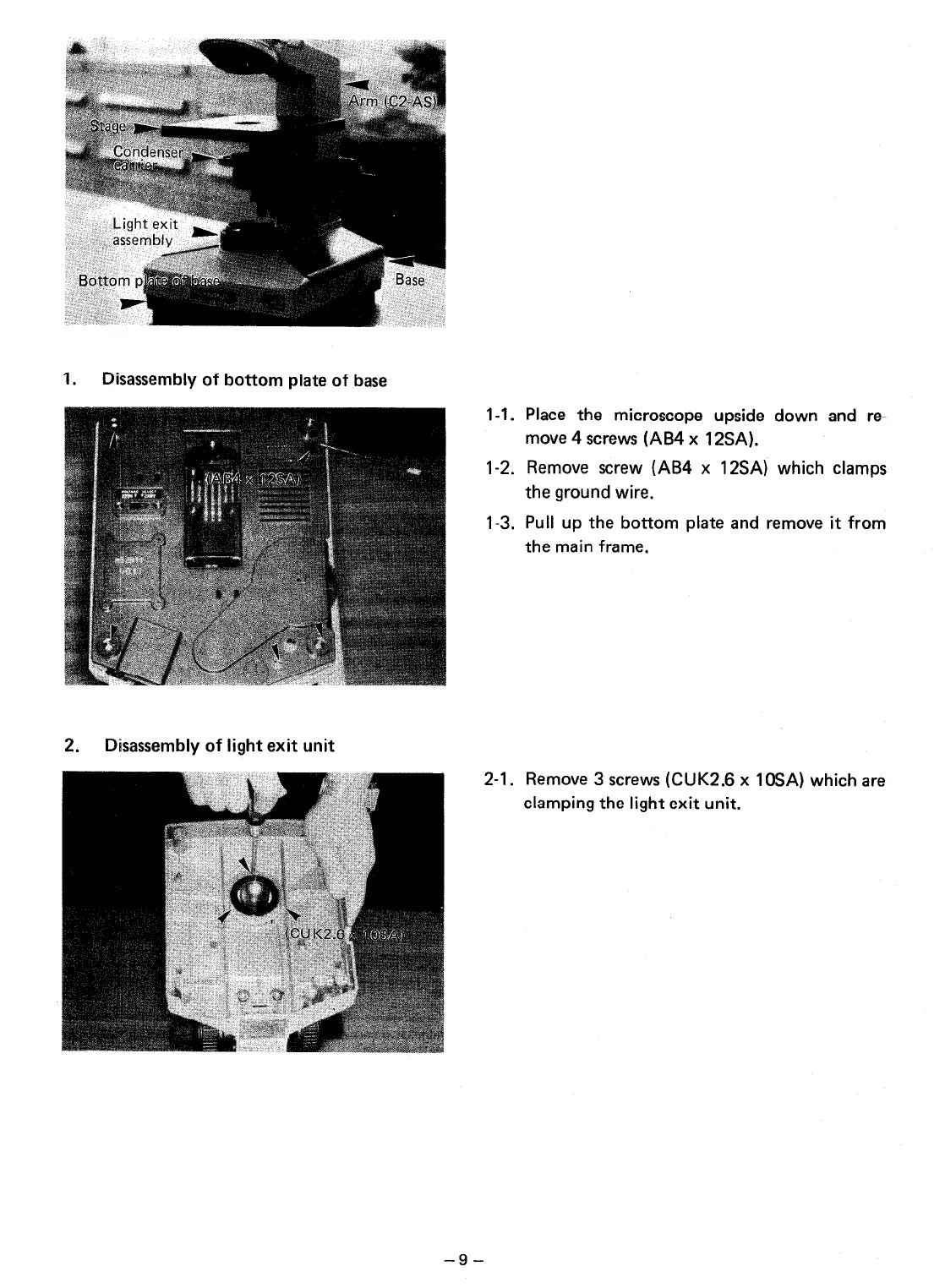

1. Disassembly of bottom plate of base
l-l.
1-2.
l-3.
2.
Disassembly of light exit unit
Place the microscope upside down
move 4 screws (AB4 x 12SA).
Remove screw (AB4 x 12SA) which
the ground wire.
Pull up the bottom plate and remove
the main frame.
and re-
clamps
it from
2-l.
Remove 3 screws (CUK2.6 x 10SA) which are
clamping the light exit unit.
-9-

Olympus CH2 Series Specifications

General

Type	Biological Microscope
Illumination	Halogen lamp 6V 20W
Stage	Mechanical stage with slide holder
Focus	Coaxial coarse and fine focusing knobs
Condenser	Abbe condenser (NA 1.25) with iris diaphragm
Magnification	40x to 1000x
Head	Binocular or trinocular
Power Supply	AC 100-240V, 50/60Hz
Objective Lenses	Achromat objectives
Eyepiece	WF10x/18mm
